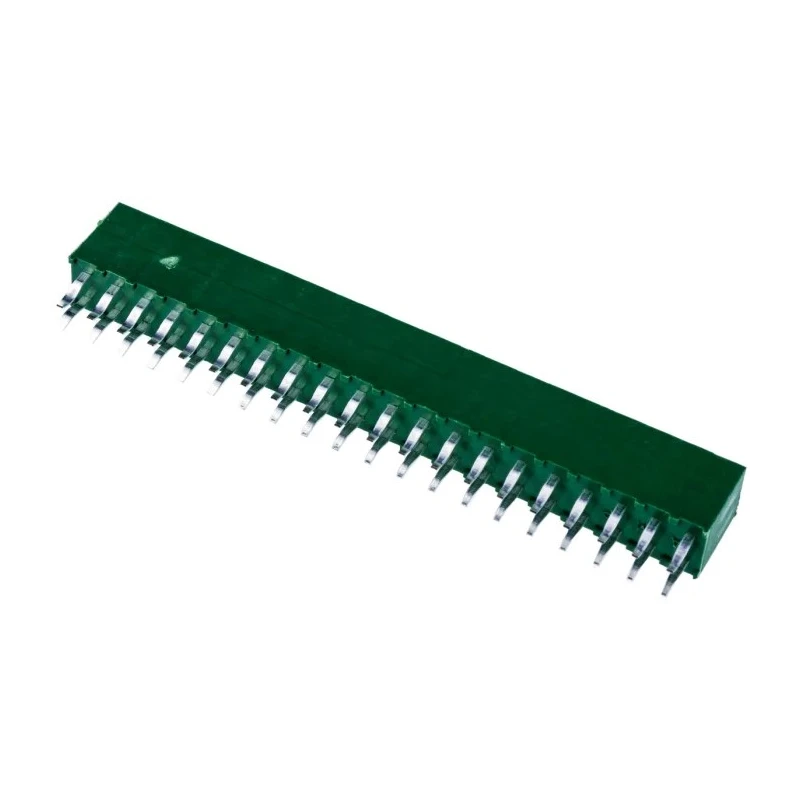

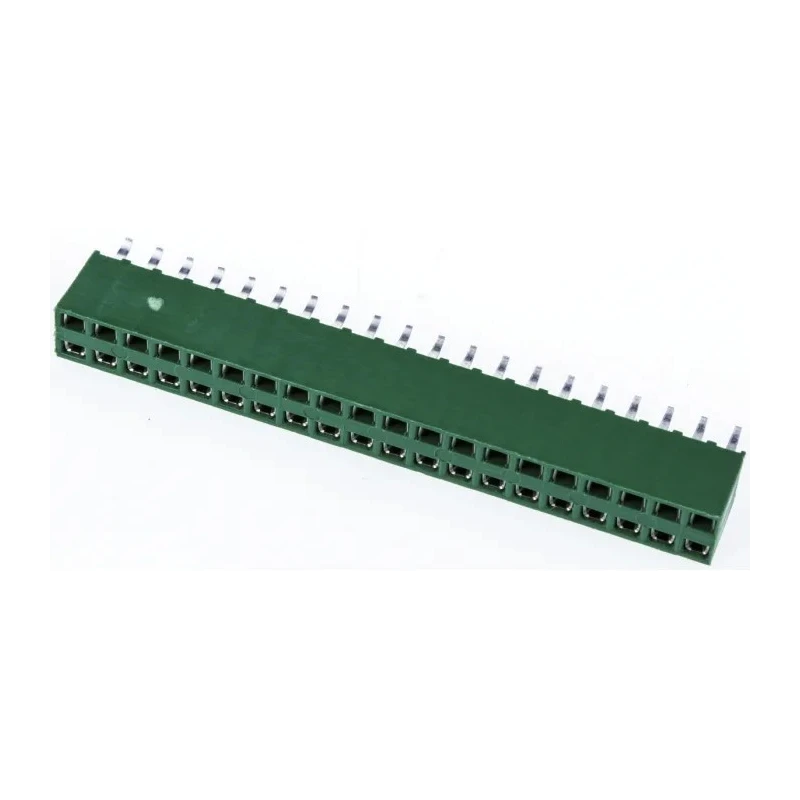

TE Connectivity AMPMODU HV100 Series Straight Through Hole PCB Socket, 40-Contact, 2 Row, 2.54 mm Pitch Solder HV100
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 12A |
| Model | HV100 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Bronze |
| Series | AMPMODU HV100 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- The socket features kinked solder legs to enhance secure retention to the printed circuit board.
- Housing is constructed from UL 94V-0 flame retardant polybutylene terephthalate thermoplastic.
- Supports a current rating of 12 A with gold plated bronze contacts for reliable performance.
- Operating temperature range is from -40°C to 105°C for robust industrial use.
- Offers two mounting heights accommodating stacking applications with top entry orientation.
- Contact gender is female, suitable for mating with standard male pins.
- Complies with RoHS standards ensuring environmental safety and regulatory compliance.
- Designed for vertical mounting applications providing stable mechanical and electrical connections.
Product Description
TE Connectivity HV100 Series Straight Through Hole PCB Socket, model HV100, provides a 40-contact, 2-row board-to-board connection with a 2.54 mm pitch designed for solder termination in industrial electronic circuits.
The socket's kinked legs secure the component firmly to the PCB, while the polybutylene terephthalate housing provides UL 94V-0 flame retardant resistance for safety in demanding environments. It is suitable for applications requiring a current capacity of up to 12 A.
The gold-plated bronze contacts ensure superior conductivity and durability, with the female contact gender enabling reliable mating with male connectors. This series supports operating temperatures ranging between -40°C and 105°C, making it ideal for diverse industrial conditions.
With multiple mounting heights available, these sockets allow for stacking configurations in compact designs, featuring a straight orientation with top entry for ease of installation. The products have RoHS compliance, affirming their environmental responsibility.
This PCB socket series is widely used in industrial electronics manufacturing, automation systems, control boards, and other commercial equipment requiring dependable and durable PCB interconnections.
The kinked solder legs provide secure PCB retention. The housing material is UL 94V-0 flame retardant thermoplastic. Supports a current rating of 12 A with gold plated bronze contacts. Operating temperature range from -40°C to 105°C.
Female contact gender with board-to-board connector system. Available in two mounting heights suitable for stacking. Conforms to RoHS environmental standards. Vertical mounting with straight orientation and top entry type.
Ideal for industrial, laboratory, and commercial PCB mounting applications. Explore the TE Connectivity range at EnvMart for quality PCB Sockets and connectors catered to industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 12 A, making it suitable for various industrial applications.
The operating temperature range for this socket is from -40°C to 105°C, allowing it to function in diverse environments.
The housing is made from polybutylene terephthalate, which is UL 94V-0 flame retardant, and the contacts are made of gold-plated bronze for reliable performance.
This model features 40 contacts arranged in 2 rows, designed for board-to-board connections.
The socket utilizes a solder termination type, suitable for secure mounting on printed circuit boards.
The contact gender of this socket is female, allowing it to mate with standard male pins.
The contact pitch for this model is 2.54 mm, which is a standard spacing for many PCB applications.
This socket has a straight orientation with top entry, facilitating easy installation in vertical mounting applications.
Yes, this model complies with RoHS standards, ensuring it meets environmental safety regulations.
The HV100 series is widely used in industrial electronics manufacturing, automation systems, and control boards requiring dependable PCB interconnections.
This model offers two mounting heights, accommodating stacking applications in compact designs.
The country of origin for this socket is India, reflecting its production location.
