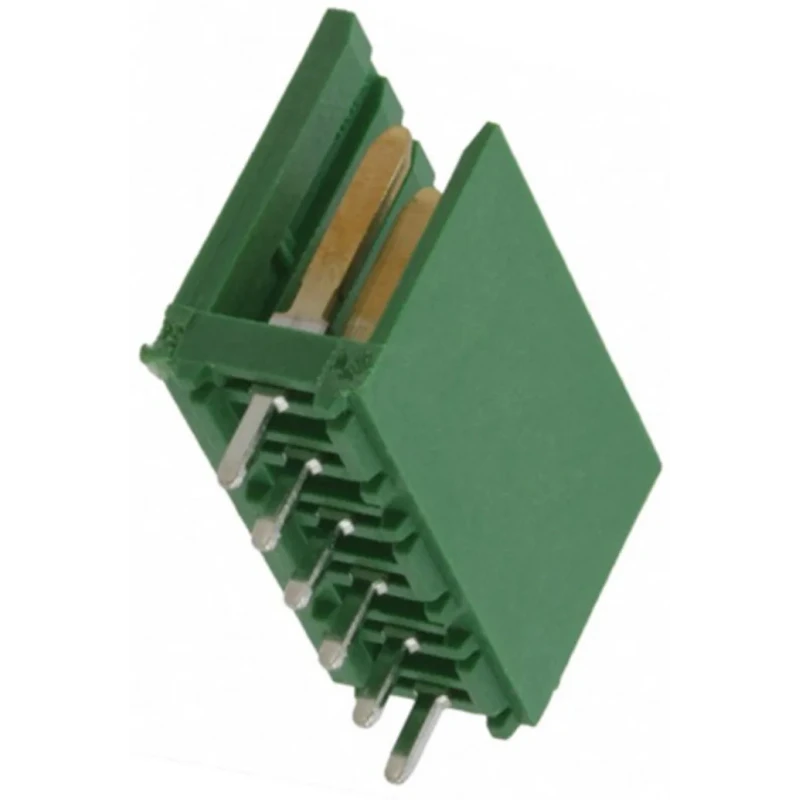

TE Connectivity AMPMODU Mod I Series Straight Through Hole PCB Header, 6 Contacts, 3.96 mm Pitch, 1 Row, Shrouded 280611-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Model | 280611-2 |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polycarbonate |
| Contact Material | Brass |
| Series | AMPMODU MOD I |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.3mm |
Key Features
- Constructed from glass filled polycarbonate housing providing flame retardant properties.
- Features gold-plated brass contacts ensuring reliable electrical conductivity.
- Designed for through-hole mounting with a straight orientation.
- Supports a current rating of 3 A and a voltage rating up to 750 V.
- Operates reliably within temperature range from -65°C to 105°C.
- The tail pins measure 3.3 mm in length for solder termination.
- Shrouding and polarization prevent pin damage and mismating.
- Suitable for industrial control, power supplies, and switchgear applications.
Product Description
TE Connectivity 280611-2 is a high-quality AMPMODU Mod I 3.96 mm pitch shrouded PCB header designed for reliable and rugged electrical interconnections in industrial and electronic equipment.
The connector features a single row with 6 male contacts housed in a glass filled polycarbonate casing that provides flame retardant performance rated to UL 94V-1 standards. The pins are gold plated brass to ensure excellent conductivity and corrosion resistance.
This PCB header is intended for through-hole mounting with a straight orientation and includes a 3.3 mm tail pin length optimized for soldering on printed circuit boards. It supports a maximum current of 3 A and a working voltage of 750 V, making it suitable for demanding power and signal transmission tasks.
Its robust design includes shrouding on two sides to protect contacts from mechanical damage and polarization to prevent incorrect mating with connectors. The operating temperature range spans from -65°C to 105°C, allowing use in harsh environmental conditions.
Glass filled polycarbonate housing with UL 94V-1 flame retardant rating. Gold-plated brass contacts for durable and reliable electrical connections. Single row, 6 contacts, 3.96 mm pitch for precise spacing and fitment. Through-hole mount with straight orientation for stable PCB installation.
Supports currents up to 3 A and voltage up to 750 V. Wide operating temperature range: -65°C to 105°C. Shrouded design with polarization for enhanced pin protection and mating accuracy. Applicable in power supplies, industrial control, and switchgear assemblies.
This connector is part of the TE Connectivity AMPMODU Mod I 3.96 mm interconnect system, which is designed for versatile board-to-board and wire-to-board communication. Its rugged construction and reliable electrical properties make it a preferred choice for commercial, industrial, and manufacturing applications. Explore more components in the PCB Headers category at EnvMart for comprehensive electronic assembly solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this model is 750 V.
It supports a maximum current of 3 A.
The housing is made from glass filled polycarbonate, and the contacts are made from brass with gold plating.
The pitch size is 3.96 mm.
The tail pins measure 3.3 mm in length for solder termination.
It operates reliably within a temperature range from -65°C to 105°C.
This model features 6 male contacts.
Yes, it is designed for through-hole mounting with a straight orientation.
It is suitable for industrial control, power supplies, and switchgear applications.
It is part of the board-to-board and wire-to-board connector system.
Yes, it has a shrouded design to protect contacts from mechanical damage and to prevent mismating.
The country of origin is India.
