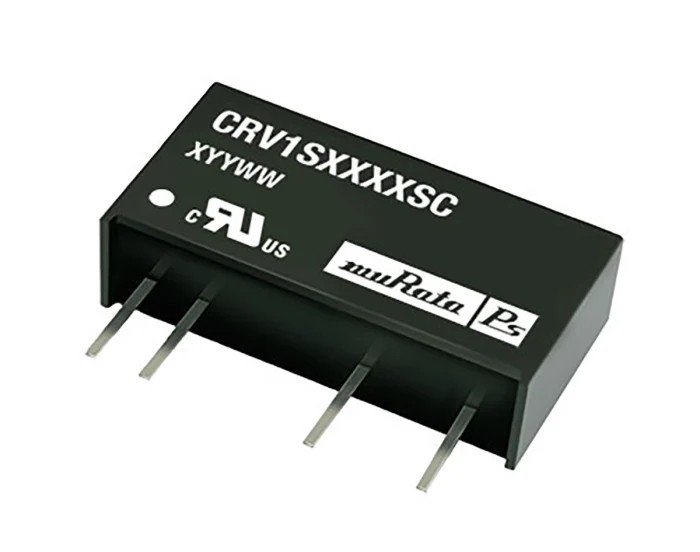

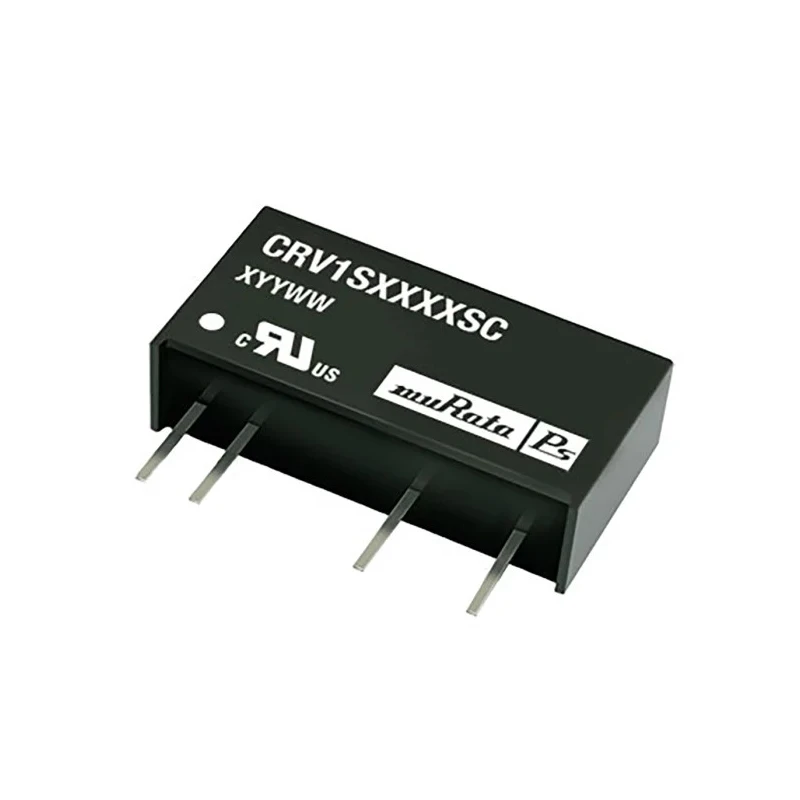

Murata Power Solutions DC/DC Converter Through Hole SIP Package 5V Output 200mA Max Input 5.5V CRV1

Murata Power Solutions CRV1 DC/DC Converter CRV1 is a highly reliable power conversion module designed for industrial and embedded system applications requiring isolated DC voltage conversion. This through-hole SIP package converter provides a stable 5V output voltage at up to 200mA current, sourced from input voltages between 4.5V and 5.5V dc. Its galvanic isolation of 3kV dc enhances system safety and helps to minimize noise interference.

The Murata CRV series utilizes fully encapsulated construction with toroidal magnetic components ensuring durability and high performance under harsh conditions. It features a low ripple and noise output of just 23mV peak-to-peak, which is ideal for sensitive electronics.

This single output converter uses an industry-standard 7-pin SIP (Single Inline Package) form factor, facilitating straightforward integration into printed circuit boards through through-hole mounting technology.

The CRV1 converter operates efficiently at 70% efficiency rating, with a power capacity of 1 watt. It is rated for industrial use with an operating temperature range from -40°C to 85°C, suitable for a wide range of industrial environments.

Compact in size, it measures 19.5 mm in length, 10 mm depth, and 6 mm width, with a light weight of about 2.1 grams, which makes it suitable for space-constrained applications. Murata Power Solutions ensures compliance with important certifications including UL, RoHS, and CRE standards, underlining its commitment to quality and environmental safety.

Operates on input voltage of 4.5V to 5.5V dc. 5V output voltage at 200mA maximum current. 3kV dc galvanic isolation voltage for enhanced safety. Low ripple and noise output of 23mV Pk-Pk. Industry-standard 7-pin SIP package through hole mount.

Power rating of 1 watt at 70% efficiency. Operating temperature range from -40°C to 85°C. Compact dimensions of 19.5 x 10 x 6 mm with weight 2.1g. Certified to UL, RoHS, and CRE standards. Mean time between failures of approximately 4.24 million hours.

This DC/DC converter is ideal for industrial, control systems, instrumentation, and embedded power applications requiring stable isolated voltage conversion with compact packaging and high reliability.
