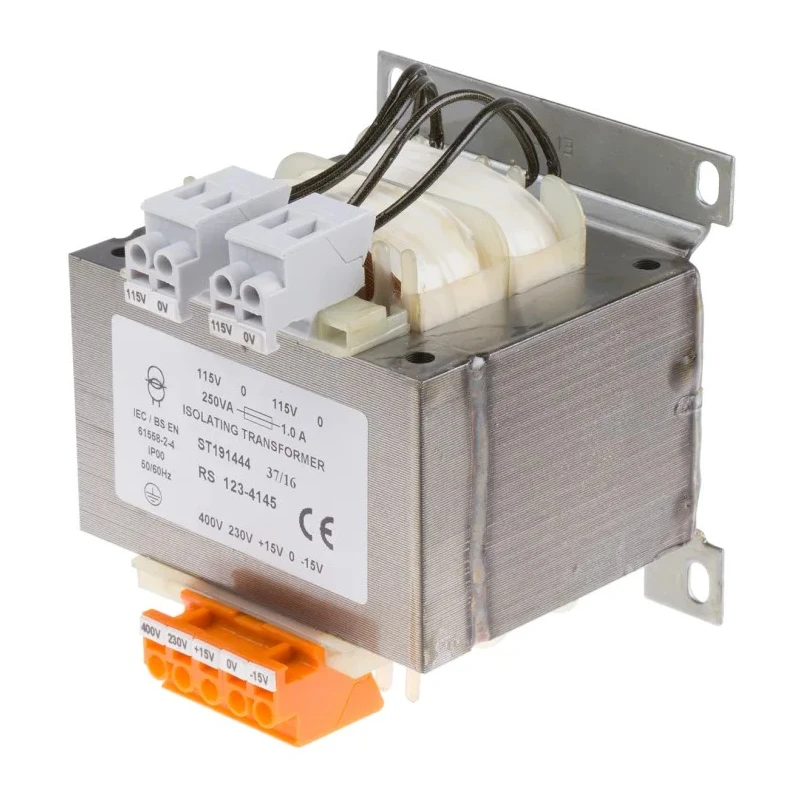

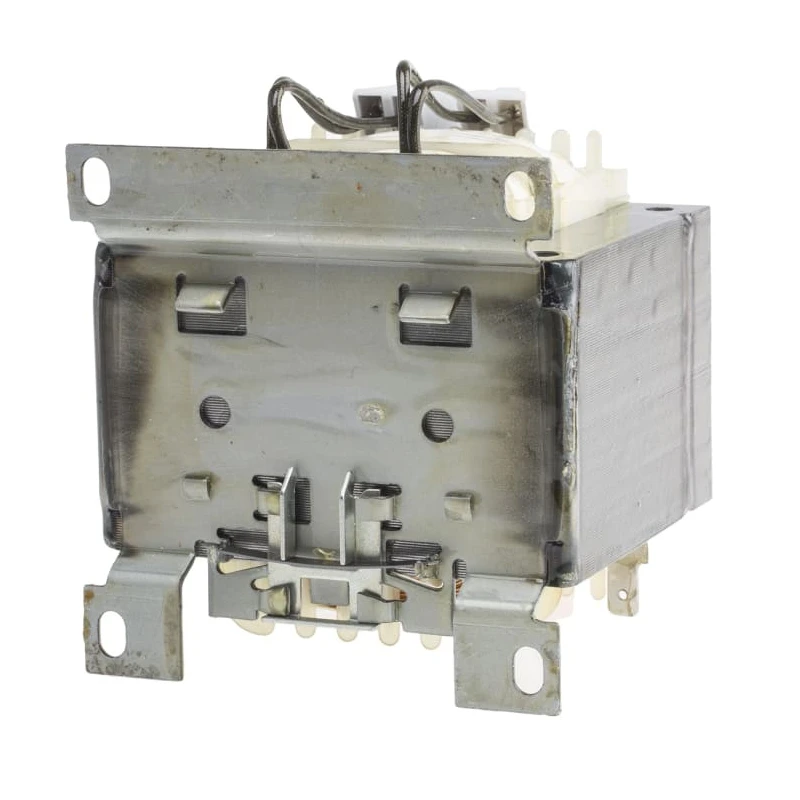

RS PRO 250 VA DIN Rail Transformer, 230 V ac, 400 V ac Primary, 2 x 115 V ac Secondary 123-4145

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 250 VA DIN Rail Transformer, 230 V ac, 400 V ac Primary, 2 x 115 V ac Secondary 123-4145

Name: RS PRO 250 VA DIN Rail Transformer, 230 V ac, 400 V ac Primary, 2 x 115 V ac Secondary 123-4145
Brand: RS PRO
SKU: 192133
Price: 253.74 USD
Availability: InStock



Category DIN Rail Transformer Brand RS PRO Condition New

Specifications

Country of Origin	Poland
Brand	RS PRO
Length	96mm
Model	123-4145
Depth	110mm
Gross Weight	26kg
Width	105mm
Mount Type	DIN Rail
Maximum Operating Temperature	130°C
Number of outputs	2
Primary Voltage	230 V ac, 400 V ac
Secondary Voltage	2 x 115 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz
Schneider Electric 250VA 1 Output Chassis Mounting Transformer, 230V acBrand	Schneider Electric

Key Features

This transformer features two secondary outputs rated at 115 V ac each.
It supports primary voltages of 230 V ac and 400 V ac for versatile application.
The compact unit mounts securely on DIN rails for easy installation.
Designed to operate within a frequency range of 50 Hz to 60 Hz.
Constructed to endure maximum operating temperatures up to 130°C for reliability.
It conforms to international standards including ASNZS 61558 and IEC standards.
This unit offers low noise lamination and includes an earth terminal for safety.
The transformer is varnish impregnated to enhance durability and efficiency.

Product Description

RS PRO 123-4145 DIN Rail Transformer is a robust and versatile 250 VA chassis mounting transformer designed for industrial and commercial electrical applications. The transformer features primary voltages of 230 V ac and 400 V ac, with dual secondary voltages of 2 x 115 V ac, suitable for a wide range of power supply needs. Mounted conveniently on DIN rails, it offers ease of installation and integration into electrical panels.

This single-phase transformer is constructed with a second section bobbin providing complete separation between primary and secondary windings, ensuring high safety and isolation performance. The low noise laminations contribute to quieter operation in sensitive environments. An earth terminal is included for enhanced safety compliance.

The unit is engineered for durability with varnish impregnated coils and is designed to operate safely at temperatures up to 130°C. It complies with several rigorous standards, including ASNZS 61558..4, ASNZS 61558.1, IECBSEN 615584, ASNZS 61558..6, IECBSEN 615581, CE, and RoHS, ensuring reliability and adherence to industry safety requirements.

This transformer features two secondary outputs rated at 115 V ac each. It supports primary voltages of 230 V ac and 400 V ac for versatile application. The compact unit mounts securely on DIN rails for easy installation.

Designed to operate within a frequency range of 50 Hz to 60 Hz. Constructed to endure maximum operating temperatures up to 130°C for reliability. It conforms to international standards including ASNZS 61558 and IEC standards.

This unit offers low noise lamination and includes an earth terminal for safety. The transformer is varnish impregnated to enhance durability and efficiency. It provides full electrical and flash testing to ensure product quality.

Manufactured in Poland with high-quality materials ensuring robust construction.

Typical industrial, electronic components, power supply, manufacturing, and electrical distribution uses apply to this RS PRO DIN Rail Transformer. It delivers dependable voltage transformation for a wide range of control and power applications. Explore EnvMart’s complete lineup of high-quality RS PRO transformers for your technical and engineering projects.
