TDK 3-Phase Chassis Mount EMC Filter Terminal Block 520V AC 45A 50Hz 60Hz B86301U0045R000

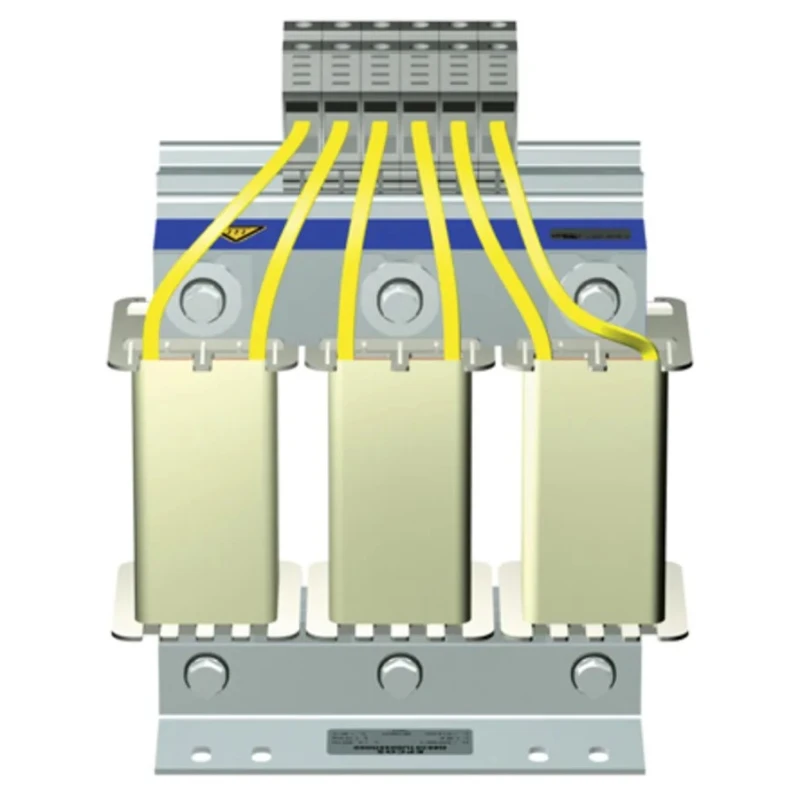

TDK B86301U0045R000 is a high-performance 3-Phase chassis mount EMC filter engineered for applications requiring up to 520V AC and 45A continuous current at 50Hz and 60Hz frequencies. This EMC filter integrates a terminal block termination style, allowing easy and secure electrical connections suitable for motor cables and full load operations.

The B86301U Series product offers natural cooling without additional cooling mechanisms, ensuring reliable operation under full load conditions. Its compact size with dimensions of 180mm in length, 210mm in height, and 130mm in depth makes it easy to install in industrial enclosures or control panels.

Operating temperature ranges from -25°C up to 100°C, delivering durability across various environmental conditions commonly found in industrial, manufacturing, HVAC, pump, and elevator applications. The filter features a resistance value of 5.8 milliohms and an inductance of 130 microhenries, effectively reducing dv/dt and mitigating voltage stress on motor systems, enhancing longevity and operational reliability.

This series complies with RoHS standards and is optimized for use in frequency converters for motor drives in traction, conveyer systems, HVAC systems, and other industrial machinery.

The filter's robust construction and certified insulation system (T-EIS-CF1 UL Approved) ensure safety and high performance in electrical line filtering tasks. Constructed for 3-phase electrical systems with terminal block termination style.

Rated for maximum voltage of 520V AC and maximum continuous current of 45A. Chassis mount type allowing secure installation and easy integration. Designed for operating frequencies of 50 and 60 Hz suitable for diverse industrial environments.

Features natural cooling with power loss of 45W to maintain performance during load. Compact dimensions of 180mm length, 210mm height, and 130mm depth. Operating temperature range from -25°C to 100°C ensuring durability.

Resistance of 5.8 milliohms and inductance of 130 microhenries for optimized filtering. Designed to reduce dv/dt and voltage stress on motors for extended equipment life.

This TDK EMC filter is ideal for industrial, manufacturing, HVAC, and commercial electrical applications requiring robust dv/dt output reactors. Explore more EMC Filters and related products for your electrical component needs on EnvMart.
