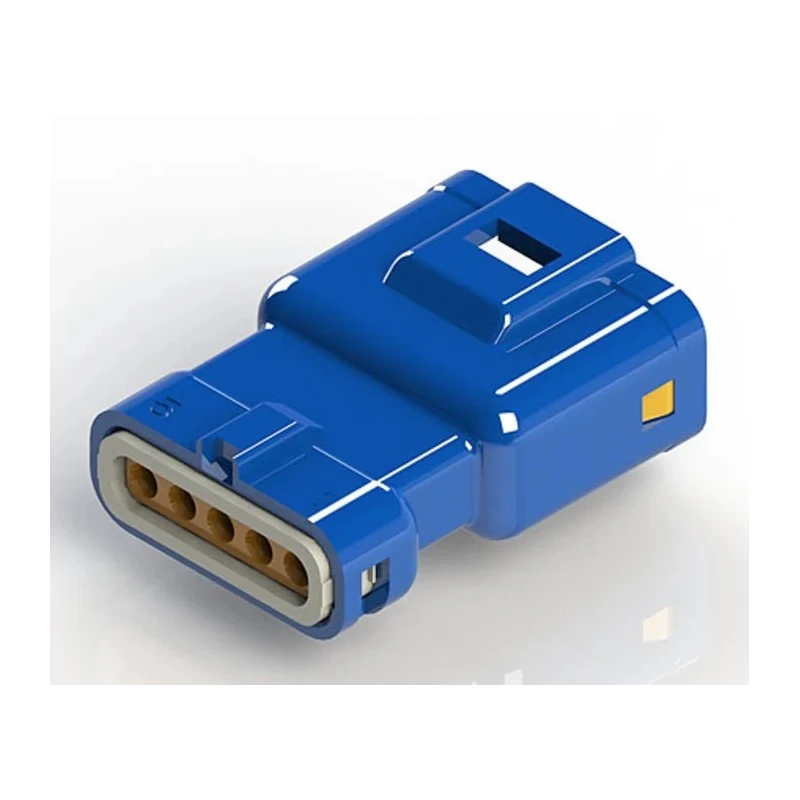

EDAC 5-Pole Wire to Wire Connector Cable 3A 250V Phosphor Bronze Contacts Polybutylene Terephthalate Housing 560-005-000-311

Free Delivery in India | Lowest Global Shipping Charges

EDAC 5-Pole Wire to Wire Connector Cable 3A 250V Phosphor Bronze Contacts Polybutylene Terephthalate Housing 560-005-000-311

Name: EDAC 5-Pole Wire to Wire Connector Cable 3A 250V Phosphor Bronze Contacts Polybutylene Terephthalate Housing 560-005-000-311
Brand: EDAC
SKU: 185347
Price: 2.44 USD
Availability: InStock



Category Wire to Wire Connector Brand EDAC Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	EDAC
Current	3A
Mount Type	Cable
Housing Material	Polybutylene Terephthalate
Contact Material	Phosphor Bronze
Series	560
Cable diameter	1.7mm
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Pole Format	5
Contact Plating	Tin
Contact Gender	Male
Connector Gender	Male

Key Features

This connector features phosphor bronze contacts with tin plating for reliable electrical conductivity.
The housing is made of durable polybutylene terephthalate providing robust mechanical and environmental protection.
It supports a wire diameter of 1.7 mm and operates between -40°C to 105°C.
The connector offers internal polarization and double latch for secure mating and prevention of incorrect connections.
The compact 560 series connectors have a 2.5 mm pitch and meet IP67 waterproof rating standards.
Suitable for industrial, automotive, lighting, and emergency vehicle electrical systems.

Product Description

EDAC 560-005-000-311 5-Pole Wire to Wire Connector Cable provides a fully waterproof connection solution designed for demanding industrial and automotive applications. The connector is rated for 3 amps current at 250 volts, ensuring its suitability for low voltage power and signal applications. The phosphor bronze contacts, plated with tin, deliver consistent electrical performance and corrosion resistance.

The housing is crafted from polybutylene terephthalate, a material known for high mechanical strength and thermal resistance, allowing the connector to operate reliably from -40°C to 105°C. The integrated seal within the pre-assembled housing guarantees an IP67 rating, preventing water ingress and ensuring robust outdoor and harsh environment operation.

The connector’s 5-pole configuration with a 2.5 mm pitch accommodates wires up to 1.7 mm in diameter. The internal polarization and double latch mechanism prevent mis-mating and provide secure locking. Termination is via crimp, facilitating easy and reliable assembly with corresponding crimp tools. The product is made in China and is part of the EDAC 560 series of compact power connectors.

Fully waterproof with IP67-rated seals preventing water ingress. Double latch and internal polarization to prevent incorrect connections. Pre-assembled housing and seals for ease of installation. Crimp termination compatible with 1.7 mm diameter wire.

Operating temperature range from -40°C to 105°C for reliable performance. Phosphor bronze contact material with tin plating for excellent conductivity and corrosion resistance. 5-pole connector suitable for a wide range of industrial and automotive applications.

This Wire to Wire Connector cable is ideal for use in lighting, industrial pumps, test equipment, emergency vehicles, construction equipment, welding equipment, automotive, sound, and broadcast systems. Its IP67 rating and rugged construction ensure dependable performance in harsh and moisture-prone environments.
