Legrand 100 VA DIN Rail Transformer, 230 to 400 V Primary, 230 V Secondary, IEC/EN 61558-2-4, EN 61131-2, IEC/EN 0 428 42

Free Delivery in India | Lowest Global Shipping Charges

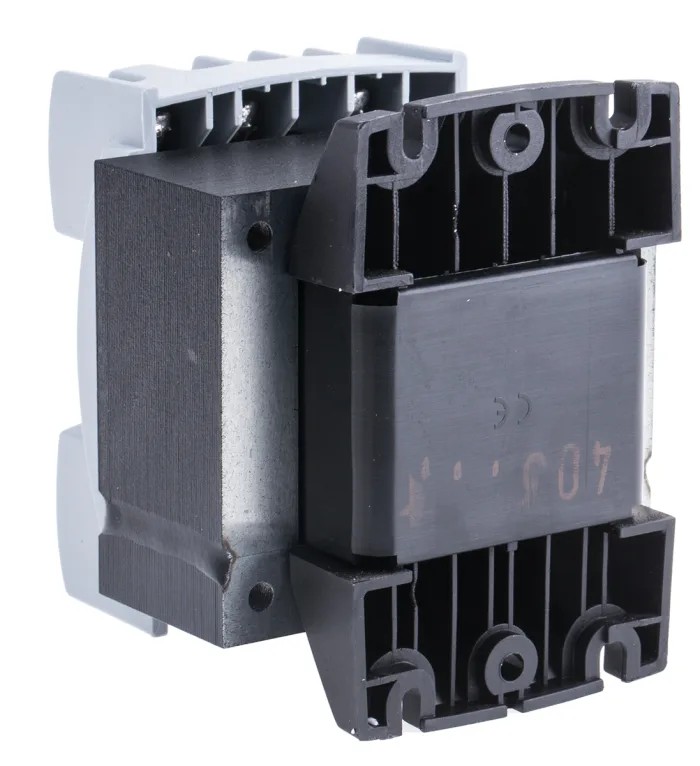

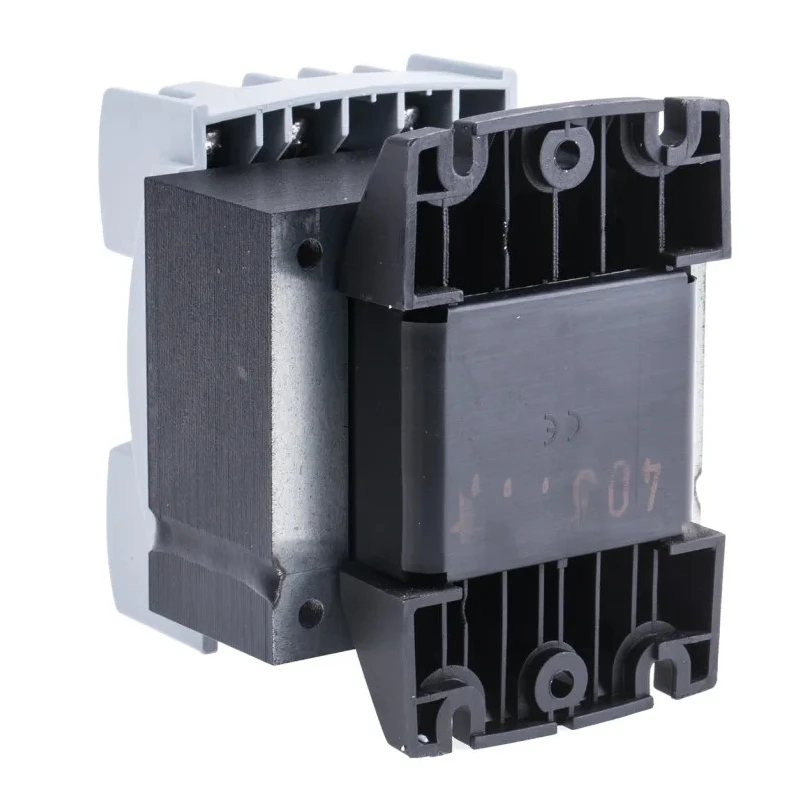

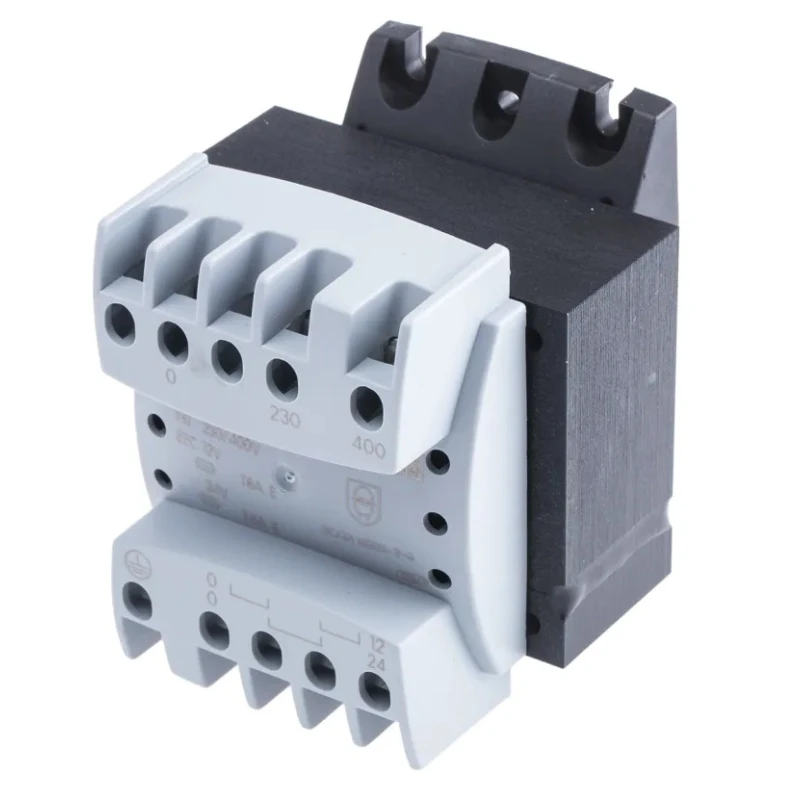

Legrand 100 VA DIN Rail Transformer, 230 to 400 V Primary, 230 V Secondary, IEC/EN 61558-2-4, EN 61131-2, IEC/EN 0 428 42

Name: Legrand 100 VA DIN Rail Transformer, 230 to 400 V Primary, 230 V Secondary, IEC/EN 61558-2-4, EN 61131-2, IEC/EN 0 428 42
Brand: Legrand
SKU: 159142
Price: 121.65 USD
Availability: InStock



Category DIN Rail Transformer Brand Legrand Condition New

Specifications

Country of Origin	France
Brand	Legrand
Length	98mm
Model	0 428 42
Depth	86mm
Gross Weight	1.6kg
Width	84mm
Mount Type	DIN Rail
Maximum Operating Temperature	50°C
Number of outputs	2
RS Stock No.	383-368Brand: LegrandManufacturers Part No.: 0 428 42
Primary Voltage	230 to 400 V
Secondary Voltage	230 V
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz

Key Features

Compact and open type design suitable for DIN rail mounting.
Dual standard primary winding supports 230 V and 400 V inputs.

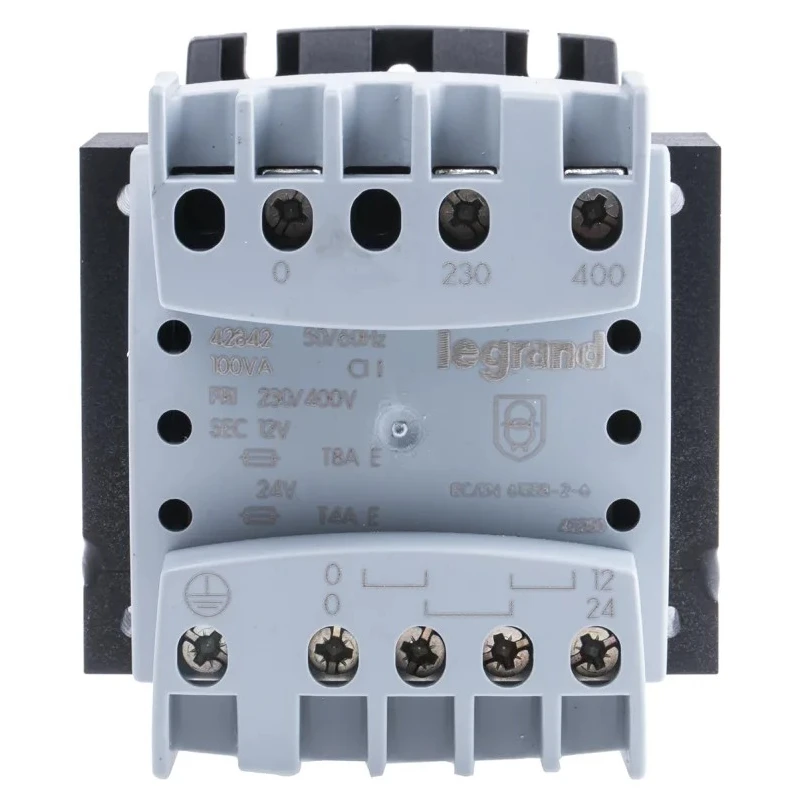

Fully shrouded screw terminals with clear permanent markings for safe connections.
Rated for operating frequencies between 50 Hz and 60 Hz.
Robust laminated construction with easy fixing points for secure installation.
Operates reliably up to a maximum temperature of 50°C.
Complies with IEC/EN 61558-2-4, EN 61131-2, UL 506, CSA standards ensuring safety and quality.
Weighs 1.6 kg and measures 98 mm length, 84 mm width, and 86 mm depth.

Product Description

Legrand 0 428 42 DIN Rail Transformer is a robust and compact control panel transformer delivering 100 VA power with a primary voltage range of 230 to 400 V and a secondary voltage of 230 V. Designed to mount on DIN rails, it facilitates safe and reliable power distribution in industrial, manufacturing, HVAC, and electrical applications.

This transformer features dual standard primary winding enabling compatibility with both 230 V and 400 V inputs. The fully shrouded screw terminals come with permanent markings, enhancing connection safety and ease of maintenance. Its laminated iron core construction optimizes efficiency while minimizing losses and noise.

The product supports an operating frequency range from 50 Hz to 60 Hz and can function in environments up to 50°C maximum temperature. Despite its compact dimensions of 98 mm length, 84 mm width, and 86 mm depth, it weighs a substantial 1.6 kg, indicating solid build quality suitable for demanding industrial installations.

Compact open type DIN Rail mount transformer with 100 VA rating. Primary voltage dual winding 230/400 V, secondary voltage 230 V. Fully shrouded screw terminals with permanent clear marking. Supports operating frequency 50 Hz to 60 Hz for broad applicability.

Laminated core design reduces noise and improves efficiency. Maximum operating temperature of 50°C for stable performance. Certified to IEC/EN 61558-2-4, EN 61131-2, IEC/EN standards, UL506, CSA C22-2-N°66, EN 60204-1, and EN 60439-1.

Suitable for industrial, manufacturing, control panel, and electrical distribution applications. Manufactured in France ensuring quality assurance and compliance.

This Legrand DIN Rail Transformer is suited for applications requiring a reliable power supply with precise voltage requirements and safety certifications. It’s ideal for equipment control panels, industrial automation, and general power supply in commercial and industrial environments. For more curated selection and brand options, explore EnvMart’s wide range of transformers and power supply components.
