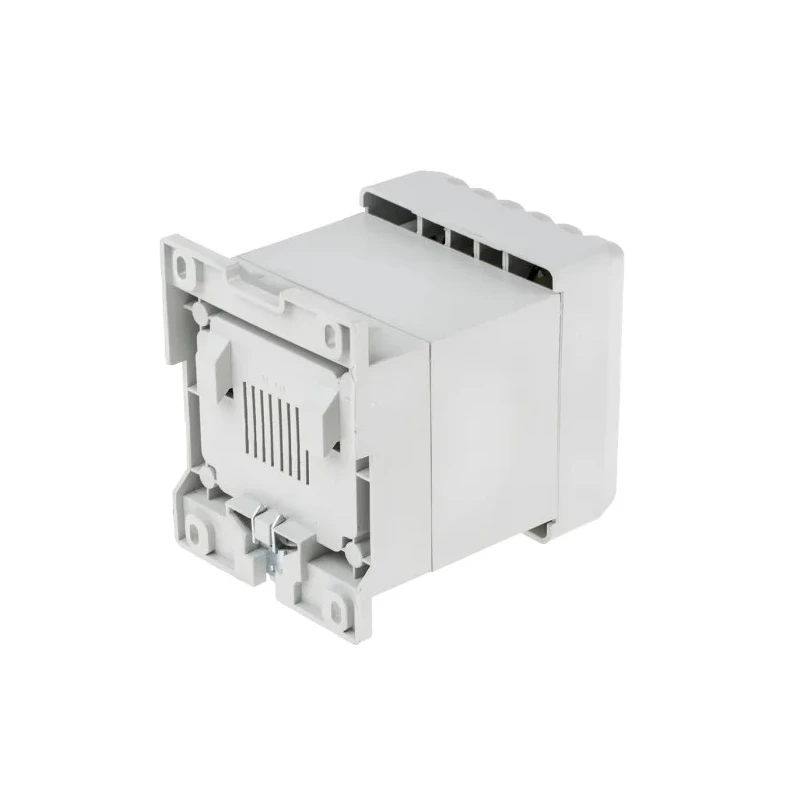

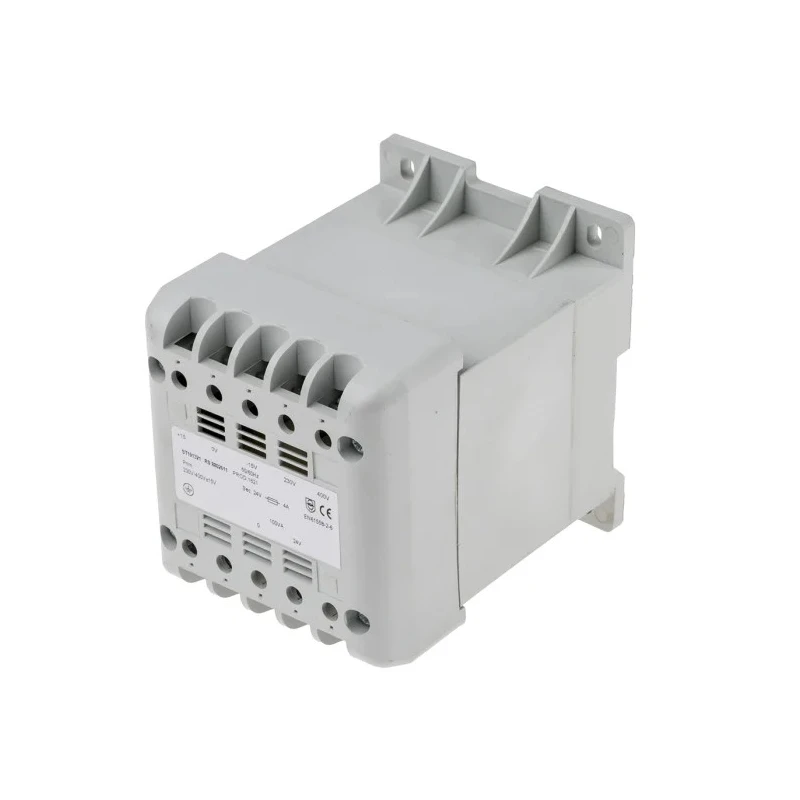

RS PRO 400 VA DIN Rail Transformer 230 V, 400 V AC Primary, 12 V, 24 V, 115 V AC Secondary, IP21 Protection, 50/60 880-2611
Specifications
| Country of Origin | Poland |
|---|---|
| Brand | RS PRO |
| Efficiency | High efficiency and low regulation minimize energy loss |
| Length | 106mm |
| Model | 880-2611 |
| Depth | 107mm |
| Gross Weight | 2.3kg |
| Width | 90mm |
| Mount Type | DIN Rail |
| Isolation | High isolation of 4kV or 4.6kV RMS for enhanced safety |
| Protection Class | IP21 for reliable protection against dust and moisture |
| Maximum Temperature | Can withstand up to 130°C |
| Operating Frequency | 50/60Hz for global compatibility |
| Safety | High isolation ratings and IP21 protection class for safe operation |
| Durability | Operates at temperatures up to 130°C, built to withstand harsh conditions |
| Maximum Operating Temperature | 130°C |
| Number of outputs | 2 |
| Adjustments | Optional +/- 15V adjustment tapings for precise voltage control |
| Primary Voltage | 230 V, 400 V ac |
| Secondary Voltage | 12 V, 24 V, 115 V ac |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
| Primary Voltage Rating | 230V or 400V AC |
| Secondary Voltage Rating | 12V, 24V, or 115V AC |
| Versatility | Multiple primary and secondary voltage options to suit diverse applications |
| Optional Dual Output | Flexibility to meet diverse requirements |
Key Features
- The primary voltage supports 230 V and 400 V AC inputs.
- Secondary outputs include 12 V, 24 V, and 115 V AC options.
- Mount type is DIN Rail for easy panel installation.
- Operates at 50/60 Hz frequency suitable for global compatibility.
- Provides IP21 protection for reliable operation against dust and moisture.
- Can withstand maximum operating temperature up to 130°C for durability.
- High isolation ratings of 4 kV or 4.6 kV RMS enhance safety.
- Meets standards including ASNZS 61558 and RoHS compliance.
Product Description
RS PRO 880-2611 is a 400 VA DIN Rail Transformer designed to support electrical control systems and panel boards with high efficiency and safety. It features multiple primary voltages of 230 V and 400 V AC alongside selectable secondary voltages including 12 V, 24 V, and 115 V AC, making it suitable for diverse industrial and electromagnetic applications.
This transformer is built for reliability with IP21 protection rating, providing resilience against environmental dust and moisture. It operates efficiently at 50 to 60 Hz frequency bands, allowing global operational compatibility. With a maximum operating temperature resistance of 130°C, this device ensures durability in demanding electrical settings.
The compact design with dimensions of 106 mm length, 90 mm width, and 107 mm depth, coupled with a gross weight of 2.3 kg, allows for easy DIN Rail mounting in control panels. Safety is enhanced through high isolation voltages of up to 4.6 kV RMS. Compliance with ASNZS 61558 standards and RoHS certification assures quality and environmental considerations.
The primary voltage supports 230 V and 400 V AC inputs. Secondary outputs include 12 V, 24 V, and 115 V AC options. Mount type is DIN Rail for easy panel installation. Operates at 50/60 Hz frequency suitable for global compatibility.
Provides IP21 protection for reliable operation against dust and moisture. Can withstand maximum operating temperature up to 130°C for durability. High isolation ratings of 4 kV or 4.6 kV RMS enhance safety. Compact dimensions: 106 mm length, 90 mm width, and 107 mm depth.
Gross weight is approximately 2.3 kg. Meets standards including ASNZS 61558 and RoHS compliance.
This RS PRO DIN Rail Transformer is ideal for industrial, manufacturing, electrical control, and panel board use cases, facilitating secure and efficient power transformation. Environmentally certified and robust, it supports electrical engineers and technicians in building safe and compliant electrical systems.
Explore the RS PRO category on EnvMart for additional high-quality transformers and power supply components to complement your industrial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The transformer supports primary voltages of 230 V and 400 V AC.
This model offers selectable secondary voltages of 12 V, 24 V, and 115 V AC.
It can withstand a maximum operating temperature of up to 130°C.
It has an IP21 protection rating, providing reliable protection against dust and moisture.
The transformer measures 106 mm in length, 90 mm in width, and 107 mm in depth, with a gross weight of approximately 2.3 kg.
It operates at a frequency range of 50 to 60 Hz, making it suitable for global compatibility.
It features high isolation ratings of 4 kV or 4.6 kV RMS for enhanced safety.
This unit is designed for DIN Rail mounting, facilitating easy installation in control panels.
Yes, it includes optional +/- 15V adjustment tapings for precise voltage control.
It meets ASNZS 61558 standards and is RoHS compliant, ensuring quality and environmental considerations.
It is ideal for use in industrial, manufacturing, electrical control, and panel board applications.
It is designed for high efficiency and low regulation, which minimizes energy loss during operation.
