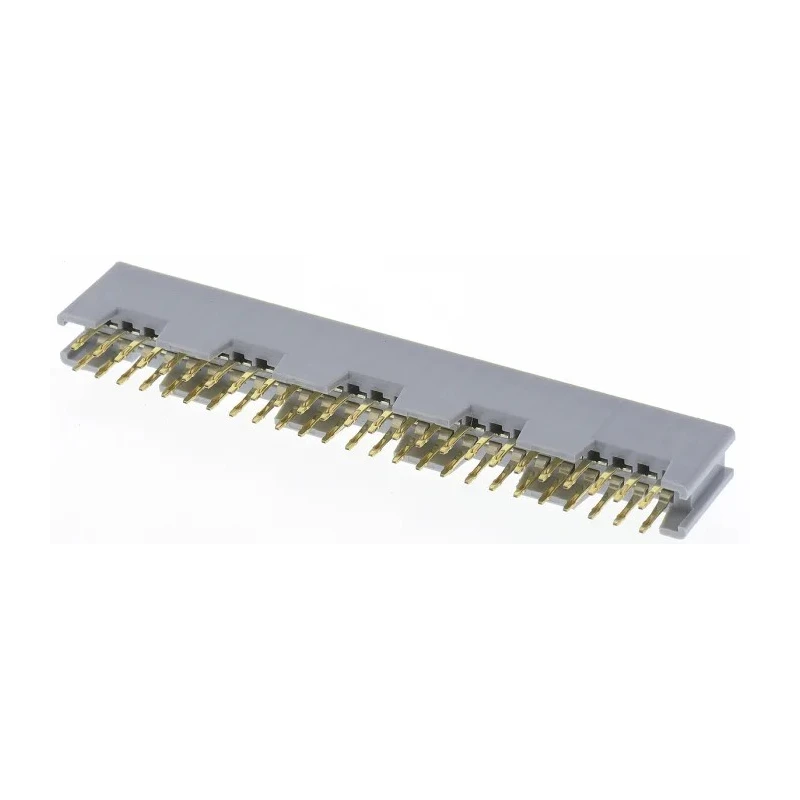

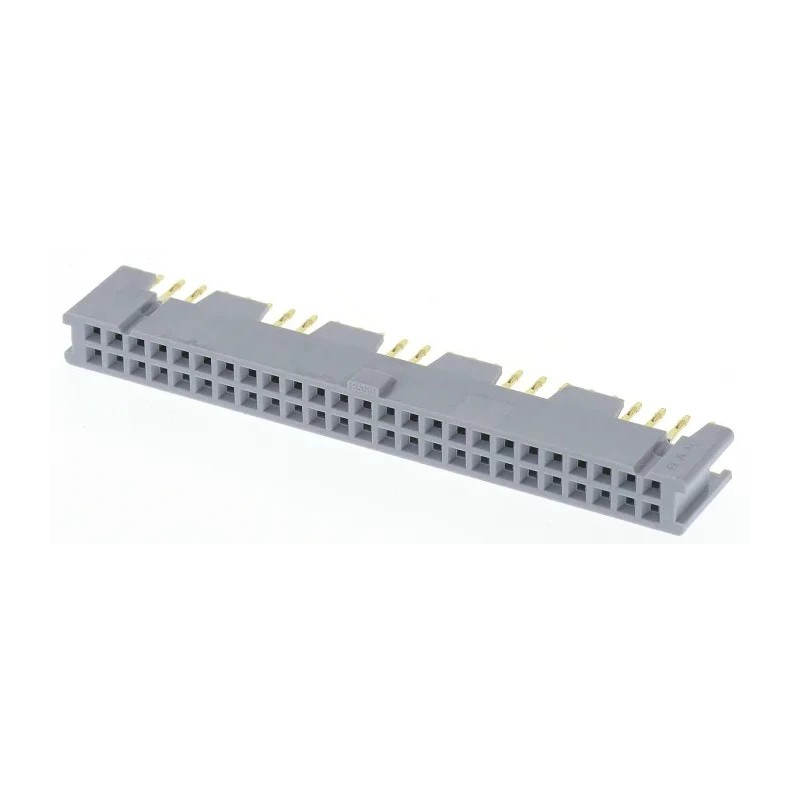

3M 8500 Series 50-Contact 2 Row 2.54 mm Pitch Straight Through Hole PCB Socket 8550-4500PL
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 1kV |
| Brand | 3M |
| Orientation | Straight |
| Current | 1A |
| Model | 8550-4500PL |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Copper |
| Series | 8500 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Nickel |
| Number of Contacts | 50 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Connector,rectangular,straight,PCB mount,socket,50 wayBrand | 3M |
Key Features
- Manufactured with glass filled polyester housing ensuring durability.
- 50 female copper contacts plated with nickel for reliable conductivity.
- Supports current rating of 1 amp and voltage up to 1kV.
- Suitable for operating temperatures from -55°C to 105°C.
- Designed with center bump polarization and board retention for secure mechanical fit.
- Compatible with low profile shrouded headers in board stacking applications.
- Mount type is through hole with straight orientation for easy PCB assembly.
- Connector system type is board-to-board, ideal for electronic devices manufacturing.
Product Description
3M 8550-4500PL is a 50-contact straight through hole PCB socket from the 8500 Series, featuring a 2.54 mm pitch and 2-row configuration. It is designed for robust board-to-board connection applications in electronic assemblies and supports a current rating of 1 amp and voltage up to 1kV.
This socket is manufactured using glass filled polyester housing, providing high durability and flame retardant properties (UL 94V-0 rated). The contacts are made of copper and plated with nickel ensuring excellent electrical conductivity and corrosion resistance. The connector features center bump polarization and board retention mechanisms that guarantee secure mating and prevent misalignment.
The 8500 Series sockets are suited for use in environments with operating temperatures ranging from -55°C to 105°C, making them versatile for various industrial electronics applications. Mounting is through hole with a straight orientation that facilitates easy soldering onto printed circuit boards.
These connectors are commonly utilized in board stacking scenarios such as mother board to daughter board connections, providing a low profile, reliable connection mechanism. The product is made in Japan to high quality standards, supporting industrial, manufacturing, and commercial electronics production needs.
Durable glass filled polyester housing for mechanical stability. 50 female contacts with nickel plating for excellent conductivity. Supports 1A current and 1kV voltage rating. Wide operating temperature range from -55°C to 105°C.
Center bump polarization and board retention for secure installation. Through hole mount type with straight orientation for PCB assembly. Ideal for board-to-board connector applications. UL 94V-0 rated body ensures flame retardance.
Manufactured in Japan for premium quality assurance.
Explore more from 3M PCB Sockets to meet your electronics connection requirements. Browse the Electronics & Electricals category on EnvMart for other high-quality connector components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a voltage rating of up to 1kV.
The 3M 8550-4500PL has a current rating of 1 amp.
It operates effectively within a temperature range of -55°C to 105°C.
This model features 50 female contacts.
The socket is designed for through hole mounting with a straight orientation.
The housing is made from glass filled polyester, providing durability and flame retardant properties.
The contact pitch for this model is 2.54 mm.
It is a board-to-board connector system, suitable for electronic devices manufacturing.
This model uses solder termination for secure connections.
It includes center bump polarization and board retention mechanisms to prevent misalignment.
This PCB socket is manufactured in Japan, ensuring high quality standards.
It is ideal for board stacking applications, such as connections between motherboards and daughter boards.
