STMicroelectronics Evaluation Board MCU with ARM Cortex M7 STM32F769I-EVAL

Free Delivery in India | Lowest Global Shipping Charges

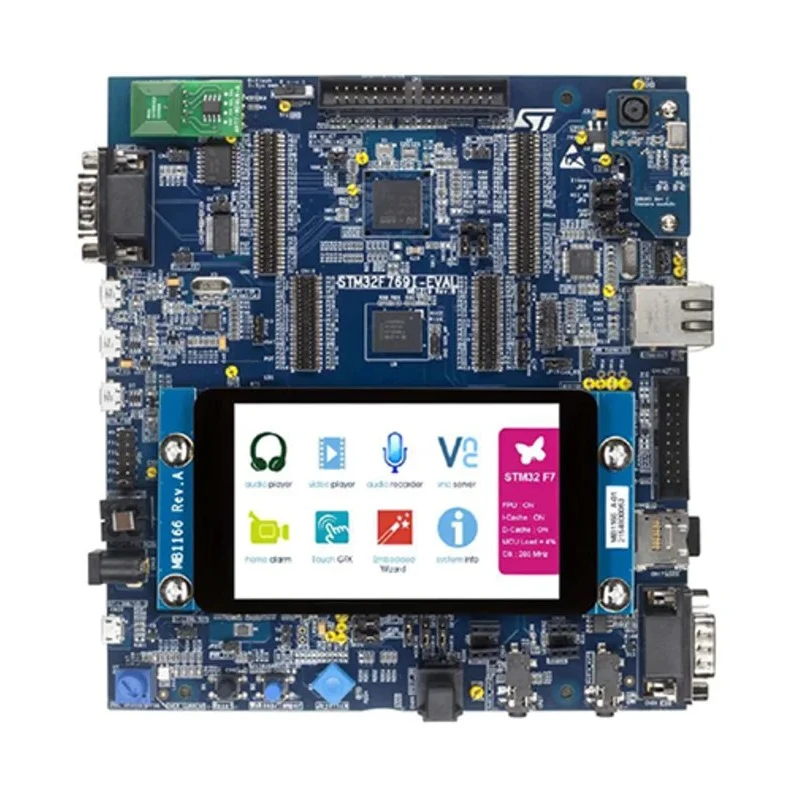

STMicroelectronics Evaluation Board MCU with ARM Cortex M7 STM32F769I-EVAL

Name: STMicroelectronics Evaluation Board MCU with ARM Cortex M7 STM32F769I-EVAL
Brand: STMicroelectronics
SKU: 191406
Price: 607.47 USD
Availability: InStock



Category Evaluation Board Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Model	STM32F769I-EVAL
Technology	MCU
Interfaces	USB OTG HS and FS with Micro-AB connectors
Standards/Approvals	RoHS
Device Core	ARM Cortex M7
Kit Classification	Evaluation Board
Kit Name	Evaluation Board
Processor Part Number	STM32F769NI
Processor Type	Microcontroller
Processor Family Name	STM
Flexible external memory controller	8M x 32-bit SDRAM, 1M x 16-bit SRAM and 8M x 16-bit NOR Flash

Key Features

Powered by ARM Cortex M7 core delivering high performance at 216MHz clock frequency.
Features 2 MB Flash memory and 512 KB SRAM with additional TCM and backup RAM modules.
Includes a 4-inch 800 x 480 capacitive touch LCD with MIPI DSI interface for user interaction.
Equipped with multiple interfaces including USB OTG HS/FS, Ethernet, CAN bus, and RS-232 communications.
Provides flexible memory options such as 8M x 32-bit SDRAM and 2G x16-bit NAND Flash support.
Integrated ST-LINK/V2-1 for in-circuit debugging and programming of STM32 MCUs.
Supports audio codec, microphone, and speaker outputs for multimedia applications.
Comprehensive expansion connectors for daughterboards and peripherals tailored for customized development.

Product Description

STMicroelectronics STM32F769I-EVAL Evaluation Board MCU features the STM32F769NI Microcontroller based on an ARM Cortex M7 core operating up to 216 MHz, ideal for rapid prototyping and embedded system development. This complete demonstration kit incorporates 2 MB of embedded Flash memory, 512 KB SRAM, 16 KB instruction TCM RAM, and 4 KB backup SRAM to support complex application needs.

The board includes a 4-inch capacitive touch LCD display with 800 x 480 resolution, interfaced via MIPI DSI, enabling rich user interface capabilities. Multimedia support is enhanced with a stereo audio codec, digital microphone, and speaker outputs built-in. Extensive connectivity options include USB OTG high-speed and full-speed with Micro-AB connectors, IEEE 802.3 Ethernet, CAN 2.0 A/B compliant interface, RS-232 communication via DB9 connector, and multiple I2C interfaces.

Memory expansion is flexible with an external memory controller supporting 8M x 32-bit SDRAM, 1M x 16-bit SRAM, 8M x 16-bit NOR Flash, 2G x 16-bit NAND Flash, and an SDIO micro-SD card interface facilitating high-capacity storage and fast data transfers.

The integrated ST-LINK/V2-1 debugger and programmer ensure seamless development and debugging workflows. Additional features include a joystick with 4 direction control plus a selector, user LEDs in four colors, potentiometer and motor control connectors, and reset and wake-up/tamper buttons.

This Evaluation Board serves as a comprehensive platform for industrial, automotive, consumer electronics, and IoT application development, offering versatility for hardware and firmware engineers.

ARM Cortex-M7 core running at 216 MHz delivers high computational performance. Large embedded memory and external memory support enable complex real-time applications. Rich multimedia and user interface components support diverse application needs.

Multiple standardized interfaces enhance connectivity and expandability. Integrated debugging facilitates efficient development cycles. RoHS compliant for safe environmental usage. Explore and develop with confidence using this complete STM32 MCU evaluation solution.
