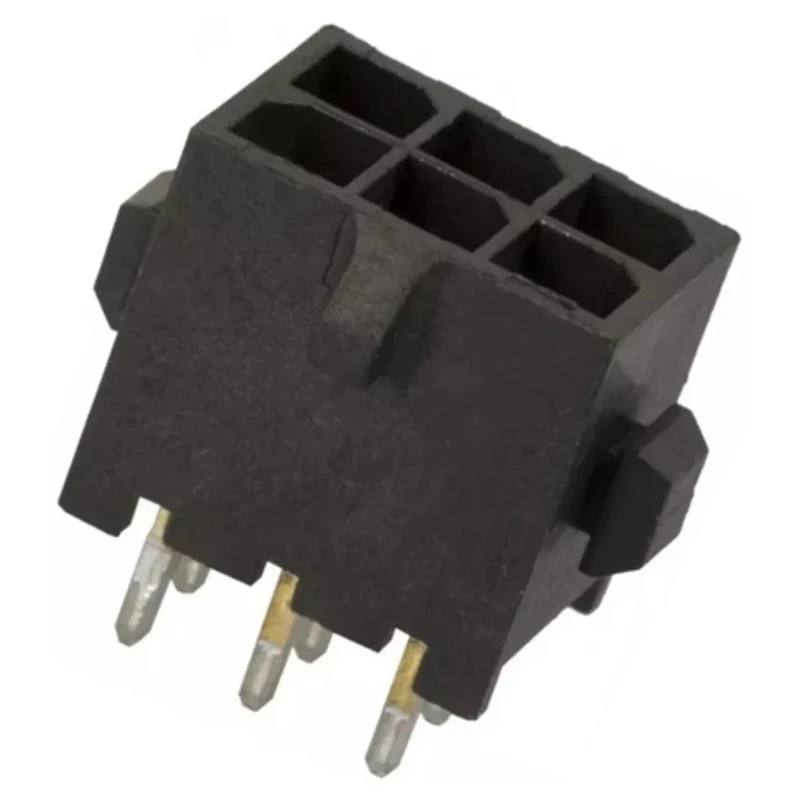

TE Connectivity Micro MATE-N-LOK Series Straight Through Hole PCB Header, 6 Contact, 3 mm Pitch, 2 Row, Shrouded 3-794630-6
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Micro MATE-N-LOK |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 3mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.18mm |
Key Features
- This PCB header features a 2-row, shrouded design for enhanced protection and performance.
- Constructed with a nylon housing for durability and a brass contact material plated with tin for reliable connections.
- Supports a maximum current rating of 5A and voltage of 250V suitable for various electronic applications.
- The connector system uses a wire-to-board configuration with a through-hole mount type for secure PCB attachment.
- Designed for operating temperature range from -65°C to 105°C, ensuring functionality in diverse environments.
- Utilizes solder termination type with a tail pin length of 3.18 mm and a male contact gender for compatibility.
- Features polarization to prevent mismating and positive lock tabs to secure connections effectively.
- Ideal for use in industrial, household appliances, lighting, factory automation, data storage, and security systems.
Product Description
TE Connectivity 3-794630-6 Micro MATE-N-LOK Series straight through hole PCB header is a high-quality electronic connector designed for wire-to-board applications. It features 6 contacts arranged in 2 rows with a 3 mm pitch and a shrouded black nylon housing that ensures durability and protection against external damage.
The header uses brass contacts plated with tin, allowing for a secure and reliable electrical connection carrying up to 5A current and handling voltages up to 250V. Its through-hole mount type and solder termination provide sturdy mechanical and electrical attachment to PCBs, suitable for industrial and consumer electronic applications.
This connector system operates reliably within a broad temperature range of -65°C to 105°C, making it suitable for demanding environments. The micro MATE-N-LOK headers include features such as polarization to prevent incorrect mating and positive lock tabs for secure cable connector attachment.
Applications for this PCB header include household appliances, lighting systems, factory automation setups, data storage devices, and various security systems. The design supports manufacturing processes with compatibility for IR reflow soldering, and versions with low profile mating heights are also available.
High reliability and performance with secure locking and polarization features. Durable nylon housing and brass contacts with tin plating ensure longevity. Suitable for a wide range of industrial and consumer electronic uses.
Designed to maintain secure connections in harsh operating temperatures. Wire-to-board connector system, through-hole mounted for secure PCB integration. Supports current up to 5A and voltage up to 250V for reliable power transmission.
Features positive lock tabs and housing polarization for safe connector engagement. Available in vertical and right-angle configurations to suit different PCB layouts.
It is ideal for applications in electronics manufacturing, industrial automation, lighting, and data systems. Explore more TE Connectivity connectors and related components within the PCB Connectors & Wire Housings category on EnvMart.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a maximum current rating of 5A and a maximum voltage rating of 250V.
It features a 3 mm pitch and has 6 contacts arranged in 2 rows.
The housing is made of nylon, while the contacts are constructed from brass and plated with tin for reliable connections.
This model operates reliably within a temperature range of -65°C to 105°C.
It utilizes a solder termination type for secure attachment to the PCB.
This connector employs a through-hole mount type for secure PCB integration.
Yes, it includes positive lock tabs to secure connections effectively and prevent mismating.
The tail pin length is 3.18 mm.
It is ideal for use in household appliances, lighting systems, factory automation, data storage devices, and security systems.
The orientation of this connector is straight.
The contacts in this PCB header are male.
The country of origin for this PCB header is China.
