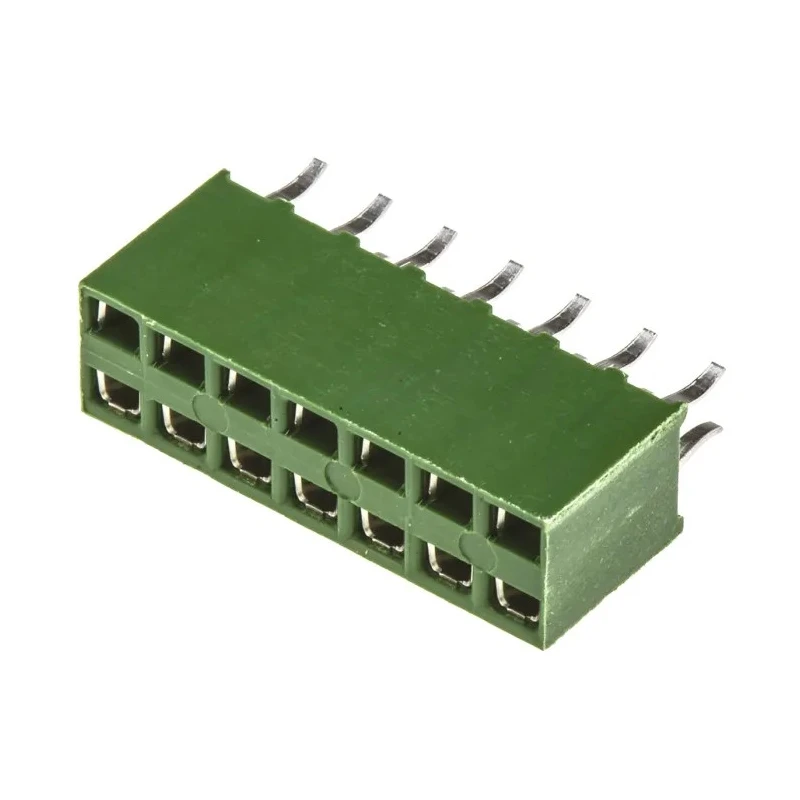

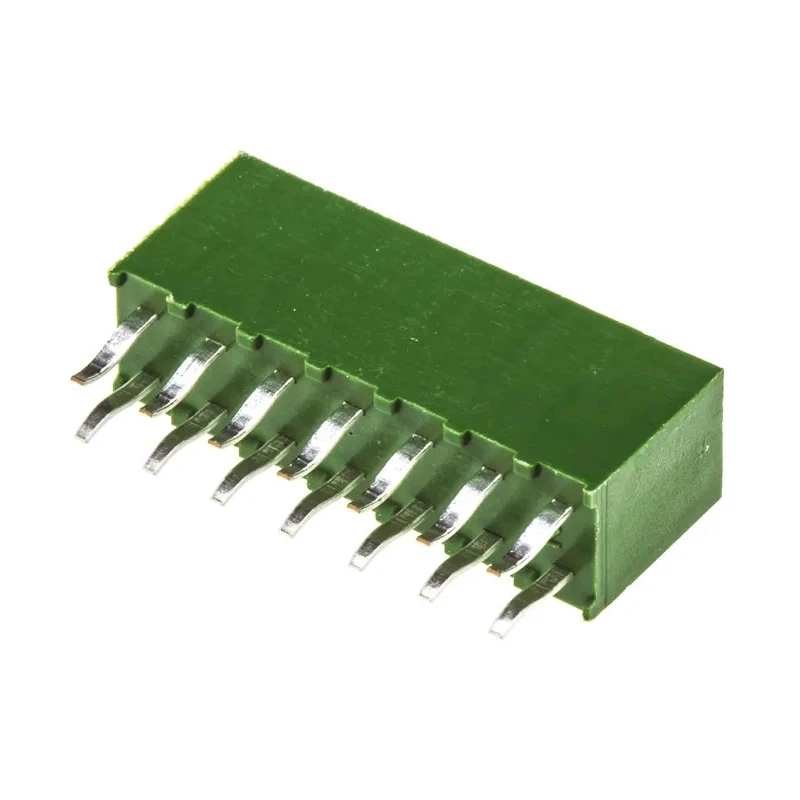

TE Connectivity AMPMODU HV100 Series 14-Contact 2 Row 2.54 mm Pitch Straight Through Hole PCB Socket HV100
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 12A |
| Model | HV100 |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Bronze |
| Series | AMPMODU HV100 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 14 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- The socket uses kinked solder legs for secure PCB retention.
- Constructed with UL 94V-0 flame retardant polyester housings for safety.
- Supports current up to 12A for high-performance applications.
- Offers a straight orientation through-hole mount design.
- Operating temperature ranges from -65°C to 105°C ensuring durability.
- Contacts are made of bronze with tin plating for corrosion resistance.
- Incorporates board stand offs enabling stable mounting during assembly.
- Available in mounting heights of 7 mm or 8.5 mm suitable for stacking needs.
Product Description
TE Connectivity HV100 PCB Socket HV100 is a high-quality electronic component designed for board-to-board interconnection applications. The 14-contact, 2-row socket features a 2.54 mm pitch and is designed for through-hole mounting with a straight orientation, providing secure and effective solder connections via kinked solder legs that enhance PCB retention.
The socket housing is made from UL 94V-0 flame retardant polyester thermoplastic, ensuring high resistance to heat and safety in demanding environments. These sockets are suitable for applications requiring currents up to 12 amperes, with contacts composed of bronze featuring tin plating for excellent electrical conductivity and corrosion protection.
Designed to withstand operating temperatures from -65°C up to 105°C, this component performs reliably across a wide thermal range. Board stand offs allow for stable mounting and positioning on the PCB during assembly and use, and two mounting heights (7 mm and 8.5 mm) are available to accommodate stacking and space-saving configurations.
This TE Connectivity AMPMODU HV100 Series PCB Socket HV100 is ideally suited for use in industrial electronics, manufacturing equipment, telecommunications hardware, and other commercial electronic assemblies requiring durable and reliable PCB sockets.
The socket uses kinked solder legs for secure PCB retention. Constructed with UL 94V-0 flame retardant polyester housings for safety. Supports current up to 12A for high-performance applications. Offers a straight orientation through-hole mount design.
Operating temperature ranges from -65°C to 105°C ensuring durability. Contacts are made of bronze with tin plating for corrosion resistance. Incorporates board stand offs enabling stable mounting during assembly. Available in mounting heights of 7 mm or 8.5 mm suitable for stacking needs.
Explore more products in the PCB Sockets category on EnvMart to meet your electronic assembly requirements with trusted quality components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket supports a maximum current of 12A, making it suitable for high-performance applications.
The HV100 socket features a pitch size of 2.54 mm, which is standard for many PCB applications.
It operates effectively within a temperature range of -65°C to 105°C, ensuring reliability across various environments.
The housing is made from UL 94V-0 flame retardant polyester, while the contacts are composed of bronze with tin plating for corrosion resistance.
This socket is designed for through-hole mounting with a straight orientation, providing secure solder connections.
The HV100 socket contains 14 contacts, arranged in a 2-row configuration.
Yes, the socket is available in two mounting heights: 7 mm and 8.5 mm, accommodating various stacking needs.
This model uses solder termination, ensuring a secure connection to the PCB.
The contacts in this socket are female, designed for board-to-board interconnection.
The HV100 socket is designed as a board-to-board connector system, suitable for various electronic assemblies.
It is constructed with UL 94V-0 flame retardant polyester, providing safety in demanding environments.
The country of origin for this PCB socket is India.
