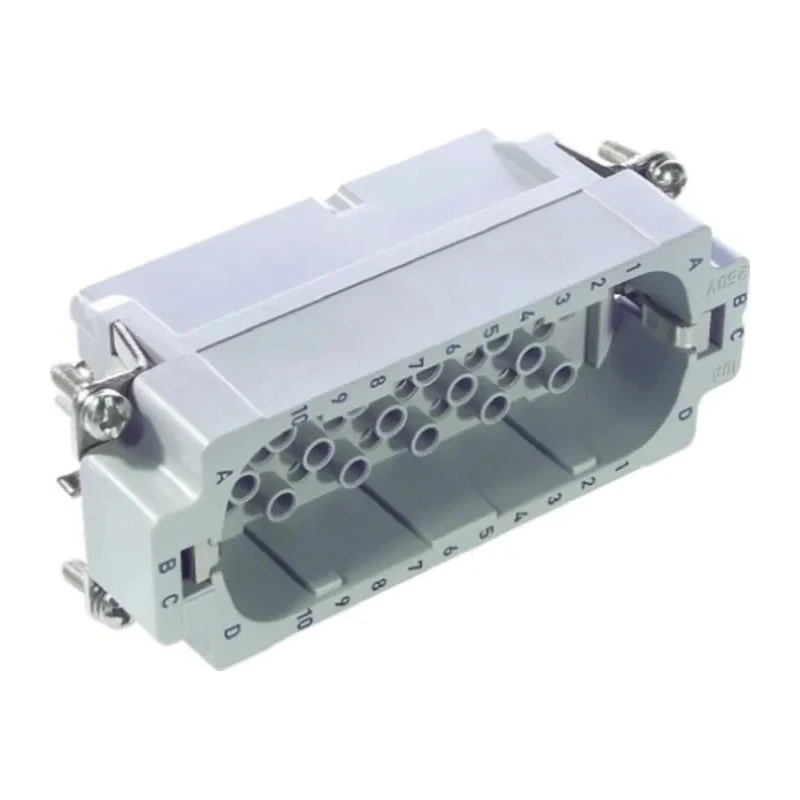

EPIC Heavy Duty Power Connector Insert 10A 250V 40 Contacts Male H-D Series 11265200

EPIC 11265200 Heavy Duty Power Connector Insert is a male connector insert designed for use in heavy duty power connections requiring 10A current and 250V operating voltage. Manufactured in Germany, this connector belongs to the H-D series and features 40 contacts arranged in three rows with a 40+E pole format.

The connector's copper alloy contacts are silver plated to ensure superior conductivity and resistance to corrosion. This sturdy metal housing mounts directly onto cables, providing protection rated at IP65, making it suitable for industrial and demanding outdoor applications.

Termination is achieved via crimp using a high-quality 8 point indent crimp tool, allowing simple and effective assembly. The connector inserts are interchangeable and include a separate earth connection integrated into the metal body shell to guarantee safety and grounding.

The product is compliant with German VDE standards including 0110//72, 0110b, 79, and VDE 0627//86. It also holds approvals from regulatory bodies SEV, UL, and CSA, ensuring high reliability and safety in various industrial, manufacturing, electrical distribution, and heavy machinery use cases.

The connector supports minimum wire sizes of 0.14 mm² and maximum wire sizes of 2.5 mm², providing flexibility in wiring options. The straight orientation of contacts and the crimp termination style simplify installation and maintenance.

This robust, high-density connector insert allows for more power and control connections within smaller shell sizes, optimizing space in electrical enclosures and systems.

For industrial users requiring dependable power connector inserts for equipment, control panels, and wiring harnesses, this EPIC model offers the required durability, electrical ratings, and compliance.

Discover more from EPIC and other heavy duty power connectors in EnvMart’s extensive catalog of power connector components suitable for electrical, manufacturing, construction, and automation sectors.

Rated current of 10 amperes ensures stable electrical performance. Designed for heavy duty power connectors with high-density 40+E contacts. Male connector format suitable for cable mounting applications. Durable copper alloy contacts with silver plating for corrosion resistance.

IP65 rated metal body offers dust and water ingress protection. Supports wire sizes from 0.14 mm² to 2.5 mm² for flexible usage. Provides reliable crimp termination with an 8-point indent crimp tool. Connector inserts are interchangeable with separate earth connection to metal body shell.

Standards compliant with VDE 0110 and approved by SEV, UL, CSA organizations.
