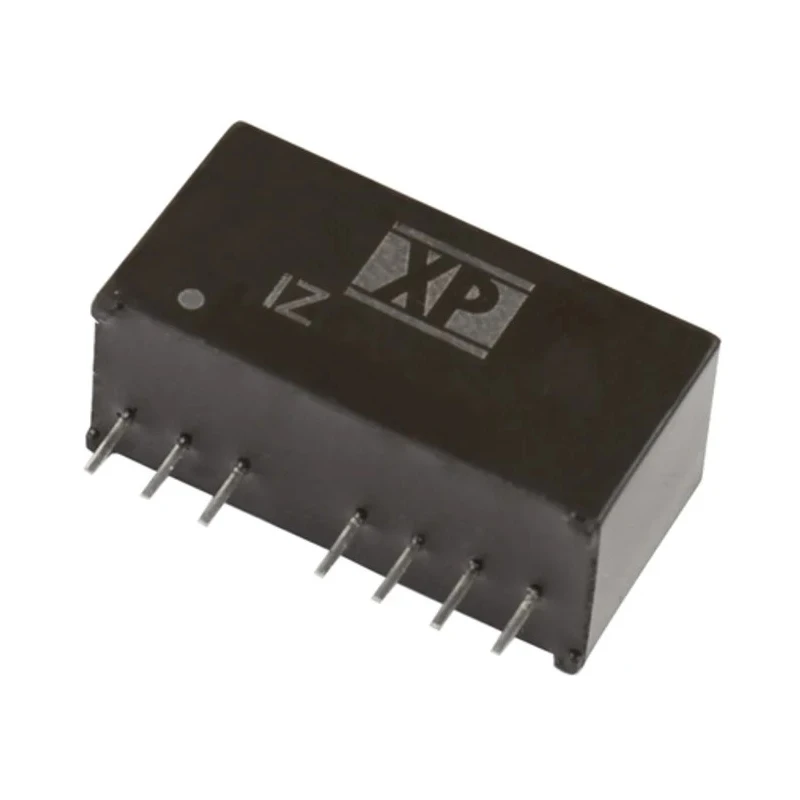

XP Power IZ Series Isolated DC/DC Converter 3.3V DC Output 700mA 36V DC Input 8V Input 3W Through Hole SIP Package IZ2403SA
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | XP Power |
| Efficiency | 74% |
| Length | 21.85mm |
| Model | IZ2403SA |
| Depth | 11.1mm |
| Width | 9.2mm |
| Mount Type | Through Hole |
| Series | IZ |
| Maximum Operating Temperature | 100°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1340000h |
| Number of outputs | 1 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 8V |
| Number of Pins | 8 |
| Output Voltage 1 | 3.3V dc |
| Output Current 1 | 700mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Provides regulated isolated DC/DC conversion with 1600 VDC isolation.
- Maximum output power is 3 watts ensuring efficient energy transfer.
- Operating temperature range from -40°C to 100°C for reliable industrial use.
- Compact SIP package with 8 pins and through-hole mounting type.
- MTBF of 1,340,000 hours guarantees long-term reliability.
- Efficiency rated at 74 percent for optimized performance.
- Continuous short circuit protection enhances device safety.
- Designed for commercial and industrial power supply applications.
Product Description
XP Power IZ2403SA is a high-reliability isolated DC/DC converter in the IZ series delivering a regulated 3.3V DC output at 700mA with a maximum output power of 3W. Engineered in a compact SIP through-hole package, this converter supports an input voltage range from 8V to 36V DC with a 2:1 input ratio, ideal for variable input power applications.
This module provides 1600 VDC isolation ensuring electrical safety and noise immunity in industrial and commercial power supply systems. The device operates efficiently with a 74% efficiency rating and is capable of functioning reliably within a wide temperature range of -40°C up to 100°C, suitable for harsh environments.
The converter includes 8 pins for straightforward through-hole mounting on printed circuit boards (PCBs). With a high MTBF of 1,340,000 hours, the IZ2403SA assures long service life and robust operation, complemented by continuous short circuit protection to prevent damage under fault conditions.
Typical applications include industrial instrumentation, communications equipment, and embedded systems requiring isolated power supplies with a small footprint. Its SIP package dimensions are 21.85mm length, 9.2mm width, and 11.1mm depth, facilitating integration into diverse designs.
Regulated isolated DC/DC conversion with high isolation voltage of 1600 VDC. Wide 8V to 36V input voltage range with 2:1 input ratio for versatile power sources. 3.3V output voltage delivering 700mA output current up to 3W power.
Narrow industrial operating temperature range of -40°C to +100°C. Compact SIP through-hole package with 8 pins for easy PCB integration. High reliability with MTBF of over 1.3 million hours. Efficient power conversion at 74% efficiency.
Continuous short circuit protection ensures operational safety. Ideal for industrial, commercial, and embedded power supply applications.
Choose XP Power IZ2403SA for reliable isolated power conversion in demanding environments. Explore more DC/DC Converters and power supply solutions in EnvMart to meet your industrial power management requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 3 watts.
It supports an input voltage range from 8V to 36V DC with a 2:1 input ratio.
The output voltage is 3.3V DC, and it delivers an output current of 700mA.
This unit provides an isolation voltage of 1600 VDC.
The efficiency of this model is rated at 74%.
The SIP package dimensions are 21.85mm in length, 9.2mm in width, and 11.1mm in depth.
The operating temperature range is from -40°C to 100°C.
It has 8 pins for through-hole mounting.
The mean time between failures (MTBF) is 1,340,000 hours.
Yes, it includes continuous short circuit protection to enhance operational safety.
It is suitable for industrial instrumentation, communications equipment, and embedded systems requiring isolated power supplies.
This model utilizes a through-hole mounting type.
