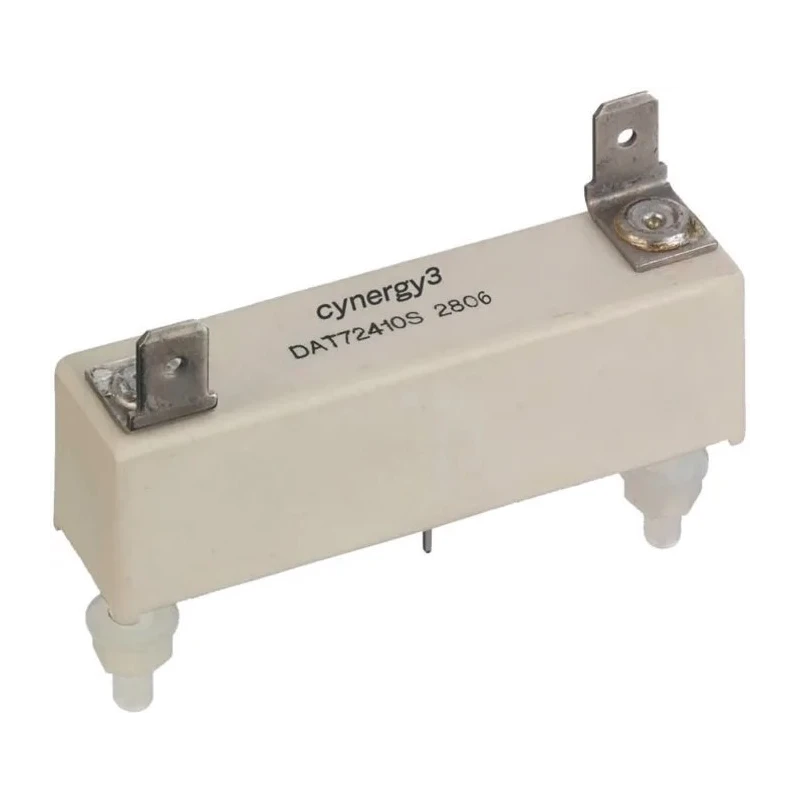

Cynergy3 PCB Reed Relay, 24V DC Coil, SPST Contact Configuration, 50W Coil Power, 780Ω Coil Resistance, 7000V DC Maximum

Cynergy3 DAT72410S PCB Reed Relay is a high-quality reed relay designed for precise electrical switching in industrial and electronic applications. Operating with a 24V DC coil and a SPST contact configuration, this relay supports a maximum switching voltage of 7000V DC and a maximum current of 2A, making it suitable for high-voltage test equipment, medical devices, and industrial power supplies.

The relay features tungsten reed switches that provide excellent conductivity and durability. With a fast operating time of 3 milliseconds and release time of 2 milliseconds, it ensures swift transitions during power switching operations. The relay's coil resistance of 780Ω and coil power of 50W contribute to reliable coil energization.

This PCB-mount panel relay comes with quick-connect terminals and a compact form factor of 60 mm length and 24.8 mm height, enabling easy integration in space-constrained designs. It withstands operating temperatures from -20°C to 70°C, suitable for various industrial environments.

Its robust insulation offers a contact-to-coil isolation of 17 kV AC/DC and a contact isolation of 10 kV, providing strong electrical safety and limiting interference. The contact resistance is low at a maximum of 250 mΩ, assuring minimal signal loss during operation.

Ideal for industrial automation, electrical test equipment, and power conversion systems, the Cynergy3 DAT72410S relay combines performance, safety, and durability in a compact package.

Operates with a 24V DC coil at 50W coil power. SPST contact configuration with up to 2 A current capacity. High voltage switching capacity: 7000V DC max. Compact PCB panel mount design with quick connect terminals. Fast operate/release time for responsive switching.

Coil resistance of 780Ω for stable coil operation. Excellent isolation of 17 kV coil-to-contact and 10 kV contact isolation. Durable tungsten contacts with low resistance. Wide operating temperature range: -20°C to +70°C.

It is a new condition PCB Reed Relay suited for varied industrial and electrical applications including industrial automation, medical electronics, and high voltage power supplies. Browse more precise relay and contactor components in our Electronics & Electricals category for specialized applications.
