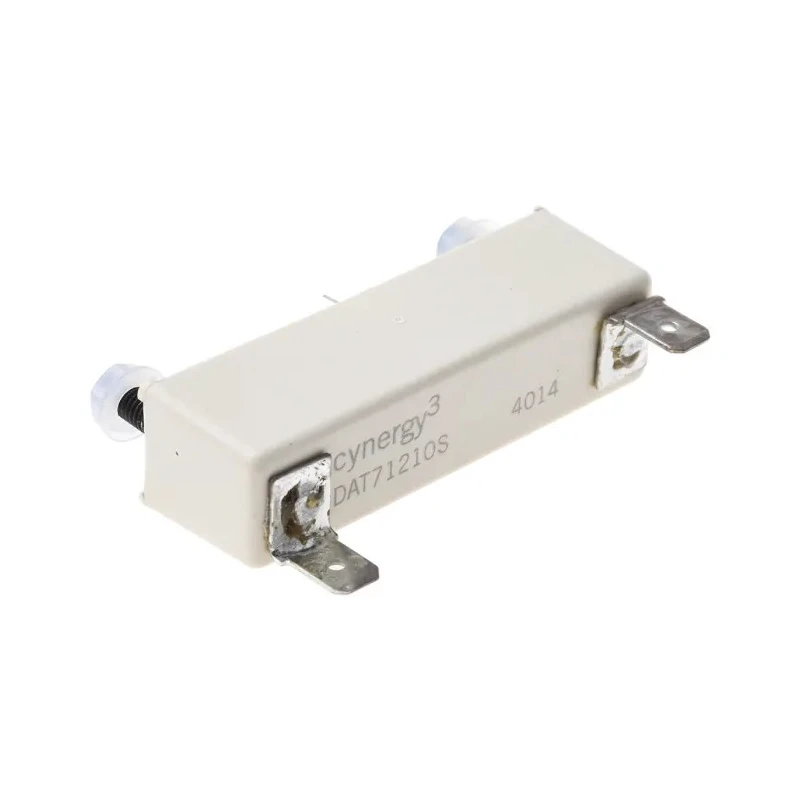

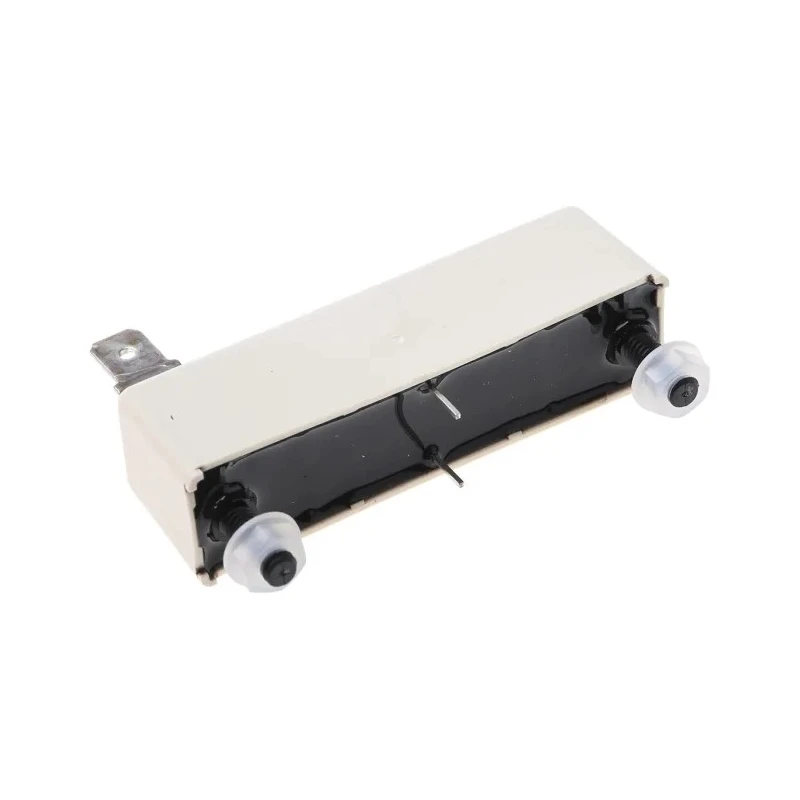

Cynergy3 PCB Reed Relay, 12V DC Coil, SPST Contact, 7000V AC/DC Max Switching Voltage, 2A Max Current, 150 Ω Coil Resistance

Cynergy3 DAT71210S is a high-quality PCB reed relay featuring a 12V DC coil and a single-pole single-throw (SPST) normally open contact configuration, designed for high-voltage and high-reliability switching applications.

This relay supports a maximum switching voltage of 7000 volts AC or DC with a maximum load current of 2 amps, suitable for demanding industrial and electronic control systems. The coil resistance is rated at 150 ohms with a coil power of 50 watts, optimizing energy consumption during operation.

The unit features quick connect terminals facilitating fast and secure PCB mounting and wiring. Its operating temperature range extends from -20°C to +70°C, supporting stable performance under various environmental conditions.

This Reed Relay benefits from a hermetically sealed, vacuum-encapsulated reed switch which provides excellent protection against corrosion and contamination, ensuring a long operational life exceeding one million cycles. Fast actuation with an operating time of 3 ms including contact bounce contributes to responsive switching behavior.

Electrical isolation is robust with 17 kV coil-to-contact isolation and 10 kV contact isolation, complemented by a contact resistance not exceeding 250 mΩ, enhancing signal integrity and reliability in sensitive applications.

The relay is UL approved and designed by Sensata Cynergy3, reflecting high manufacturing standards. It is suitable for various industrial uses including medical equipment like cardiac defibrillators, security systems, high-voltage test equipment, and power supplies.

PCB mount with quick connect terminals for easy installation. 50W switching capacity with high voltage and current ratings. High vacuum, hermetically sealed reed switch for durability. Fast 3 ms operating time for precise switching.

Wide temperature range up to 70°C for operational flexibility. High isolation voltage for safety and signal integrity. Excellent contact resistance specification for low signal loss. UL approved ensuring quality and compliance.

Ideal for industrial, medical, security, and test equipment applications. Explore the extensive catalog of relays and other electronic components available on EnvMart for your electrical and automation needs.
