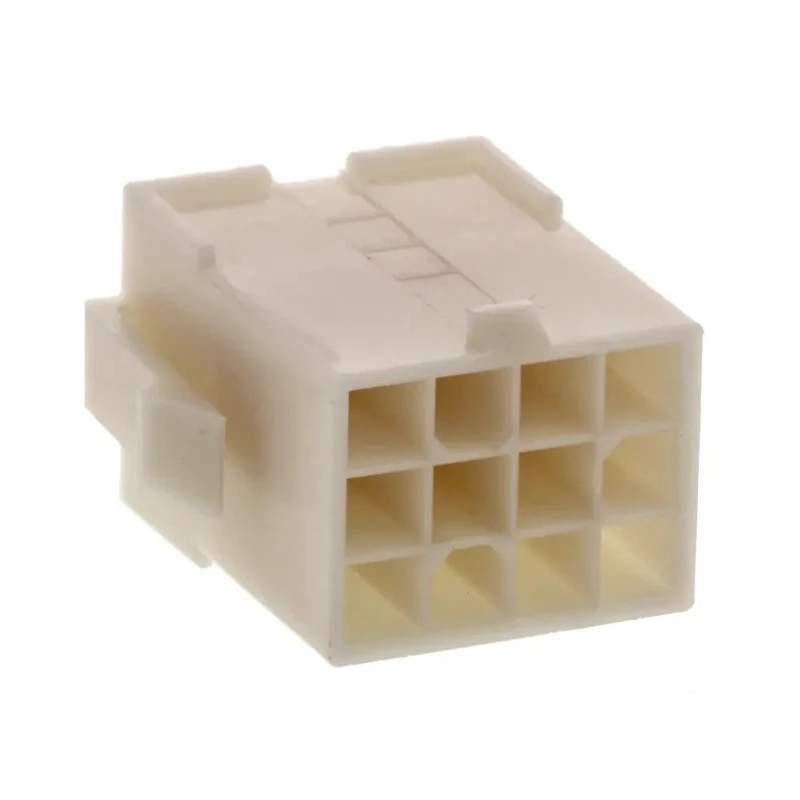

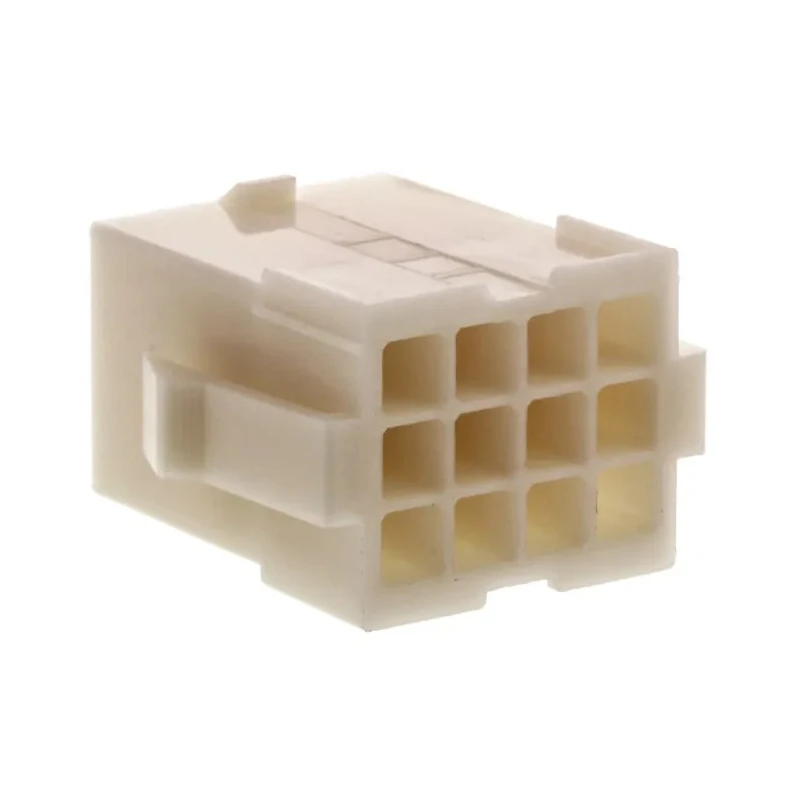

TE Connectivity Mini-Universal MATE-N-LOK Female Connector Housing 12 Way 3 Row 4.2 mm Pitch 26.2 mm Length Nylon 172162-1
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Length | 26.2mm |
| Model | 172162-1 |
| Width | 16mm |
| Mount Type | Panel |
| Housing Material | Nylon |
| Series | Mini-Universal MATE-N-LOK |
| Interfaces | lances |
| Number of Rows | 3 |
| Pitch | 4.2mm |
| For Use With | Wire-to-Board Connector |
| Number of Contacts | 12 |
| Connector Gender | Female |
Key Features
- Features a 4.2 mm pitch to ensure precision in electrical connectivity.
- Constructed from durable nylon material for longevity and resistance.
- Panel mount type design suitable for wire-to-board connector applications.
- Provides 3-row, 12-way housing configuration with a straight orientation.
- Compact dimensions measuring 26.2 mm length and 16 mm width for efficient PCB space utilization.
- Fully polarised with positive locking mechanism for secure mating.
- Compatible with both pin and socket contacts within the same housing.
- Ideal for industrial controls, household appliances, storage, and networking systems.
Product Description
TE Connectivity 172162-1 Mini-Universal MATE-N-LOK Female Connector Housing is a high-quality connector housing designed for wire-to-board applications, featuring a 4.2 mm pitch and a 12-contact, 3-row configuration. Made from robust nylon material, this connector housing ensures durability and reliable performance in various industrial and commercial settings.
The connector features a compact and straight orientation with dimensions of 26.2 mm length and 16 mm width, making it suitable for efficient use on printed circuit boards. Its panel mount type allows for secure mounting in wire-to-board configurations, providing stability in demanding environments.
This Mini-Universal MATE-N-LOK series housing is fully polarised with a positive locking mechanism, ensuring accurate and secure mating. The design accommodates both pin and socket contacts in the same housing, providing flexibility in wiring configurations.
Suitable for applications including household appliances, industrial controls, storage, and networking systems, this connector housing supports reliable and efficient electrical connections. It provides visual confirmation of contact locking via retention lances, enhancing installation confidence.
The housing's natural nylon colour and compact durable design make it practical for a wide range of uses in electronics manufacturing and assembly processes. Features a 4.2 mm pitch to ensure precision in electrical connectivity.
Constructed from durable nylon material for longevity and resistance. Panel mount type design suitable for wire-to-board connector applications. Provides 3-row, 12-way housing configuration with a straight orientation. Compact dimensions measuring 26.2 mm length and 16 mm width for efficient PCB space utilization.
Fully polarised with positive locking mechanism for secure mating. Compatible with both pin and socket contacts within the same housing. Ideal for industrial controls, household appliances, storage, and networking systems.
Explore more electronics components and Connector Housings at EnvMart to find compatible parts for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of the TE Connectivity Mini-Universal MATE-N-LOK Female Connector Housing is 4.2 mm.
This connector housing supports 12 contacts in a 3-row configuration.
The dimensions of this connector housing are 26.2 mm in length and 16 mm in width.
It is constructed from nylon material, which provides durability and resistance.
Yes, this model features a panel mount type design suitable for wire-to-board connector applications.
The connector housing has a straight orientation.
Yes, it is compatible with both pin and socket contacts within the same housing.
It is ideal for applications in industrial controls, household appliances, storage, and networking systems.
Yes, it is fully polarised with a positive locking mechanism for secure mating.
The country of origin for this connector housing is China.
This model belongs to the Mini-Universal MATE-N-LOK series.
It utilizes lances as its interface for secure connections.
