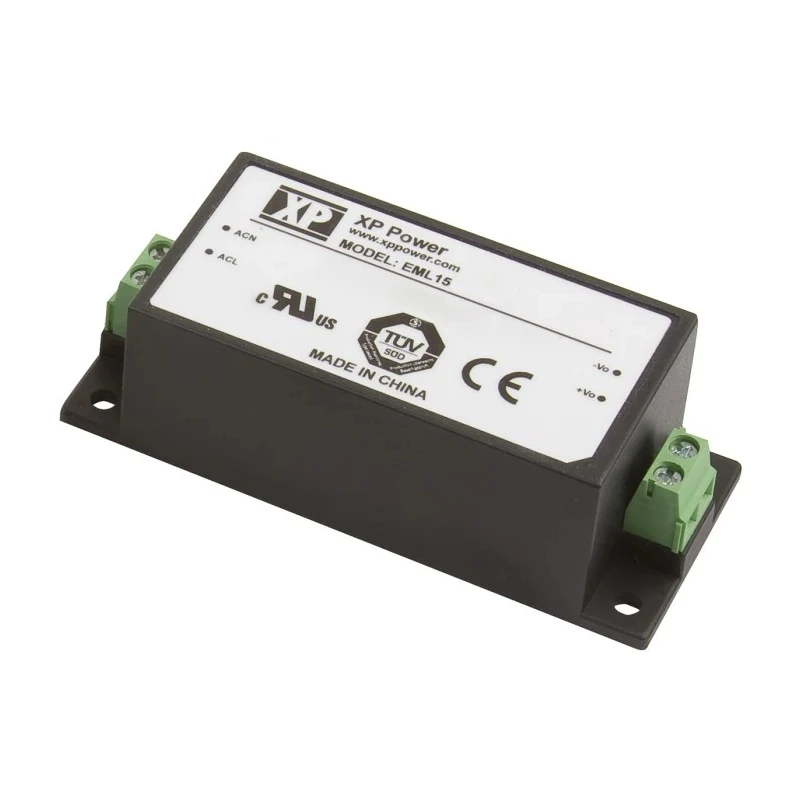

XP Power Switching Power Supply Chassis Mount 3.3V DC 10W 3A 85-264V AC EML15US03-S
Specifications
| Country of Origin | China |
|---|---|
| Brand | XP Power |
| Power | 10W |
| Efficiency | 75% |
| Length | 84mm |
| Model | EML15US03-S |
| Depth | 26.4mm |
| Gross Weight | 110g |
| Width | 34.5mm |
| Mount Type | Chassis |
| Series | EML |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Maximum Output Voltage | 3.3V dc |
| SMPS Output Current | 3A |
| Minimum Input Voltage | 85V ac |
Key Features
- Designed for chassis mounting with compact dimensions.
- Operates within an input voltage range of 85V to 264V AC.
- Meets medical safety standards including ANSI/AAMI ES 60601-1 and IEC 60601-1.
- High efficiency of 75% with class II design and 130%, 30-second peak load capability.
- Wide operating temperature range from -20°C to 70°C.
- Single output model with electrical isolation for medical applications.
- Compact size with 84mm length, 34.5mm width, and 26.4mm depth.
- Weighs 110g, suitable for space-constrained setups.
Product Description
XP Power EML15US03-S is a highly reliable switching power supply designed primarily for medical applications, delivering a stable 3.3V DC output at 10W power capacity and 3A current.
Its chassis mount configuration supports easy integration into medical and industrial equipment with strict size and safety requirements. The unit operates with a wide input voltage range between 85V AC and 264V AC, ensuring compatibility with global power sources.
This power supply meets stringent medical safety standards such as ANSI/AAMI ES 60601-1, EN 60601-1/A12, and IEC 60601-1. It features a class II design that complies with conduction and radiation emission limits, suitable for sensitive environments.
Efficiency is rated at 75%, enabling effective power conversion with reduced heat generation. The design accommodates a peak load capability of 130% for 30 seconds, providing robustness against transient power demands.
The product's operating temperature range spans from -20°C to 70°C, making it reliable in varied workplace conditions. Its compact mechanical dimensions of 84mm length, 34.5mm width, and 26.4mm depth along with a light weight of 110g facilitate installation in dense electronic assemblies.
Typical use cases include medical instrumentation, industrial automation, telecommunications, and laboratory equipment requiring low noise, stable DC voltage sources. Designed for medical and industrial power supply applications.
Wide input voltage compatibility from 85V to 264V AC. Compact chassis-mounted form factor for space savings. High reliability with medical safety approvals. Stable 3.3V DC output at 10W and 3A output current. Class II insulation and low electromagnetic interference.
Durable operation between -20°C and 70°C ambient temperature. Lightweight design weighing 110g for easy installation. Efficient power conversion at 75% efficiency rating.
This switching power supply is part of XP Power's EML series known for quality and compliance with global medical and industrial standards. Browse other power supply solutions on EnvMart for compatible or complementary products to meet your application needs.
Explore more products in our Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This power supply operates within a wide input voltage range of 85V to 264V AC.
The dimensions of this model are 84mm in length, 34.5mm in width, and 26.4mm in depth.
It can provide a maximum output current of 3A.
The efficiency of this model is rated at 75%.
It operates effectively within a temperature range of -20°C to 70°C.
Yes, it meets medical safety standards including ANSI/AAMI ES 60601-1 and IEC 60601-1, making it suitable for medical applications.
It is designed for chassis mounting, facilitating easy integration into equipment.
This model weighs 110g, which aids in installation in space-constrained setups.
Yes, it features a peak load capability of 130% for 30 seconds, accommodating transient power demands.
It is part of the EML series by XP Power, known for compliance with medical and industrial standards.
Typical use cases include medical instrumentation, industrial automation, telecommunications, and laboratory equipment requiring stable DC voltage sources.
