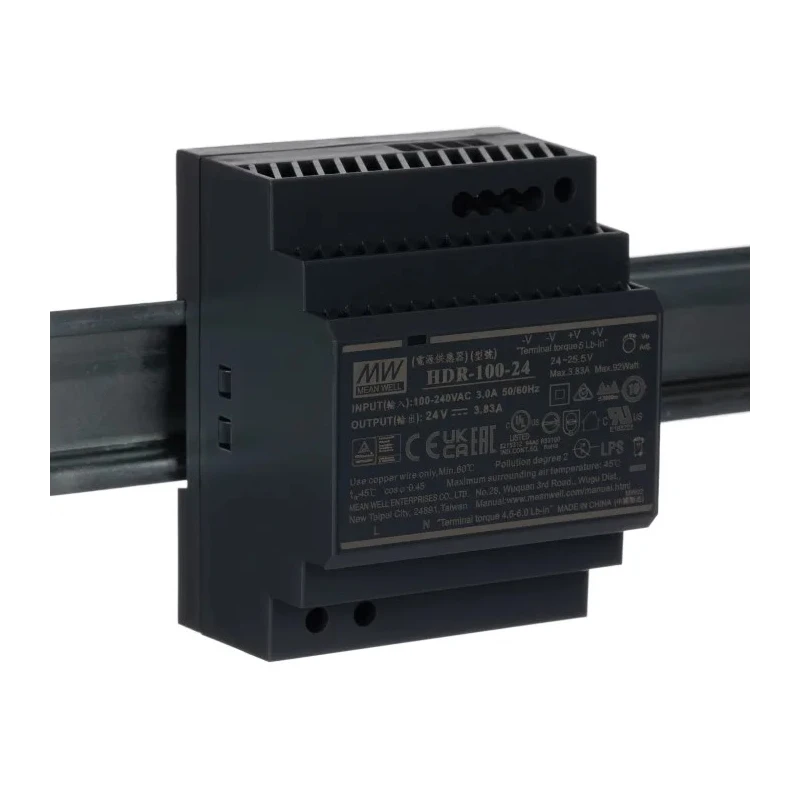

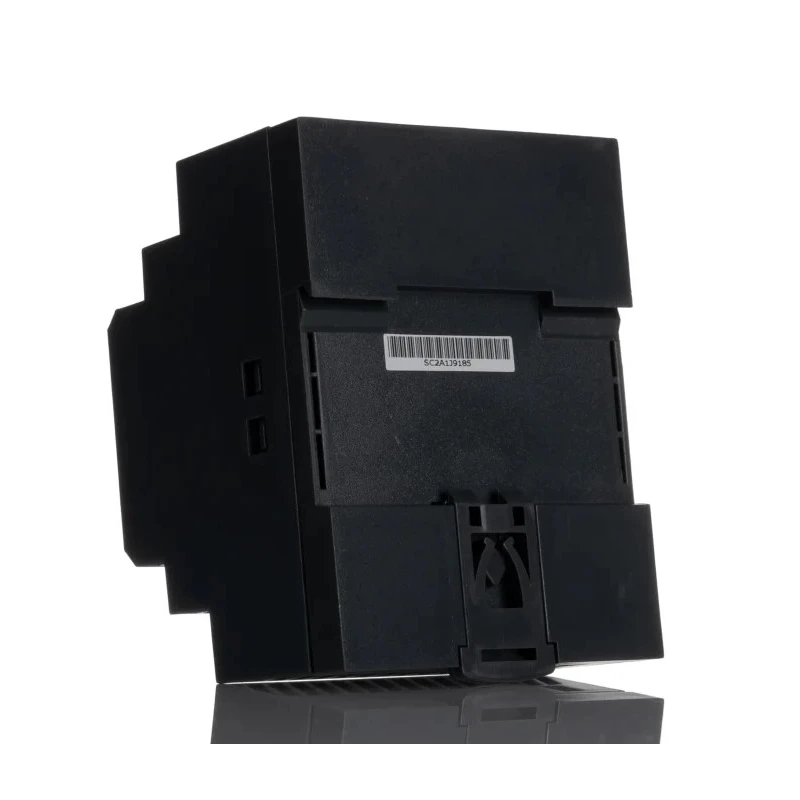

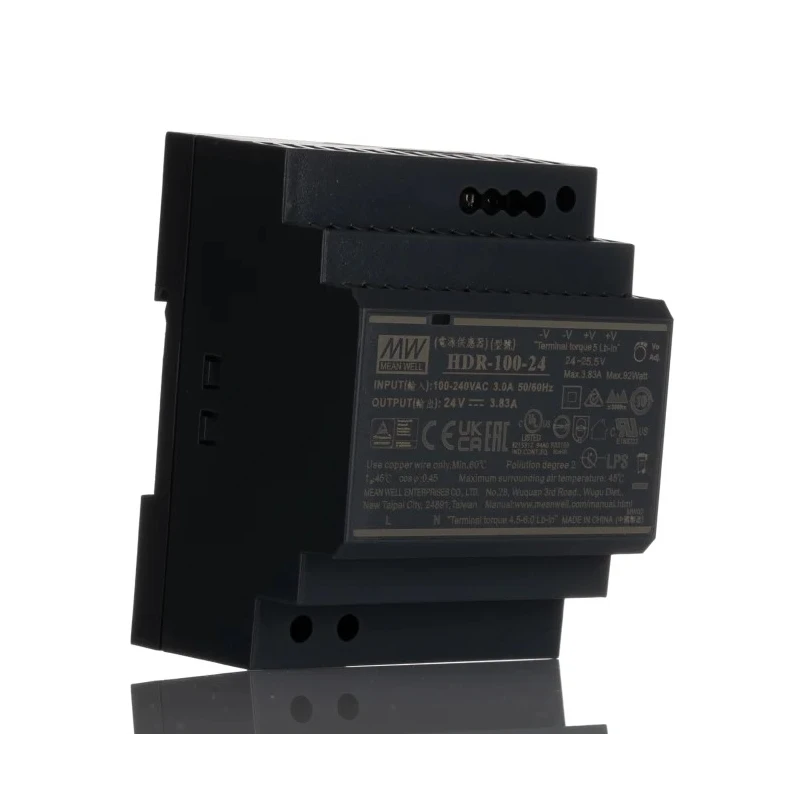

MEAN WELL Ultra Slim Switched Mode DIN Rail Power Supply 24V DC, 3.83A Output, 92W, AC/DC Input HDR-100-24
Specifications
| Country of Origin | China |
|---|---|
| Brand | MEAN WELL |
| Power | 92W |
| Efficiency | 90% |
| Height | 90mm |
| Model | HDR-100-24 |
| Depth | 54.5mm |
| Width | 54.5mm |
| Series | Ultra Slim |
| Output Current | 3.83A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -30°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 264V dc |
| Electrical Phase | 1 |
| Standards/Approvals | RoHS, UL, TUV EN 609501 |
| Maximum Output Voltage | 24V dc |
| Minimum Input Voltage | 85V ac |
Key Features
- This power supply supports a wide AC/DC input voltage range up to 370V DC and 264V AC.
- Compact and space-saving ultra slim design with dimensions of 90mm height and 54.5mm width and depth.
- Features high efficiency up to 90% reducing energy loss during operation.
- Operates reliably in temperatures from -30°C to 70°C.
- Designed with plastic housing providing electrical hazard protection and compliance with RoHS, UL, and TUV EN 60950 safety standards.
- Includes adjustable DC output voltage for flexible applications.
- Suitable for installation on industrial TS-35/7.5 or TS-35/15 DIN rails.
- Isolation Class II design ensures safe operation without earth connection.
Product Description
MEAN WELL HDR-100-24 Ultra Slim Switched Mode DIN Rail Power Supply delivers reliable 24V DC output at 3.83A current with a maximum power of 92W, designed for industrial and electronic component applications.
The power supply supports a full range AC/DC input voltage from 85V AC up to 370V DC and 264V AC, making it adaptable to diverse input sources. Its ultra slim form factor with a compact plastic housing measuring 90mm height and 54.5mm width and depth allows for efficient space utilization inside electrical cabinets.
This model exhibits a high energy efficiency of 90%, significantly reducing power losses and heat generation. It also operates safely across a broad temperature range from -30°C to 70°C, ensuring dependable performance in varying environments.
Engineered to meet RoHS, UL, and TUV EN 60950 safety standards, the unit features an isolation Class II design that prevents electrical hazard risks. The adjustable DC output voltage enhances versatility for different industrial applications.
The HDR series power supply mounts securely on TS-35/7.5 or TS-35/15 DIN rails, facilitating easy installation within electrical distribution systems. This power supply supports a wide AC/DC input voltage range up to 370V DC and 264V AC.
Compact and space-saving ultra slim design with dimensions of 90mm height and 54.5mm width and depth. Features high efficiency up to 90% reducing energy loss during operation. Operates reliably in temperatures from -30°C to 70°C.
Designed with plastic housing providing electrical hazard protection and compliance with RoHS, UL, and TUV EN 60950 safety standards. Includes adjustable DC output voltage for flexible applications. Suitable for installation on industrial TS-35/7.5 or TS-35/15 DIN rails.
Isolation Class II design ensures safe operation without earth connection. Low no-load power consumption for energy savings during idle operation.
This power supply is ideal for industrial automation, manufacturing electronics, control panels, and general power distribution systems needing a compact, high-performance DIN rail mounted unit.
Explore other Power Supplies and electronic components at EnvMart for comprehensive power management solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HDR-100-24 provides a 24V DC output with a current of 3.83A.
This power supply has a maximum power rating of 92W.
It supports an input voltage range from 85V AC up to 370V DC and 264V AC.
The unit has dimensions of 90mm in height, 54.5mm in width, and 54.5mm in depth.
It features a high efficiency of up to 90%, which reduces energy loss during operation.
This power supply operates reliably in temperatures ranging from -30°C to 70°C.
It is designed for installation on TS-35/7.5 or TS-35/15 DIN rails.
It complies with RoHS, UL, and TUV EN 60950 safety standards.
Yes, it includes an adjustable DC output voltage for flexible applications.
It is designed with a plastic housing that provides electrical hazard protection.
This unit operates on a single electrical phase.
The HDR-100-24 is manufactured in China.
