TRACOPOWER Switching Power Supply 9V DC 30W 264V AC Chassis Mount TPP 30-109A-J

Free Delivery in India | Lowest Global Shipping Charges

TRACOPOWER Switching Power Supply 9V DC 30W 264V AC Chassis Mount TPP 30-109A-J

Name: TRACOPOWER Switching Power Supply 9V DC 30W 264V AC Chassis Mount TPP 30-109A-J
Brand: TRACOPOWER
SKU: 95077



Category Power Supplies Brand TRACOPOWER Condition New

Specifications

Country of Origin	Taiwan
Brand	TRACOPOWER
Power	30W
Efficiency	88%
Length	84.8mm
Model	TPP 30-109A-J
Depth	19.6mm
Gross Weight	60.5g
Width	34.6mm
Mount Type	Chassis
Series	TPP 30A-J
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Number of outputs	1
Maximum Input Voltage	264V ac
Maximum Output Voltage	9V dc
SMPS Output Current	3.34A
Minimum Input Voltage	85V ac
Energy Efficiency Level	III

Key Features

Single output with maximum output current of 3.34A.
Supports wide input voltage range from 85V AC to 264V AC.
Efficient operation with 88% energy efficiency and energy efficiency level III.
Operates reliably over temperature range from -40°C to 85°C.
Compact chassis mount with dimensions 84.8mm length, 34.6mm width, and 19.6mm depth.
Complies with medical and safety standards including IEC/EN/ES 60601-1 3rd edition.
Low earth leakage current suitable for BF (body floating) applications.
Designed for industrial and medical applications requiring reinforced double I/O isolation.

Product Description

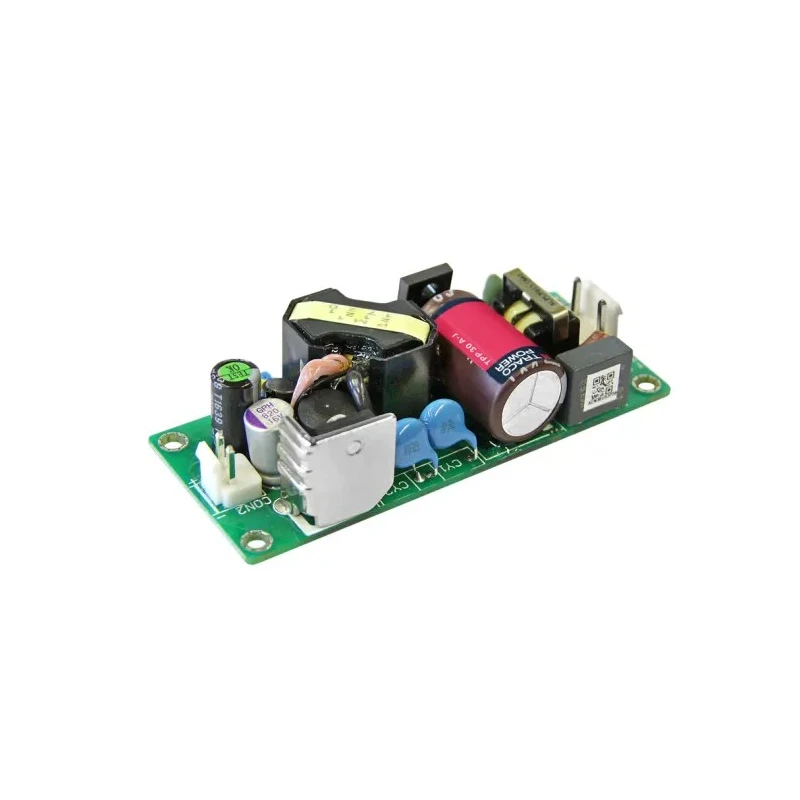

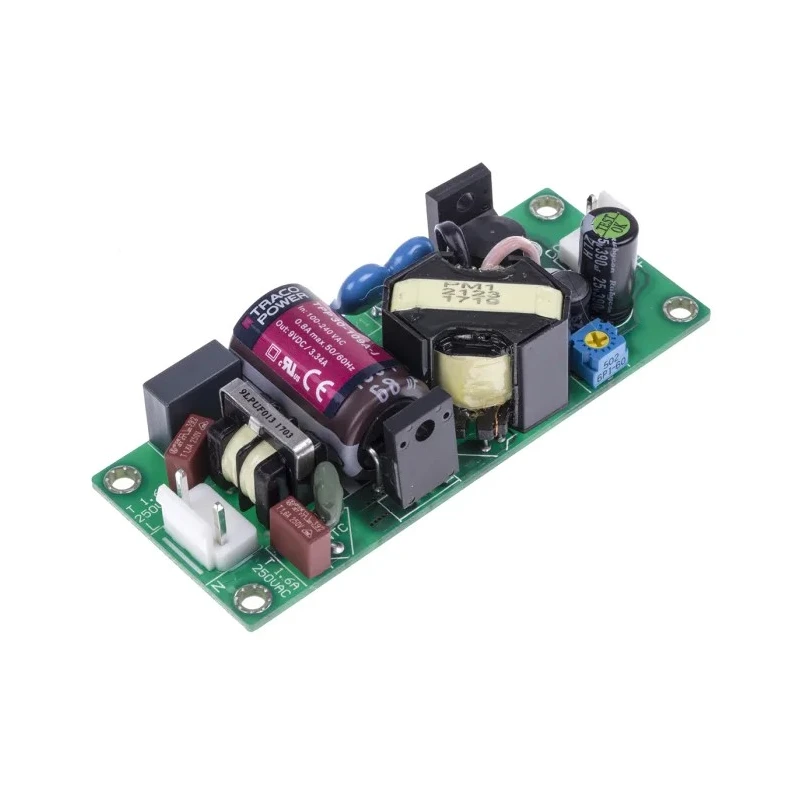

TRACOPOWER TPP 30-109A-J Switching Power Supply is a robust and compact device designed for industrial and medical applications. It provides a stable 9V DC output power of 30 W and supports input voltages from 85V AC to 264V AC, making it suitable for a variety of power environments. The unit utilizes a chassis mount configuration for easy integration into electronic systems.

This power supply features a single output delivering up to 3.34A current with high efficiency of 88%, classified under energy efficiency level III. It operates reliably within a temperature range from -40°C to 85°C, ensuring durability in harsh environments.

The TPP 30-109A-J series incorporates reinforced double input-to-output isolation conforming to medical safety standards IEC/EN/ES 60601-1 3rd edition, offering 2x MOPP (Means of Patient Protection) isolation suitable for critical medical equipment. Its low earth leakage current of less than 100 μA makes it compatible with BF (Body Floating) applications.

The compact dimensions (84.8mm length, 34.6mm width, 19.6mm depth) and lightweight design (60.5 grams) provide high power density in a small footprint. The equipment meets multiple international safety approvals including EN 60601-1, UL 62368-1, IEC 62368-1, and ANSI/AAMI ES 60601-1 standards.

This switching power supply is ideal for medical devices, industrial automation, communication equipment, and other applications where reliable and efficient DC power conversion is required. Its reinforced isolation and low leakage current ensure safe operation in sensitive environments.

Single output of 9V DC at 3.34A current. Wide input voltage range from 85V AC to 264V AC. Compliance with medical isolation standards IEC/EN/ES 60601-1 3rd edition. Low earth leakage current below 100 μA suitable for BF applications.

High efficiency up to 88% with energy efficiency level III. Compact chassis mount design with dimensions 84.8 x 34.6 x 19.6 mm. Operating temperature range from -40°C to 85°C. Lightweight unit approximately 60.5 grams. Suitable for industrial, medical, and automation applications.
