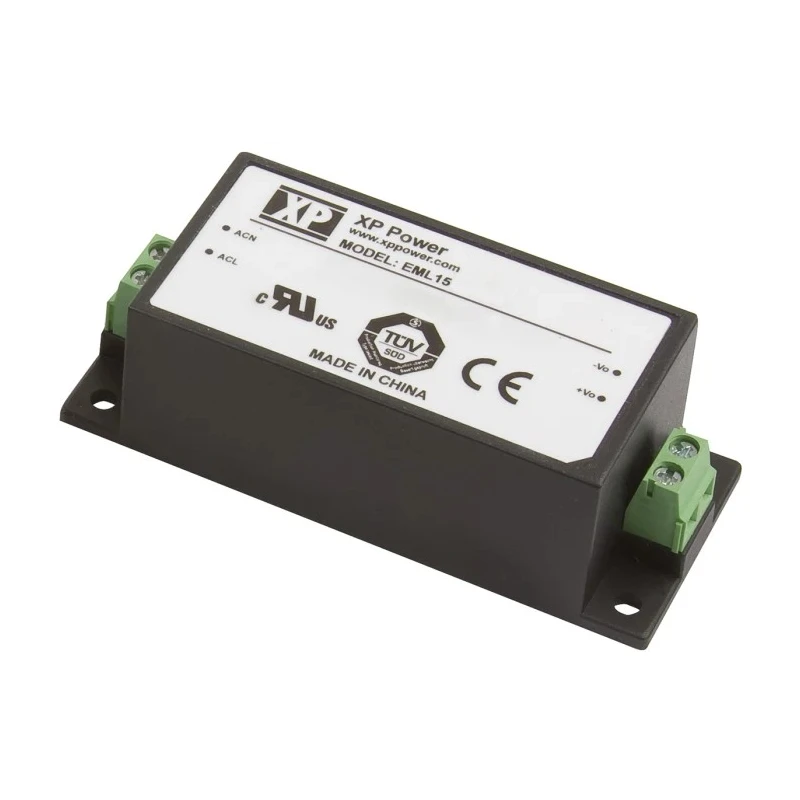

XP Power EML15US05-S Switching Power Supply 5V DC 15W 264V AC Chassis Mount Medical Grade EML Series

XP Power EML15US05-S is a high-quality switching power supply from the EML15 series delivering 15W power at 5V DC output voltage. It is designed primarily for medical applications where meeting worldwide safety standards is critical. This chassis-mount power supply supports input voltages from 85V AC to 264V AC, accommodating global power requirements.

The unit operates efficiently at 78% efficiency and has a wide operating temperature range from -20°C to 70°C to ensure stable functionality across diverse environments. With a single output providing 3A current, it features a compact form factor measuring 84mm in length, 34.5mm in width, and 26.4mm in depth, weighing just 110 grams, making it easy to integrate into medical and industrial electronic systems.

The EML15 series is built with Class II design for enhanced electrical safety and includes a 130%, 30-second peak load capability, allowing for reliable short-duration load surges without damage. It complies with ANSI/AAMI ES 60601-1, EN 60601-1/A12, and IEC 60601-1 medical safety standards, ensuring suitability for healthcare equipment applications. Its open frame and encapsulated construction options provide versatile mounting configurations.

This power supply is ideal for use in industrial, medical, laboratory, and electronic manufacturing environments that demand dependable power sources conforming to rigorous safety and performance requirements.

Compact chassis mount design suitable for medical applications. Operating temperature range of -20°C to 70°C ensures reliability. Single output with 3A SMPS output current. High efficiency of 78% reduces energy loss. Wide input voltage range from 85V AC to 264V AC supports global use.

Complies with ANSI/AAMI ES 60601-1, EN 60601-1/A12, and IEC 60601-1 standards. Lightweight at 110 grams for easy integration. 130%, 30-second peak load capability enables handling of transient loads. Class II design enhances safety without earth connection.

Suitable for medical, industrial, and laboratory equipment applications. Explore EnvMart's extensive selection of power supplies and Switching Power Supplies for industrial and medical electronics applications.
