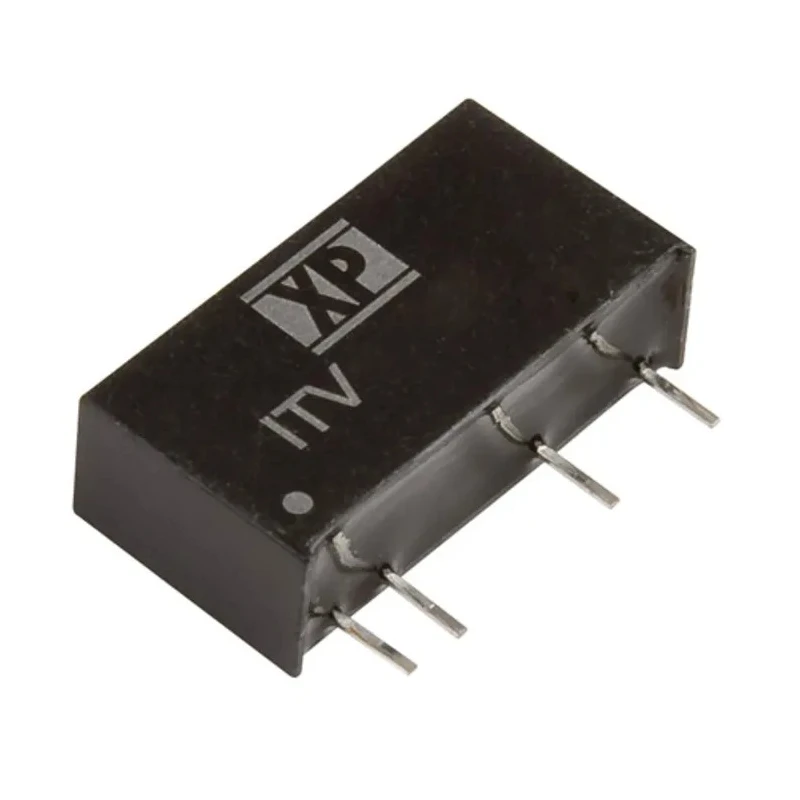

XP Power Isolated Through Hole DC/DC Converter 15V dc 66mA 1W SIP Package ITV0515SA
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power ITV DC/DC Converter, 15V dc/ 66 mA, 5 |
| Brand | XP Power |
| Efficiency | 80% |
| Length | 19.5mm |
| Model | ITV0515SA |
| Depth | 10mm |
| Width | 6mm |
| Mount Type | Through Hole |
| Series | ITV |
| Maximum Operating Temperature | 105°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 3600000h |
| Number of outputs | 1 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 5.5V dc |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 7 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 66mA |
| Isolation Voltage | 3kV dc |
Key Features
- Single output DC/DC converter with industry standard pinout.
- SIP package type with 7 pins for through-hole mounting.
- Wide input voltage range from 4.5V to 5.5V DC.
- Isolation voltage of 3kV DC for reliable electrical isolation.
- Operating temperature range from -40°C to 105°C suitable for harsh environments.
- High MTBF of 3.6 million hours indicating excellent reliability.
- Efficiency rating of approximately 80% ensures energy-saving operation.
- Manufactured in Taiwan, Province Of China.
Product Description
XP Power ITV0515SA is an isolated DC/DC converter designed for reliable power conversion in electronic systems requiring isolation and stable output voltage. This 1-watt converter provides 15V DC output at 66mA current from a low-voltage DC input range between 4.5V and 5.5V. Its through-hole SIP package with 7 pins enables easy integration into printed circuit boards.
The converter supports high isolation voltage of 3kV DC, providing excellent protection against electrical interference and grounding issues, which is essential in industrial and commercial electronics.
With a robust operating temperature range from -40°C to 105°C at full load (95°C ambient), this converter is well suited for harsh environmental conditions common in industrial applications. The design features a mean time between failure (MTBF) of 3.6 million hours, highlighting its durability and reliability in continuous operation.
The compact form factor (19.5mm length, 10mm depth, 6mm width) and 80% efficiency rating make it ideal for space-restricted systems requiring energy-efficient power conversion. Single output DC/DC converter with industry standard pinout.
SIP package type with 7 pins for through-hole mounting. Wide input voltage range from 4.5V to 5.5V DC. Isolation voltage of 3kV DC for electrical safety. Operating temperature range from -40°C to 105°C. High reliability with MTBF of 3.6 million hours.
Compact size: 19.5 x 10 x 6 mm dimensions. Efficiency of 80% minimizes power loss. Manufactured in Taiwan, Province Of China.
This DC/DC converter from XP Power is ideal for industrial, laboratory, telecommunications, and instrumentation applications that require stable, isolated power conversion with minimal footprint. It is a robust solution for designers looking for a reliable 1W converter in a through-hole SIP form factor.
Explore more DC/DC Converters and power solutions at EnvMart for a comprehensive range of power management components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ITV0515SA provides an output voltage of 15V DC with a maximum output current of 66mA.
This model operates within a wide input voltage range of 4.5V to 5.5V DC.
It features a high isolation voltage of 3kV DC, ensuring reliable electrical isolation.
The dimensions of the SIP package are 19.5mm in length, 10mm in depth, and 6mm in width.
The efficiency rating of the ITV0515SA is approximately 80%, which helps minimize power loss.
This converter operates within a temperature range of -40°C to 105°C, making it suitable for harsh environments.
The ITV0515SA has 7 pins for through-hole mounting, following an industry-standard pinout.
The MTBF for the ITV0515SA is 3.6 million hours, indicating excellent reliability.
This unit utilizes a through-hole mounting type, suitable for integration into printed circuit boards.
It is suitable for industrial, laboratory, telecommunications, and instrumentation applications requiring stable, isolated power conversion.
The ITV0515SA is manufactured in Taiwan, Province Of China.
The maximum output power of this converter is 1W.
