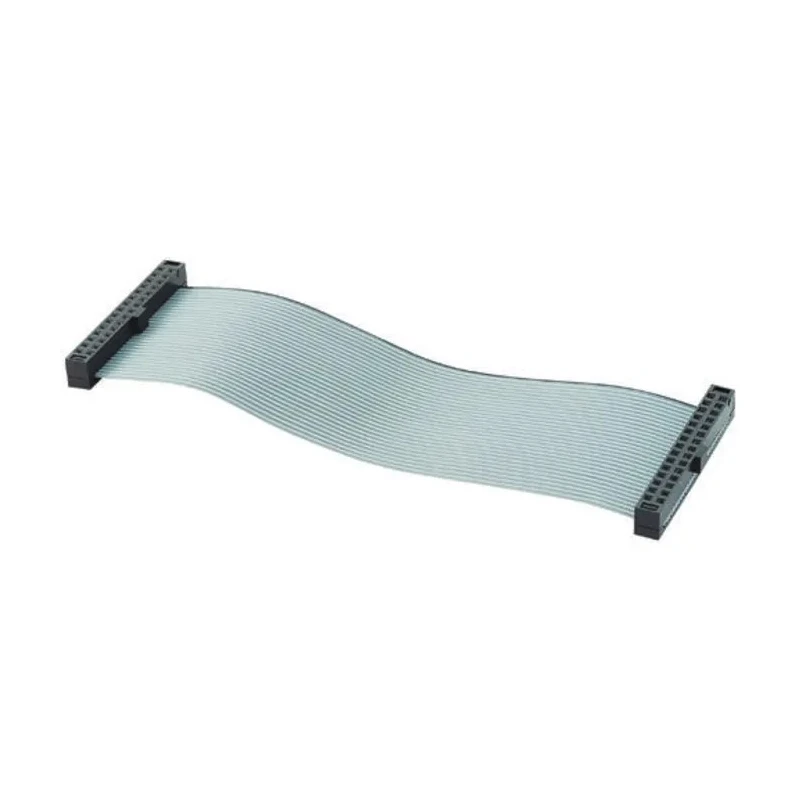

Samtec TCSD Series Flat Ribbon IDC Socket Cable Assembly 100 mm Length TCSD-25-D-04.00-01-N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Model | TCSD-25-D-04.00-01-N |
| Cable Length | 100mm |
| Series | TCSD |
| Cable Type | Flat Ribbon |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | RoHS Compliant, UL |
| Connector Type A | TCSD IDC |
| Connector Gender A | Female |
| Jacket Colour | Grey |
| Contact Gender A | Female |
Key Features
- Features a 2.00mm pitch double row female IDC socket connector on both ends.
- Constructed with 28 AWG 7/36 stranded tinned copper wires with PVC insulation.
- Ribbon cable jacket is made from grey polyvinyl chloride for durability and flexibility.
- Complies with RoHS and UL standards ensuring safety and quality.
- Gold plated Tiger Eye contacts ensure excellent electrical connection and corrosion resistance.
- Polarizing notch enhances accurate mating and prevents incorrect connections.
- Ideal for wire-to-board applications requiring compact, flat ribbon cable assemblies.
Product Description
Samtec TCSD-25-D-04.00-01-N flat ribbon IDC socket cable assembly delivers a robust and high-performance wire-to-board connectivity solution. Manufactured with precision, this cable includes a 2.00mm pitch double row female IDC socket connector at each end, making it suitable for reliable and accurate electronic interconnections.
The assembly uses 28 AWG 7/36 stranded tinned copper conductors insulated by polyvinyl chloride (PVC), providing flexibility and mechanical durability. The grey PVC jacket protects the cable while remaining pliable for easy routing in confined spaces.
Gold-plated Tiger Eye contacts provide improved conductivity and resistance to corrosion, ensuring long-term reliability in demanding electronic environments. Additionally, the polarizing notch feature guarantees the cable is mated correctly, minimizing connection errors during installation.
This product complies with RoHS and UL standards, reflecting its adherence to environmental and safety regulations. 2.00mm pitch double row female IDC socket connectors on both ends. 28 AWG stranded tinned copper wire with PVC insulation for durability.
Grey polyvinyl chloride jacket enhances cable protection and flexibility. Gold plated IDC Tiger Eye contacts for reliable conductivity. Polarizing notch to ensure correct mating and installation. RoHS compliant and UL approved, suitable for industrial electronics.
100 mm cable length ideal for compact wire-to-board applications.
This flat ribbon IDC socket cable is widely used in industrial automation, electronics manufacturing, and commercial equipment wiring harnesses. Its compact and precise configuration supports efficient signal transmission with minimal crosstalk, making it indispensable in high-density electronic assemblies.
Explore more in our Ribbon Cable category for additional cable assembly solutions from Samtec and other premium brands at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The length of this cable assembly is 100 mm.
It features a 2.00mm pitch double row female IDC socket connector on both ends.
The assembly uses 28 AWG stranded tinned copper wires insulated with polyvinyl chloride (PVC), and the jacket is made from grey PVC.
This product complies with RoHS and UL standards, ensuring adherence to safety and environmental regulations.
The gold plated Tiger Eye contacts enhance conductivity and provide corrosion resistance, ensuring reliable electrical connections.
The polarizing notch ensures correct mating of the connectors, minimizing the risk of incorrect connections during installation.
The jacket color of this cable assembly is grey.
It is ideal for wire-to-board applications and is widely used in industrial automation, electronics manufacturing, and commercial equipment wiring harnesses.
The connectors have a pitch size of 2.00 mm.
The 28 AWG stranded tinned copper wire provides flexibility and mechanical durability, making it suitable for compact applications.
This cable assembly is manufactured in India.
This assembly is classified as a flat ribbon cable.
