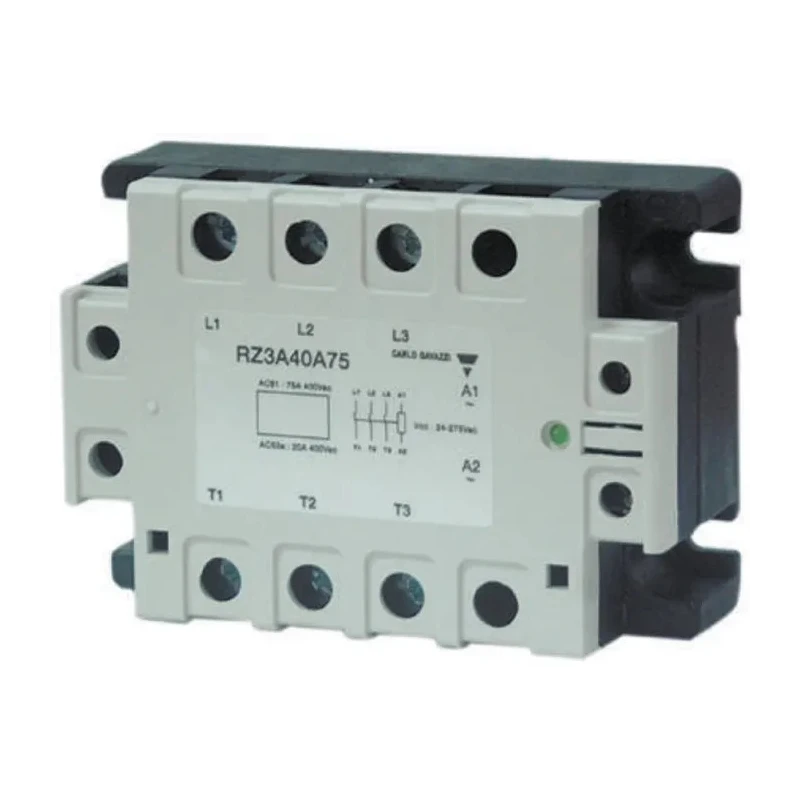

Carlo Gavazzi Solid State Relay Panel Mount 75 A Load Current 660 V Load Voltage 32V Control RZ3A
Specifications
| Country of Origin | Malta |
|---|---|
| Frequency | 45 → 65 Hz |
| Brand | Carlo Gavazzi |
| Height | 41mm |
| Length | 103mm |
| Model | RZ3A |
| IP Rating | IP10 |
| Width | 73.5mm |
| Mount Type | Panel |
| Output type | Thyristor |
| Series | RZ3A |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | 3PST |
| Minimum Operating Temperature | -30°C |
| Terminal type | Screw |
| Switching Function | Zero Cross Switching |
| Maximum Load Current | 75A |
| Standards/Approvals | CE, EAC |
| Maximum Load Voltage | 660V |
| Minimum Load Voltage | 42V ac |
| Minimum Control Voltage | 4V |
| Maximum Control Voltage | 32V |
| Off State Leakage Current | 3mA |
Key Features
- This relay supports zero cross switching function for reliable operation.
- The contact configuration is 3PST with screw terminal type for secure connections.
- Rated for control voltages ranging from 4V to 32V and load voltage up to 660V AC.
- IP10 enclosure rating protects against solid objects and dust ingress.
- Operates effectively within -30°C to 80°C temperature range for diverse environments.
- Features an integrated mains filter and LED indicator for control voltage presence.
- Thyristor output type ensures efficient solid state switching performance.
- Designed for three-phase AC load applications at frequency range 45 to 65 Hz.
Product Description
Carlo Gavazzi RZ3A60D75 is a robust solid state relay designed for panel mounting in industrial control and automation systems. It supports a maximum load current of 75 amps and can handle load voltages up to 660 volts, making it ideal for three-phase AC load switching applications.
The device features a zero cross switching function that minimizes electrical noise and inrush currents, enhancing operational reliability and longevity. It is equipped with screw terminals and a 3PST contact configuration suitable for secure electrical connections in panel installations.
The relay accepts a control voltage range of 4 to 32 volts, with an integrated LED indicator providing visual confirmation of control voltage presence. Its IP10 rating provides basic protection against solid objects and dust.
Operating reliably within a wide temperature range from -30°C to +80°C, the relay incorporates a mains filter to suppress electrical noise, suitable for demanding industrial environments. The thyristor output type warrants efficient solid state switching.

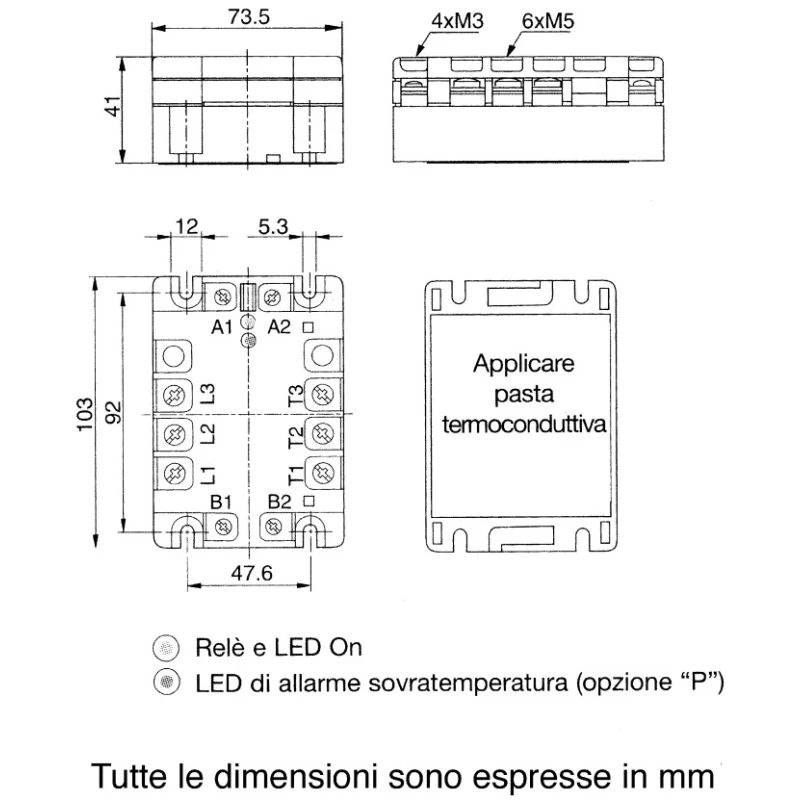

The compact dimensions of 103mm length, 73.5mm width, and 41mm height allow convenient installation in standard electrical panels. Certified with CE and EAC approvals, and manufactured in Malta, this relay confirms conformity to international standards.
This relay supports zero cross switching for stable load switching. Features screw terminal type and 3PST contact configuration. Controls voltage range from 4V to 32V with LED indication. IP10 rating ensures protection against dust and solid objects.
Operates between -30°C and 80°C temperature range. Integrated mains filter reduces electrical noise interference. Compact panel mount design with dimensions 103 x 73.5 x 41 mm. Thyristor output provides efficient solid state operation.
Supports three-phase AC load and frequency range 45-65 Hz. Certified to CE and EAC standards, made in Malta.
Applications include industrial automation, electrical control panels, manufacturing systems, and motor control where reliable and silent switching is required. Carlo Gavazzi's RZ3A60D75 delivers robust performance for modern electrical systems.
Explore Carlo Gavazzi Solid State Relays and related automation products at EnvMart for your industrial electrical needs.
