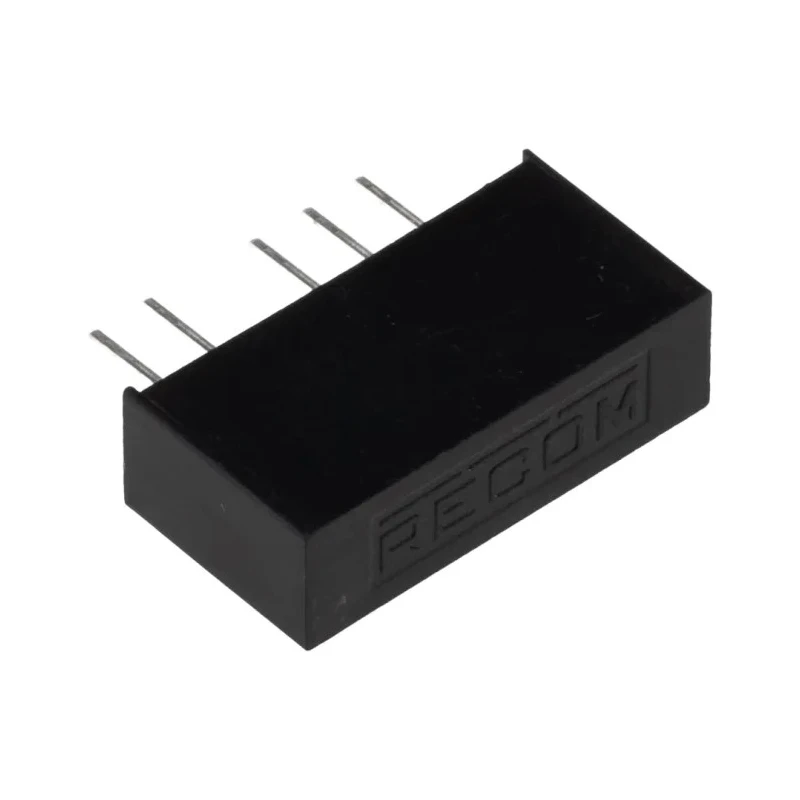

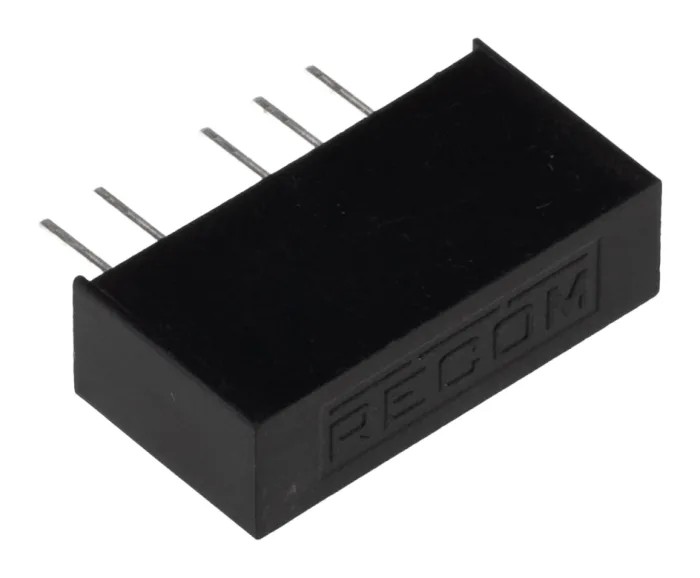

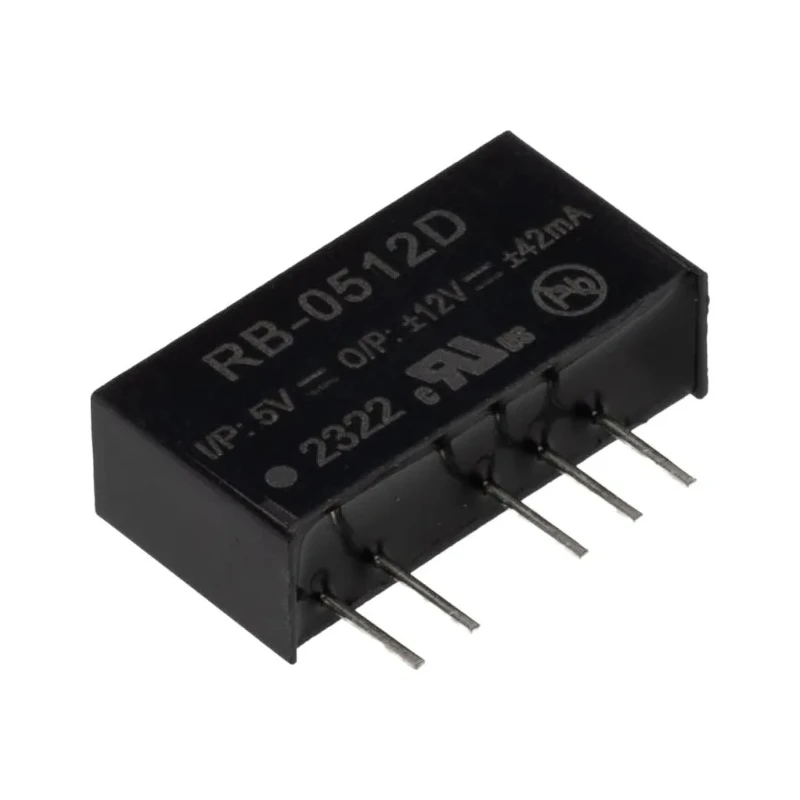

Recom 1W SIP Single/Dual Output Unregulated Isolated DC/DC Converter, 12V dc / -12 V dc, 42 mA Output Current, 5V RB-0512D

Recom RB-0512D is a highly efficient and reliable 1W SIP single/dual output unregulated isolated DC/DC converter designed for industrial and electronic applications. It operates with a 5V DC input voltage range from 4.5V minimum to 5V maximum, providing dual output voltages of 12V DC and -12V DC with an output current of up to 42 mA. This device is packaged in a SIP7 form factor with through-hole mounting capability and an industry standard pin configuration.

Operating comfortably within a temperature range of -40°C to 85°C, this converter can withstand harsh environments without derating. It offers an isolation voltage of 500V AC for electrical noise suppression and safe circuit separation. The RB-0512D delivers a maximum output power of 1 watt with an efficiency rating of 82%, making it suitable for power-sensitive applications.

Its compact dimensions of 19.6mm length, 10.2mm width, and 10.2mm depth and a light weight of 2.2 grams allow it to be integrated easily into compact designs. The SIP package type adheres to UL94V-0 flammability standards for enhanced safety. The converter complies with industry standards including RoHS and UR approvals ensuring quality and regulatory compliance.

This DC/DC converter is ideal for industrial automation, electronic power supplies, embedded systems, instrumentation, and similar applications requiring isolated voltage conversion and regulated output power. The device’s robust performance, high isolation, and thermal stability make it a dependable component in demanding power management designs.

This DC/DC converter features a 12V dc and -12 V dc output with a maximum output current of 42 mA. The input voltage range is from 4.5V dc minimum up to 5V dc maximum. It has a SIP7 package with industry-standard pin-outs optimized for PCB insertion.

The device supports an operating temperature range from -40°C to 85°C without derating. It delivers an output power of 1 watt with an efficiency of up to 82% for energy savings. An isolation voltage of 500V AC ensures reliable electrical separation between input and output.

The compact size includes dimensions of 19.6mm length, 10.2mm width, and 10.2mm depth with a weight of 2.2 grams. The product conforms to RoHS and UR safety standards for quality and compliance. It is designed for industrial, electronic, and power management applications requiring isolated DC/DC voltage conversion.

Its SIP package type makes it compatible for through-hole mounting on printed circuit boards. Explore more Electronic Components and DC/DC Converters on EnvMart to find compatible devices and power management solutions that meet your system requirements.
