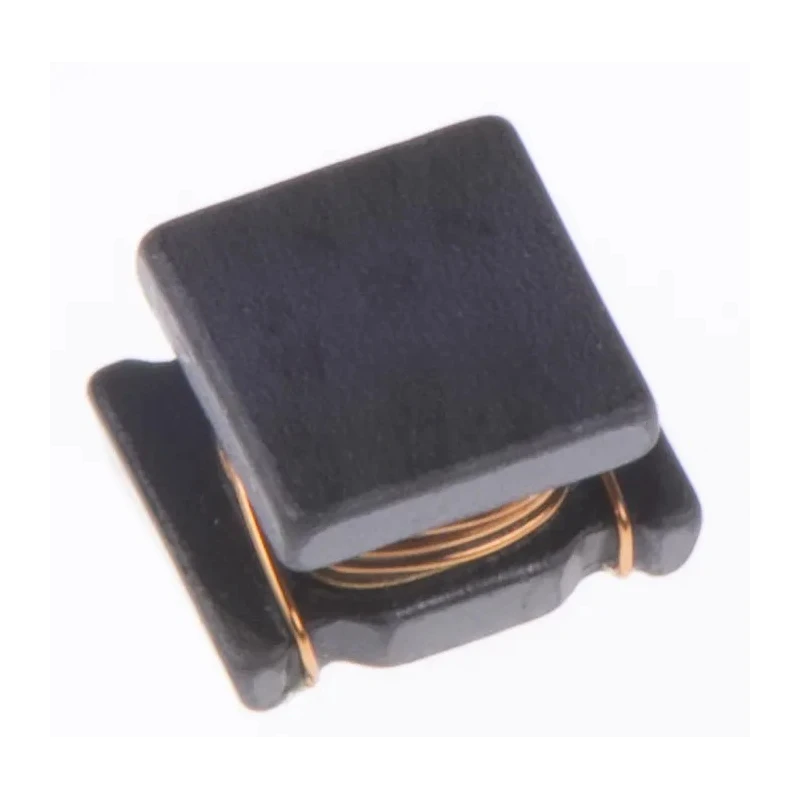

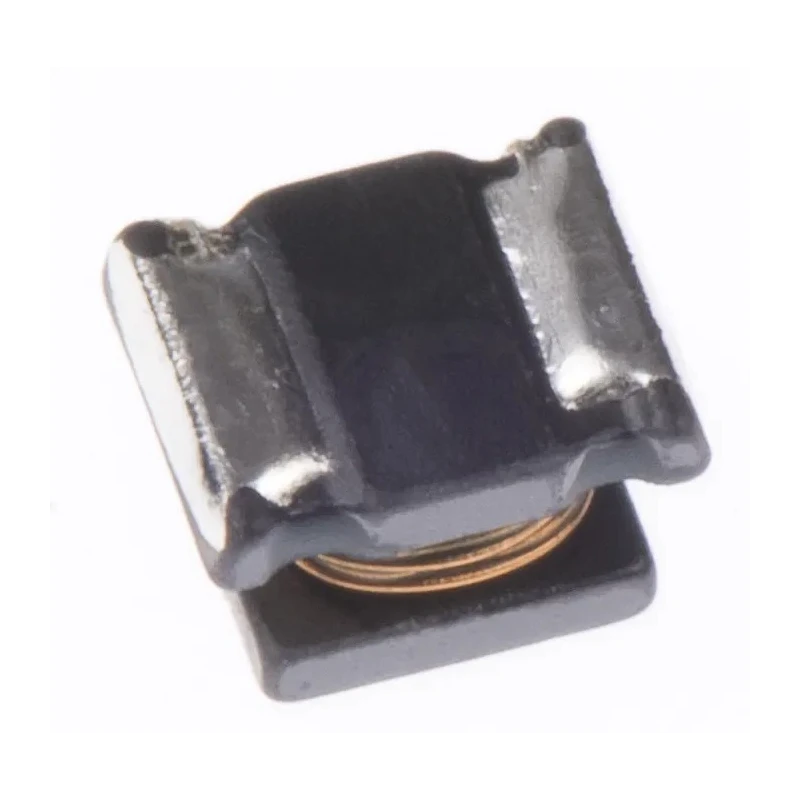

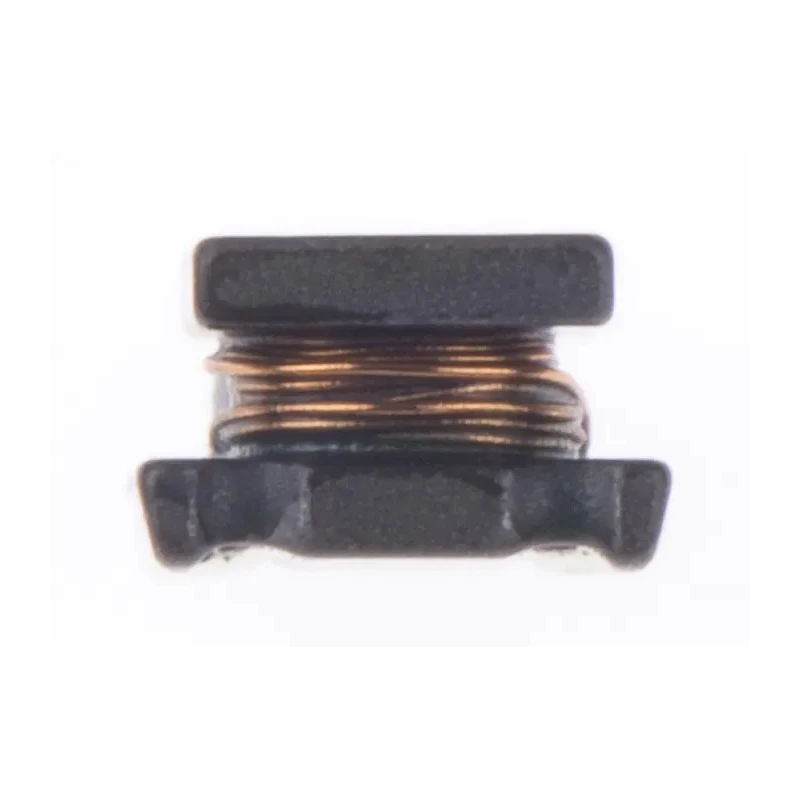

Murata Wirewound Surface Mount Inductor 22 μH ±10% 250 mA 1210 Package Ferrite Core LQH32CN220K23L
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 2mm |
| Length | 3.2mm |
| Model | LQH32CN220K23L |
| Depth | 2.5mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Package/Case | 1210 |
| Maximum DC Current | 250mA |
| Pin Count | 2 |
| Maximum DC Resistance | 710mΩ |
| Inductance Tolerance | ±10 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 19MHz |
| Inductor Construction | Wirewound |
| TDK, NLFC4532 Wire-wound SMD Inductor 22 μH ±10% Wire-Wound 170mA Idc Q | 10Brand: TDK |
Key Features
- Compact 1210 package with dimensions 3.2mm x 2.5mm x 2mm for efficient PCB mounting.
- Constructed with a ferrite core for stable magnetic performance and low DC resistance.
- Offers high temperature stability with an operating range from -40°C to 85°C.
- RoHS compliant and suitable for surface mount applications requiring low voltage drop.
- Ideal as a filtration inductor in switch mode power supplies and other electronic circuits.
- Features solder termination style and an embossed tape packaging for automated assembly.
- Maximum self-resonant frequency of 19 MHz ensuring effective performance in high-frequency circuits.
Product Description
Murata's LQH32CN220K23L is a wirewound Surface Mount Inductor featuring a high-quality ferrite core. This component delivers an inductance of 22 μH with a tolerance of ±10%, designed for applications demanding stable magnetic characteristics and low DC resistance. Measuring 3.2mm in length, 2.5mm in depth, and 2mm in height, it fits compactly in a 1210 package case suitable for space-constrained printed circuit boards.
The inductor supports a maximum DC current of 250 mA and operates reliably within a temperature range of -40°C to 85°C. Its solder termination style ensures secure mounting, and the product is supplied on embossed tape packaging, facilitating efficient automated assembly processes. Murata’s LQH series inductors are RoHS compliant, ensuring conformance with environmental standards.
This LQH32CN220K23L inductor is well-suited for use as a filtration component in switch mode power supplies, providing excellent voltage stability and minimal energy loss. It also features a maximum DC resistance of 710 mΩ and a maximum self-resonant frequency of 19 MHz, making it suitable for various electronic components and circuits requiring precise inductance and effective EMI filtering.
The wirewound construction combined with the ferrite core offers enhanced magnetic performance and temperature stability. Its unshielded design allows for integration in typical surface mount electronic assemblies where space efficiency and electrical reliability are paramount.
Originating from Japan, this Murata inductor represents a new, robust addition to any electronic design requiring consistent inductance values under varying environmental conditions.
Compact 1210 package with exact dimensions for precise PCB layout. Ferrite core enables stable magnetic properties and low noise. Wide operating temperature range from -40°C to 85°C suitable for industrial use. RoHS compliant to meet environmental and safety standards.
Low DC resistance of 710 mΩ reduces power loss in circuits. Embossed tape packaging supports high volume automated PCB assembly. Maximum self-resonant frequency of 19 MHz for high frequency applications.
Browse Murata inductors and other electronic components on EnvMart for reliable parts supporting industrial, laboratory, construction, HVAC, manufacturing, and electronic design applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance value of 22 μH with a tolerance of ±10%.
The maximum DC current rating for this inductor is 250 mA.
The dimensions of the 1210 package are 3.2 mm in length, 2.5 mm in depth, and 2 mm in height.
It operates reliably within a temperature range from -40°C to 85°C.
The maximum self-resonant frequency of this inductor is 19 MHz.
This inductor is constructed with a ferrite core, which provides stable magnetic performance.
It is supplied on embossed tape packaging, which facilitates automated assembly processes.
The maximum DC resistance of this model is 710 mΩ, which helps reduce power loss in circuits.
This unit features a solder termination style for secure mounting on PCBs.
Yes, this inductor is RoHS compliant, ensuring it meets environmental standards.
It is well-suited for use as a filtration component in switch mode power supplies and other electronic circuits.
This inductor belongs to the Murata LQH series, known for its wirewound construction.
