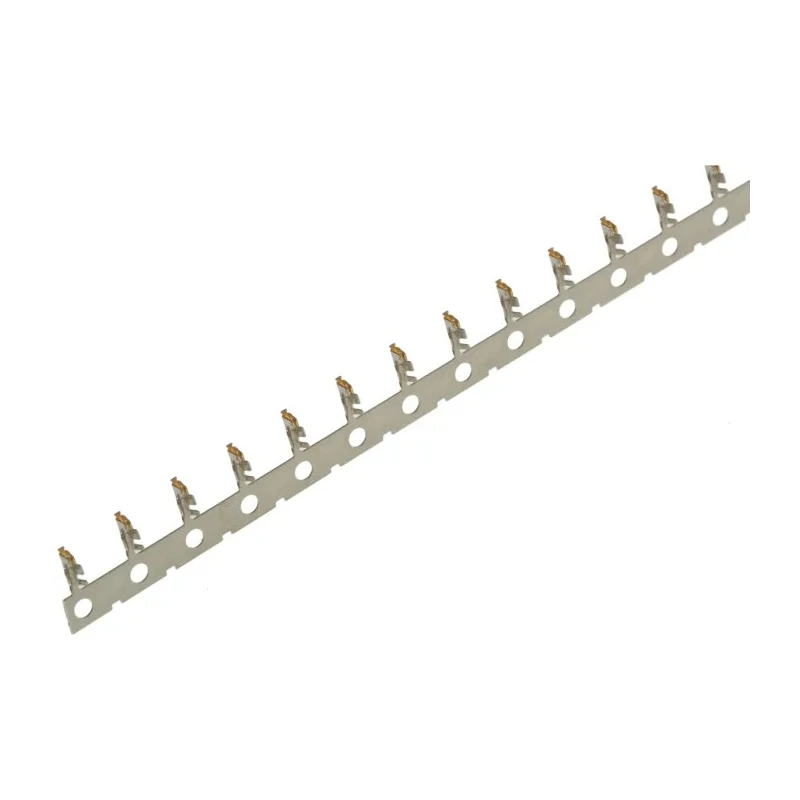

Hirose Female Crimp Terminal DF20 Series for 30-28 AWG Wire, 1A, Gold Plated Copper Alloy Contacts

Free Delivery in India | Lowest Global Shipping Charges

Hirose Female Crimp Terminal DF20 Series for 30-28 AWG Wire, 1A, Gold Plated Copper Alloy Contacts

Name: Hirose Female Crimp Terminal DF20 Series for 30-28 AWG Wire, 1A, Gold Plated Copper Alloy Contacts
Brand: Hirose
SKU: 188195
Price: 0.05 USD
Availability: InStock



Category Crimp Contacts Brand Hirose Condition New

Specifications

Country of Origin	Japan
Brand	Hirose
Current	1A
Model	DF20
Gender	Female
Contact Material	Copper Alloy
Series	DF20
Termination Type	Crimp
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-35°C
For Use With	DF20A Connector Housing
Contact Plating	Gold
Maximum Wire Size mm²	0.08mm²
Minimum Wire Size AWG	30AWG
Maximum Wire Size AWG	28AWG
Maximum Contact Resistance	30mΩ

Key Features

Designed specifically for DF20A connector housing applications.
Gold plating ensures reliable electrical contact and corrosion resistance.
Constructed from copper alloy for excellent conductivity and durability.
Supports a continuous current rating of 1 ampere.
Operates reliably between -35°C and 85°C temperature range.
Contact resistance is kept below 30 milliohms for optimal performance.
Features a crimp termination type for secure wire attachment.
Manufactured in Japan adhering to precision quality standards.

Product Description

Hirose DF20F-2830SCFA female crimp terminal is engineered for use with DF20 series socket connectors, specifically designed for wire sizes ranging from 30 AWG minimum to 28 AWG maximum. This crimp receptacle contact offers a reliable and secure electrical connection with gold-plated phosphor bronze contacts, enhancing corrosion resistance and conductivity in industrial electronic assemblies.

The terminal supports a current rating of 1 ampere and is suitable for operating temperatures ranging from -35°C to 85°C, ensuring stable performance in varied environments including industrial automation, electronic equipment manufacturing, and PCB connector applications.

The contact resistance is maintained at a maximum of 30 milliohms, supporting efficient current flow and signal integrity. The crimp termination style provides a robust mechanical and electrical connection with wires, making it suitable for precise PCB wiring tasks.

Manufactured in Japan, this component embodies quality and reliability expected from the Hirose DF20 series family, featuring a low-profile 1.0mm double-row connector pitch that allows compact and efficient connector designs with a mating height above PCB of 5.8mm.

Designed for use with DF20A connector housing and compatible socket connectors. Gold-plated copper alloy contacts ensure longevity and superior electrical performance. Suitable for 30 to 28 AWG wire sizes with crimp termination for secure fit.

Supports industrial and electronic applications requiring reliable connector contacts. Operates efficiently within the temperature range of -35°C to 85°C. Provides low contact resistance and stable current carrying capability.

Made in Japan ensuring stringent quality standards. Compact design supports space-saving PCB connector layouts.

This product is ideal for assembly in electronic components and power connector systems within industrial electronics, manufacturing, and automation industries. For customers seeking quality and precision in crimp terminals, the Hirose DF20F-2830SCFA is a trusted solution offering operational reliability and ease of integration.
