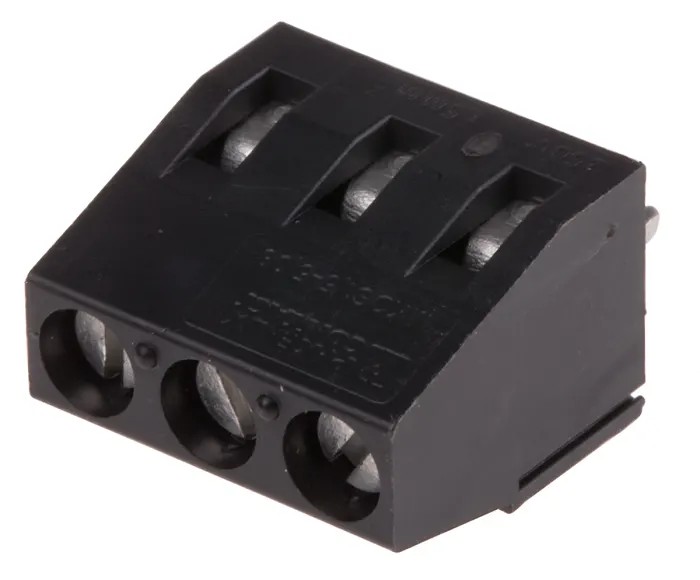

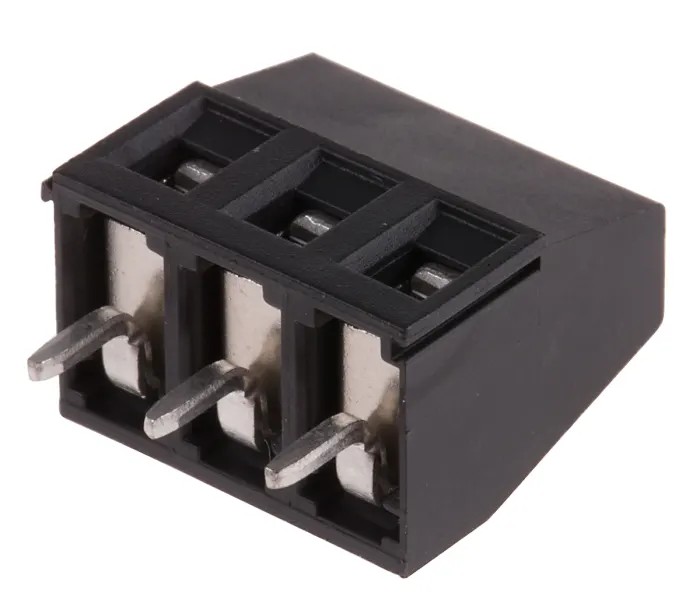

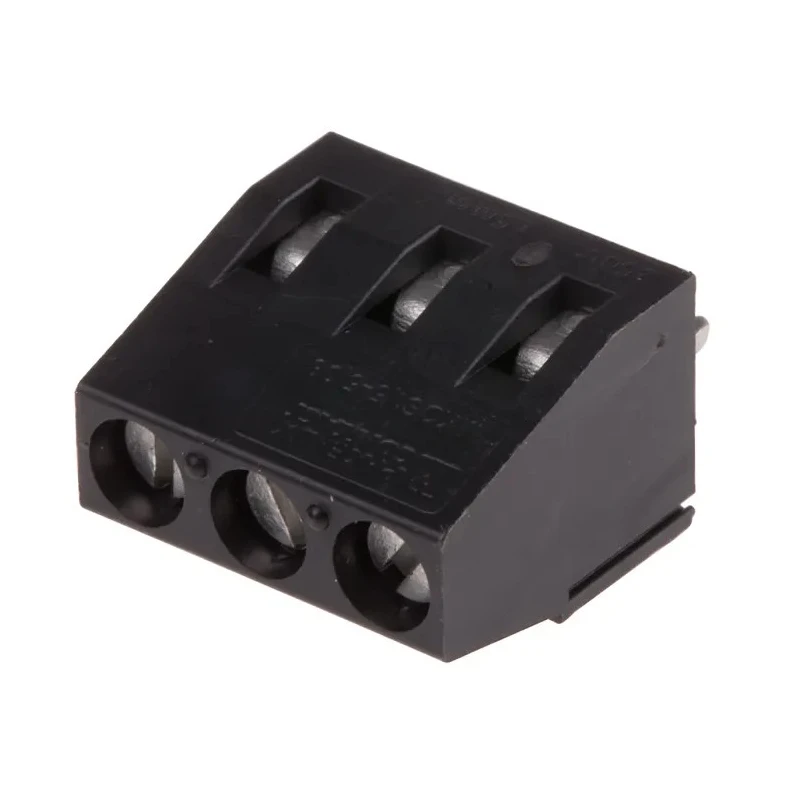

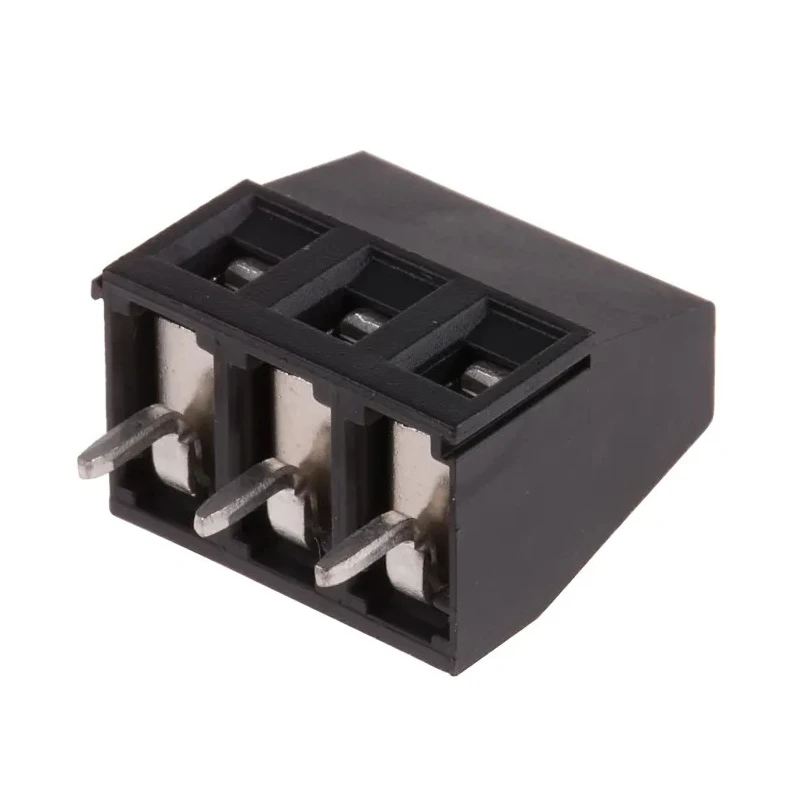

Phoenix Contact PCB Terminal Block MKDS 1.5/3-5.08 HT BK Series, 3-Contact, 5.08 mm Pitch, Through Hole, 320V 1985917
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 320V |
| Brand | Phoenix Contact |
| Colour | Black |
| Orientation | Straight |
| Current | 17.5A |
| Length | 9.8mm |
| Model | 1985917 |
| Width | 15.24mm |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Series | MKDS 1.5/3-5.08 HT BK |
| Termination Type | Solder |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Number of Contacts | 3 |
| Contact Gender | Female |
Key Features
- The terminal block supports a current rating of 17.5 amps for robust electrical performance.
- It features a polyamide housing in black color with female contact gender for secure connections.
- Through-hole mounting ensures high mechanical stability on printed circuit boards.
- The product is rated for 320 volts to accommodate diverse electrical systems.
- High temperature tolerance enables use in reflow soldering processes up to +125°C.
- Its straight orientation and 1-row design optimize PCB space utilization.
- Latching on the side allows various positions to be combined to fit multiple applications.
- Constructed from liquid crystal polymer, it offers excellent heat resistance and durability.
Product Description
Phoenix Contact 1985917 is a MKDS 1.5/3-5.08 HT BK Series PCB Terminal Block designed for high temperature applications and reliable electrical connection with a 3-contact configuration and 5.08 mm pitch.
Constructed with a black polyamide housing and female contacts, this through-hole terminal block offers secure solder termination and high mechanical stability, suitable for demanding electronic assemblies.
The terminal block supports 17.5 amps current and 320 volts, making it ideal for power and control circuits requiring dependable connectivity. Its straight, single-row layout and side latching feature enable flexible configuration in modular assemblies.
Manufactured in Germany, it complies with UL (E60425) and CSA (LR13631) standards and is capable of withstanding reflow soldering temperatures according to EN 61760-01 profiles. Pre-treatment at +125°C for 48 hours is recommended for enhanced heat tolerance during soldering.
These terminal blocks are well-suited for industrial, power electronics, automation, HVAC, manufacturing, and laboratory equipment where robust and heat-resilient PCB connectors are essential.
The terminal block supports a current rating of 17.5 amps for robust electrical performance. It features a polyamide housing in black color with female contact gender for secure connections. Through-hole mounting ensures high mechanical stability on printed circuit boards.
The product is rated for 320 volts to accommodate diverse electrical systems. High temperature tolerance enables use in reflow soldering processes up to +125°C. Its straight orientation and 1-row design optimize PCB space utilization.
Latching on the side allows various positions to be combined to fit multiple applications. Constructed from liquid crystal polymer, it offers excellent heat resistance and durability. Ideal for industrial electronics, power connectors, and demanding laboratory environments.
Explore more high-quality PCB Terminal Blocks and power connectors at EnvMart for your electronic and industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block supports a current rating of 17.5 amps, ensuring robust electrical performance.
The product is rated for 320 volts, accommodating diverse electrical systems.
It features a polyamide housing and is constructed from liquid crystal polymer, offering excellent heat resistance and durability.
The MKDS 1.5/3-5.08 HT BK terminal block uses through-hole mounting, ensuring high mechanical stability on printed circuit boards.
The terminal block has a pitch of 5.08 mm, allowing for efficient space utilization on PCBs.
This model features a 3-contact configuration, suitable for various applications.
It has a straight orientation, which helps optimize PCB layout.
The terminal block measures 9.8 mm in length and 15.24 mm in width.
It utilizes solder termination, providing secure connections for electronic assemblies.
It complies with UL (E60425) and CSA (LR13631) standards, ensuring reliability in various applications.
This terminal block can withstand reflow soldering temperatures up to +125°C, making it suitable for high temperature applications.
The MKDS 1.5/3-5.08 HT BK terminal block is manufactured in Germany.
