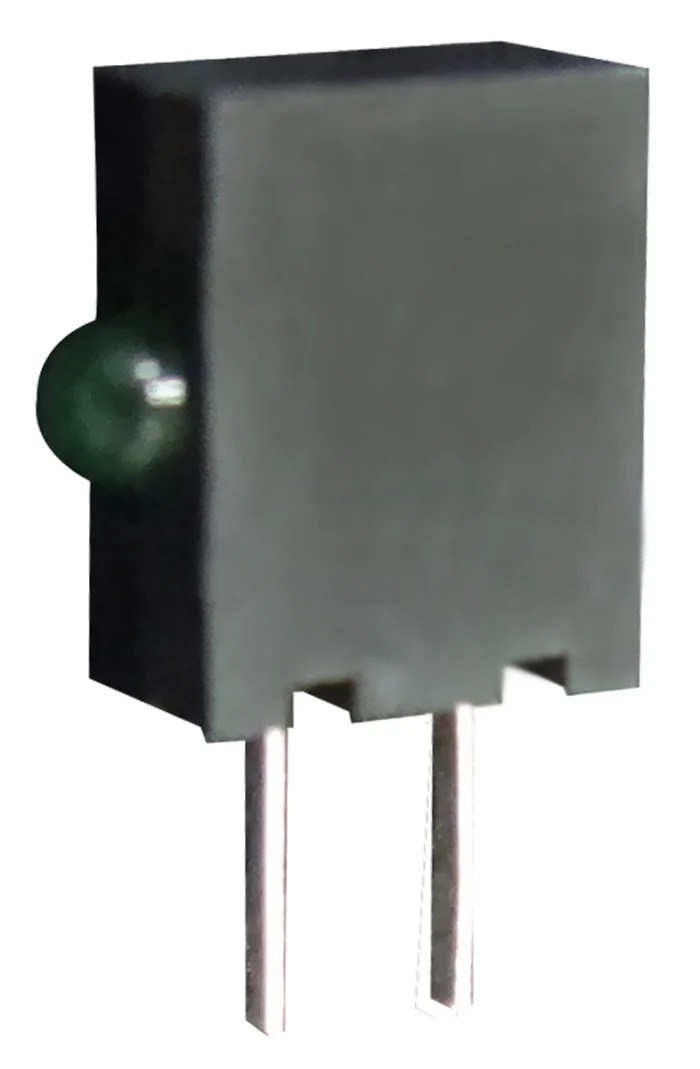

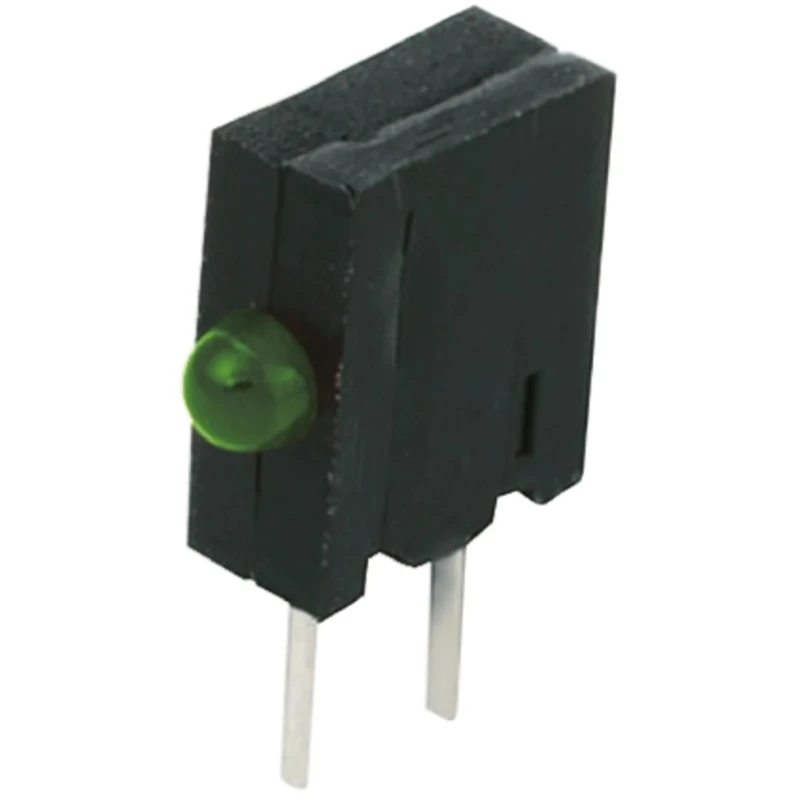

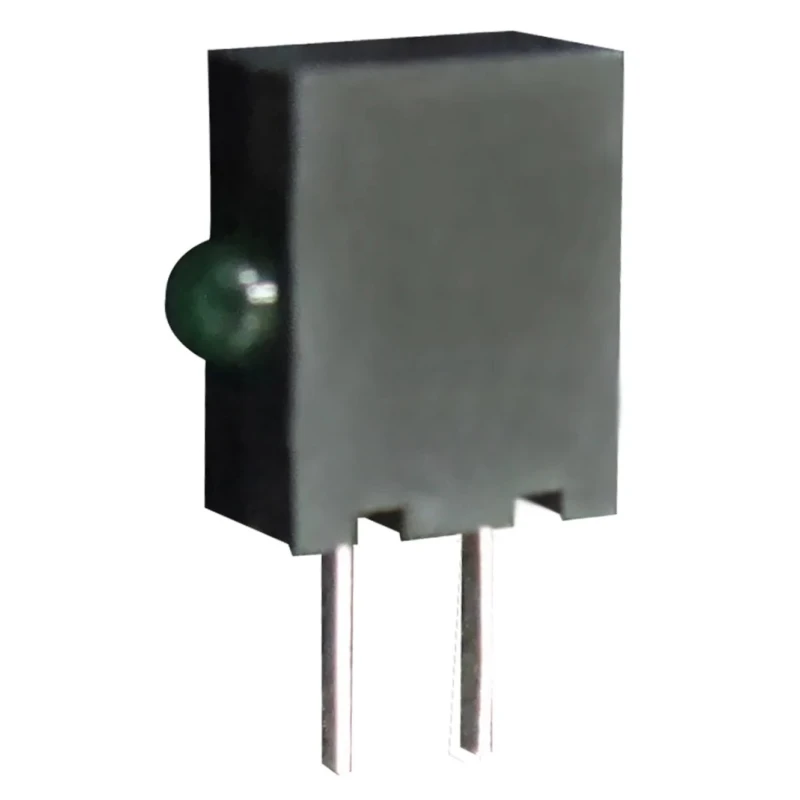

Kingbright Green Right Angle 3 mm (T-1) PCB LED Indicator 2.5 V 30mA KM2520EH/1SGD
Specifications
| Country of Origin | China |
|---|---|
| Brand | Kingbright |
| Length | 6.22mm |
| Model | KM2520EH/1SGD |
| Mount Type | Through Hole |
| Number Of Leds | 1 |
| Maximum forward current | 30mA |
| Viewing angle | 40 ° |
| Sub Type | Single Colour |
| Power Dissipation | 100mW |
| Lens Colour | Green |
| Luminous Intensity | 15mcd |
| Standards/Approvals | RoHS |
| LED Colour | Green |
| Number of Pins | 2 |
| Lens Finish | Diffused |
| Minimum Supply Voltage | 2.5V |
| LED Material | GaP |
| Multicolour/Single Colour | Single Colour |
| LED Orientation | Right Angle |
| LED Size | 3 mm (T-1) |
Key Features
- Features a right-angle LED orientation for efficient board placement.
- Operates with a minimum supply voltage of 2.5 V and maximum forward current of 30mA.
- Includes a diffused green lens to provide a high-contrast, clear visual indicator.
- The LED has a luminous intensity of 15mcd and a viewing angle of 40 degrees.
- Constructed with GaP LED material for reliability and long service life.
- Compact length of 6.22 mm suitable for subminiature applications.
- Meets RoHS compliance ensuring environmental safety.
- Power dissipation rating of 100 mW supports stable operation.
Product Description
Kingbright KM2520EH/1SGD Green Right Angle PCB LED Indicator is a high-quality subminiature LED component designed for use on printed circuit boards (PCBs) where a single green indicator light is needed. The LED is 3 mm (T-1) in size and mounted through-hole with two pins, positioned at a right angle to the board, enabling compact and durable applications.
Operating with a minimum voltage of 2.5 V and a maximum forward current of 30mA, this LED provides efficient illumination with a luminous intensity of 15mcd and a viewing angle of 40 degrees. The diffused green lens produces a high contrast visual signal, suitable for applications in electronic, industrial, and instrumentation circuits.
The LED material is Gallium Phosphide (GaP), ensuring excellent brightness and longevity. Its black plastic housing is flame retardant to UL 94 V-0 standards, enhancing safety in electrical components. The length of the LED indicator is 6.22 mm, perfect for subminiature mounting needs.
This product complies with RoHS directives, reflecting adherence to environmental standards and safe manufacturing practices. The power dissipation is 100mW, enabling stable and reliable performance in various operational environments.
Ideal for use in industrial control panels, measurement equipment, and other electronic devices requiring clear LED indication, this PCB LED Indicator is a dependable choice for engineers and designers.
Right angle LED orientation for space-saving PCB design. Diffused green lens for enhanced visibility. RoHS compliant for environmental and safety standards. Flame retardant black plastic housing UL 94 V-0 rated. Suitable for industrial, instrumentation, and control applications.
As part of the Kingbright range of PCB LED indicators, this model KM2520EH/1SGD meets a high standard of quality and durability, ensuring reliable operation in a wide range of electronic assemblies.
Browse the Electronics & Electricals categories at EnvMart to explore similar PCB LED Indicators from trusted brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The luminous intensity of this LED is 15 millicandelas (mcd).
It operates with a minimum supply voltage of 2.5 V.
The maximum forward current for this model is 30 mA.
The viewing angle of this LED is 40 degrees.
This LED uses a through-hole mounting type with two pins.
The power dissipation rating is 100 mW, supporting stable operation.
The length of this LED is 6.22 mm, suitable for subminiature applications.
The LED is constructed from Gallium Phosphide (GaP).
The lens color of this LED is green and it has a diffused finish for enhanced visibility.
Yes, this LED complies with RoHS standards, ensuring environmental safety.
This model is suitable for use in industrial control panels, measurement equipment, and other electronic devices requiring clear LED indication.
The LED has a right-angle orientation, which allows for efficient board placement.
