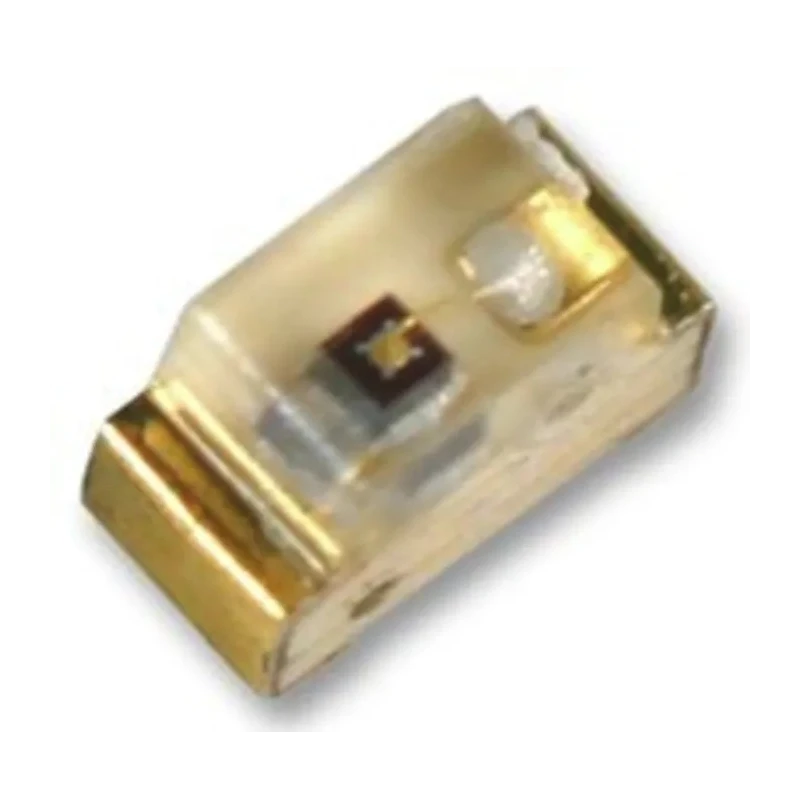

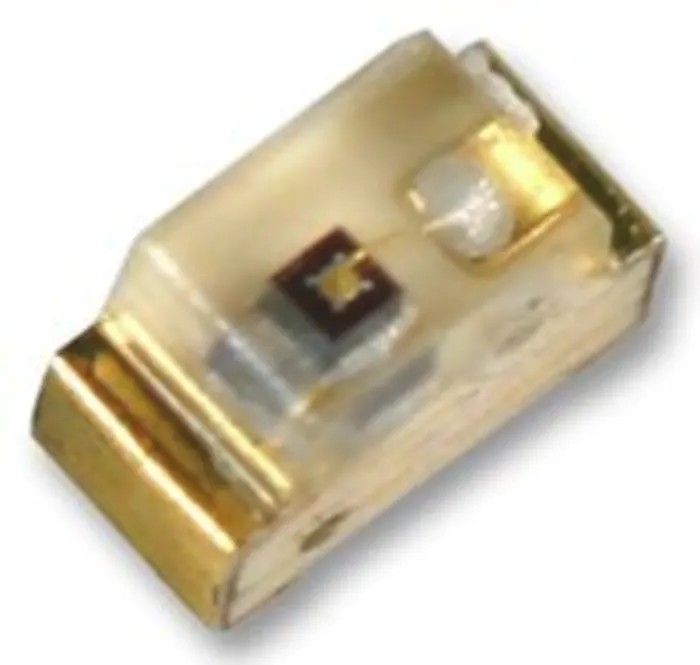

Kingbright 2.1 V Green LED 1608 Surface Mount Tape & Reel KP-1608MGC
Specifications
| Country of Origin | China |
|---|---|
| Brand | Kingbright |
| Model | KP-1608MGC |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | KP-1608 |
| Maximum forward current | 150mA |
| Viewing angle | 120 ° |
| Package Type | 1608 |
| Standards/Approvals | RoHS |
| LED Colour | Green |
| Dominant Wavelength | 570nm |
| Forward Voltage | 2.1V |
| Number of Pins | 2 |
| LED Luminosity | 70 mcd |
| Maximum Power Dissipation | 75mW |
| Lens Dimensions | 1.6 x 0.8 x 1.1 mm |
| Lens Shape | Rectangular |
Key Features
- Low power consumption with maximum power dissipation of 75 mW.
- Maximum forward current of 150 mA ensures reliability and performance.
- Wide 120-degree viewing angle for efficient light distribution.
- Rectangular lens shape with dimensions 1.6 x 0.8 x 1.1 mm.
- Brightness level of 70 mcd providing clear visual indications.
- Surface mount package type 1608 ideal for modern manufacturing processes.
- Packaged in tape & reel format for automated assembly compatibility.
- Complies with RoHS standards ensuring environmentally friendly use.
Product Description
Kingbright KP-1608MGC is a surface mount green LED designed for electronic displays, optical indicators, and backlighting applications. It features a 1608 (0603) package with a low height of 1.1 mm suitable for compact PCB designs. Operating at a forward voltage of 2.1 V and a maximum forward current of 150 mA, this LED offers energy-efficient illumination with a maximum power dissipation of 75 mW.
The LED provides a wide viewing angle of 120 degrees and a brightness of 70 millicandela, ensuring visibility from varied angles. The rectangular clear lens with dimensions 1.6 mm x 0.8 mm x 1.1 mm enhances light output and directional control. This product is RoHS compliant, supporting environmentally conscious manufacturing.
Packaged on tape and reel, the KP-1608MGC supports automated pick-and-place assembly, ideal for high-volume production in industrial, consumer electronics, and instrumentation sectors.
Typical uses include indicator lights, backlighting for switches and displays, and various signal applications where small size and reliable green LED performance are required. Low power consumption with maximum power dissipation of 75 mW.
Maximum forward current of 150 mA. Wide 120° viewing angle for better light spread. Compact 1608 SMT package size of 1.6 x 0.8 x 1.1 mm. High brightness of 70 mcd for effective indicators. Clear rectangular lens providing focused light output.
Surface mount design for modern PCB assembly. RoHS compliant for environmental safety. Dominant wavelength is 570 nm for green light emission. Manufactured in China with consistent quality standards. Explore our extensive catalog for additional Kingbright LEDs and other electronic components suitable for industrial, manufacturing, and commercial electronics applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for this model is 150 mA, ensuring reliable performance in various applications.
The forward voltage of the KP-1608MGC is 2.1 V, which is suitable for low power consumption applications.
The KP-1608MGC has a brightness level of 70 millicandela, providing effective visual indications.
This LED features a wide viewing angle of 120 degrees, allowing for efficient light distribution from various angles.
The lens dimensions of the KP-1608MGC are 1.6 mm x 0.8 mm x 1.1 mm, designed for compact PCB designs.
This model is packaged in tape and reel format, facilitating automated assembly processes.
Yes, the KP-1608MGC complies with RoHS standards, making it an environmentally friendly option for electronic applications.
This LED is suitable for electronic displays, optical indicators, backlighting, and various signal applications.
The maximum power dissipation for the KP-1608MGC is 75 mW, which contributes to its energy-efficient performance.
The dominant wavelength of the KP-1608MGC is 570 nm, which corresponds to its green light emission.
This LED has 2 pins, suitable for surface mount applications on PCBs.
The series name for the KP-1608MGC is KP-1608, indicating its specific design and packaging type.
