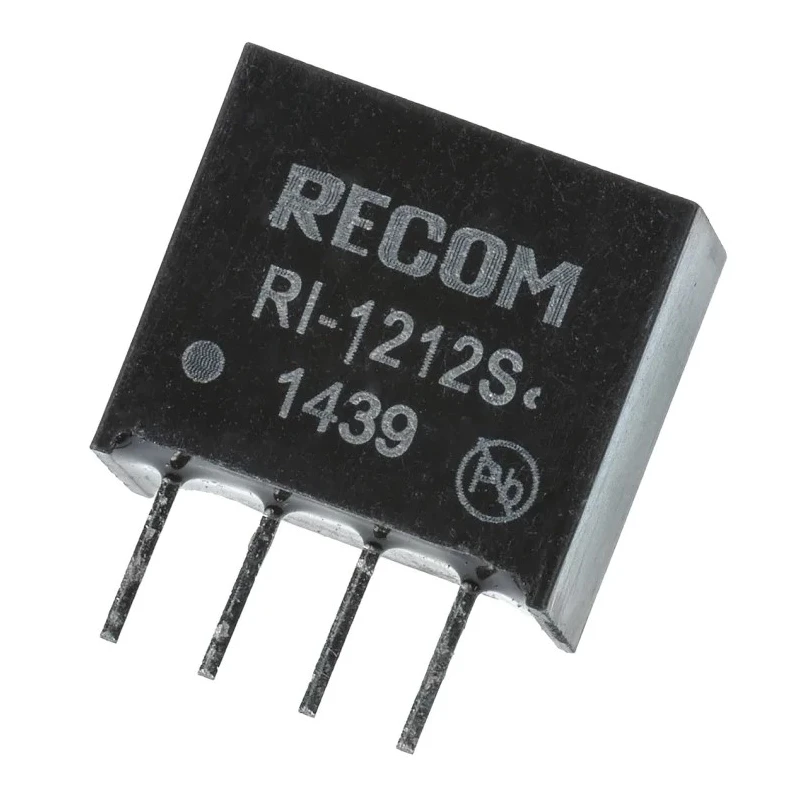

Recom DC/DC Converter 12V DC Output 167mA, 12V DC Input, 10.8V Min Input, 1W Through Hole SIP4 Package RI-1212S

Recom RI-1212S is a compact and efficient DC/DC converter offering a stabilized 12V DC output at 167mA current from a nominal 12V DC input voltage with a minimum input of 10.8V. Packaged in a through-hole SIP4 format, it is ideal for industrial, electronic components, and power supply applications that require low-power voltage conversion with high reliability.

This converter features an isolation voltage rating of 1kV DC, providing excellent electrical isolation between input and output circuits, which is crucial in preventing electrical interference and ensuring safety in industrial and laboratory environments. Its operational temperature range from -40°C to 85°C allows it to function in harsh temperature conditions without derating, extending its applicability to automotive, refrigeration, HVAC, and manufacturing sectors.

Designed with a capacitor input filter, the converter ensures clean and stable output voltage with low ripple and noise at 100mV peak-to-peak. The unit delivers up to 1 Watt of power at 80% efficiency, minimizing energy waste and thermal output without needing a heatsink. The device is UL94V-0 rated for flame retardancy and complies with RoHS standards, supporting environmentally responsible usage.

Industrial standard pin-out and package dimensions of 11.5mm length, 10.2mm width, and 10.2mm depth make integration into PCBs straightforward. Reliability is highlighted by a MTBF rating of 151,000 hours, ensuring long-term stable operation.

The Recom RI Series converters are widely used in industrial tools and equipment, electronic circuits power supply, embedded systems, and telecommunications gear where compact isolated power conversion is essential.

Compact SIP4 package with through-hole mounting capability. 1 Watt maximum output power at 12V, 167mA output current. Wide operating temperature from -40°C to 85°C without derating. 1kV DC isolation voltage providing enhanced safety.

High efficiency typically 80% reduces energy loss. Low ripple and noise with capacitor input filter design. Compliance with UR and RoHS standards. MTBF rating of 151,000 hours ensuring reliability. Package dimensions: 11.5 x 10.2 x 10.2 mm, weight 2.2 g.

Products from Recom RI series represent a key component for power supplies and transformers in industrial, electronic, and embedded system applications. Explore further Recom DC/DC Converters and voltage conversion products to find solutions tailored to your specific technical requirements at EnvMart.
