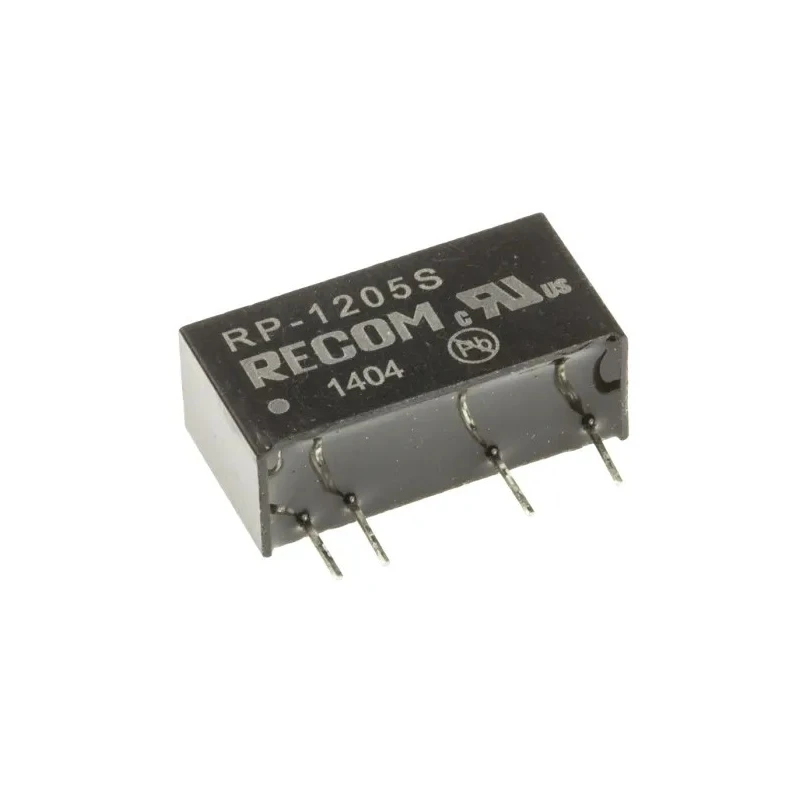

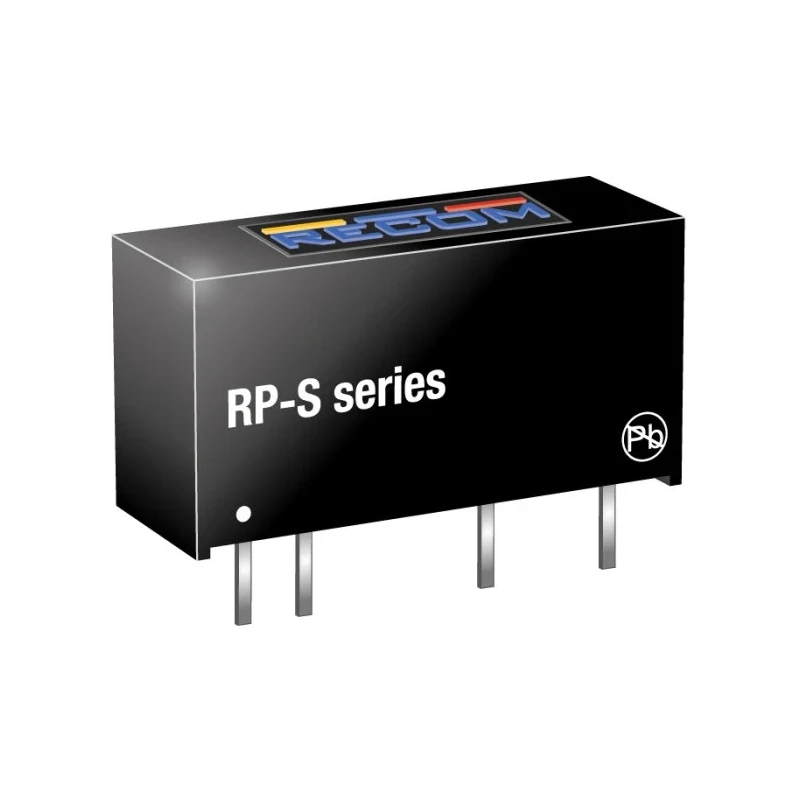

Recom DC/DC Converter, 5V DC Output, 200 mA, 13.2V DC Maximum Input, 10.8V DC Minimum Input, 1W Power, Through Hole RP-1205S

Recom RP-1205S is a high-quality DC/DC converter delivering 5V DC output at 200 mA with a maximum power rating of 1W. It supports input voltage ranging from 10.8V DC minimum up to 13.2V DC maximum, suited for low power electronic applications.

This DC/DC converter features a single-in-line package (SIP) with through-hole mount type, making it suitable for easy PCB assembly and compact industrial designs. The device provides robust electrical isolation with an isolation voltage rating of 2.6 kV AC, ideal for telecom, medical, and safety-critical applications.

The converter is engineered for reliability, with an impressive mean time between failures (MTBF) of 6.9 million hours. It operates effectively over a wide temperature range from -40°C to 85°C, meeting industrial standard requirements and ensuring stable performance in various environments.

Efficiency of approximately 72% helps to minimize power losses, maintaining energy conservation during operation. The unregulated isolated design allows integration into systems that require stable isolated DC voltage supplies.

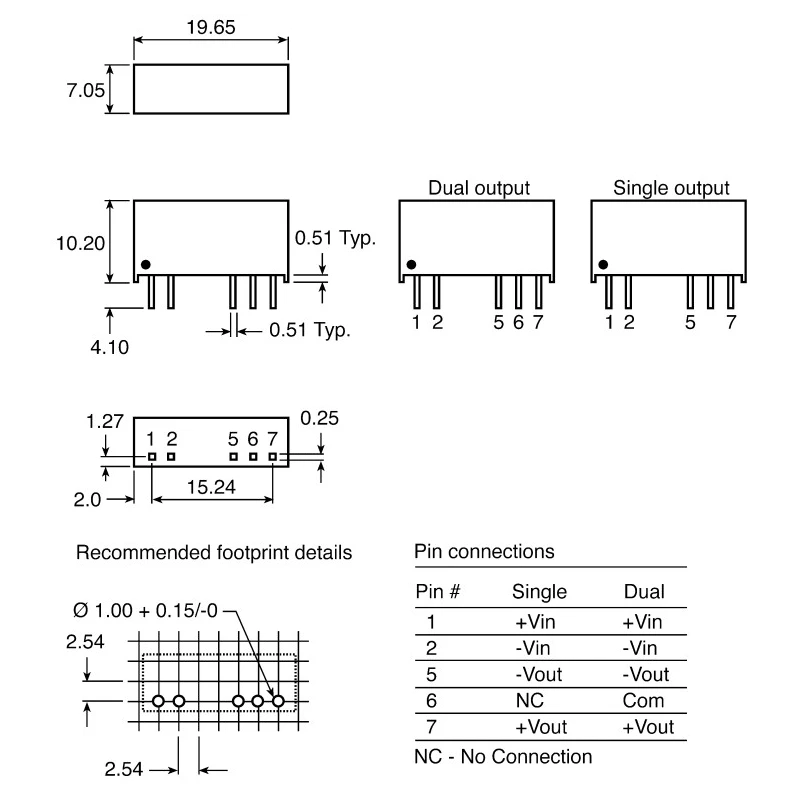

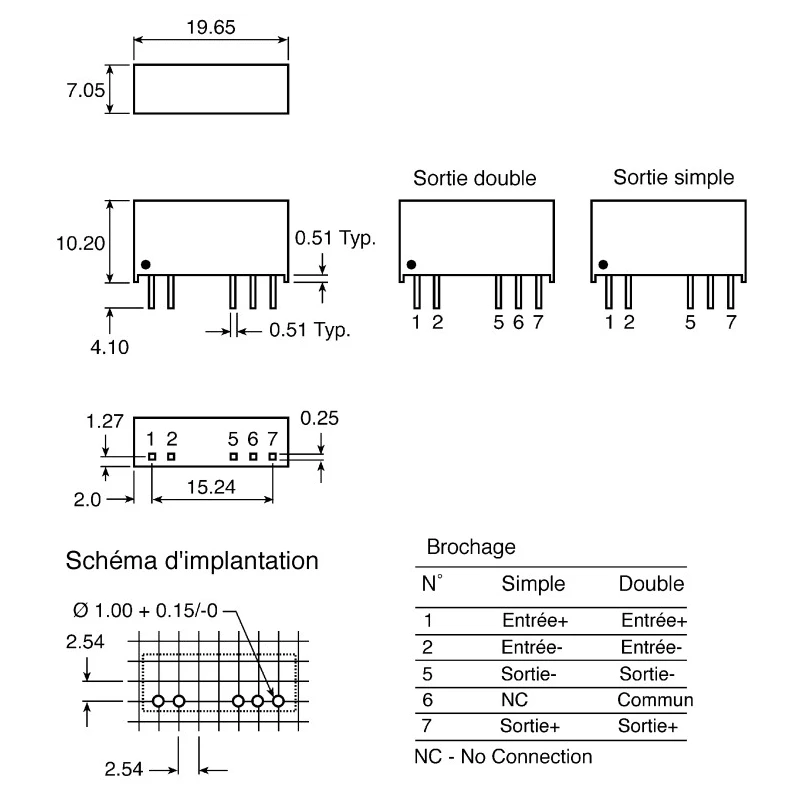

The component conforms to EN60950-1, UL60950-1, and EN60601-1 standards, certifying suitability for medical device and industrial electronics use. With 7 pins and a compact form factor (19.65mm length x 7.05mm width x 10.2mm depth), it offers an optimal balance between size and performance.

Compact SIP package with through-hole mounting. High voltage isolation at 2.6 kV AC. Wide operating temperature range from -40°C to 85°C. High reliability design with MTBF of 6.9 million hours. Typical efficiency of 72% optimizes power consumption.

Input voltage range: 10.8V to 13.2V DC. Output current of 200mA at 5V DC output voltage.

This Recom DC/DC converter is commonly applied in industrial automation, telecommunications, medical instrumentation, and power supply designs where compact, efficient, and isolated power conversion is required.

Explore more power supply components and DC/DC Converters in the Recom product range through EnvMart's extensive electronics catalog.
