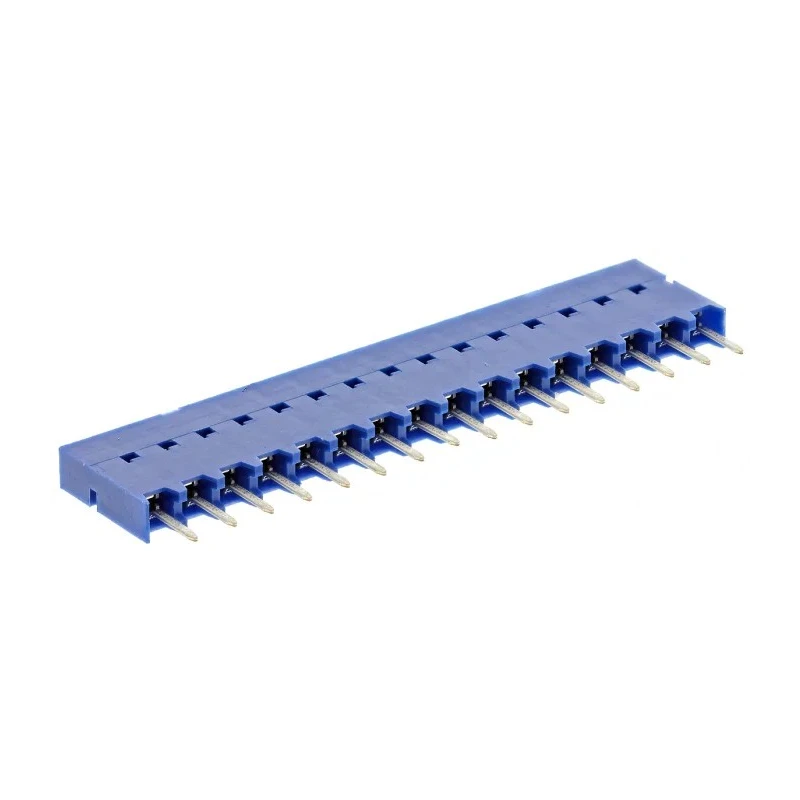

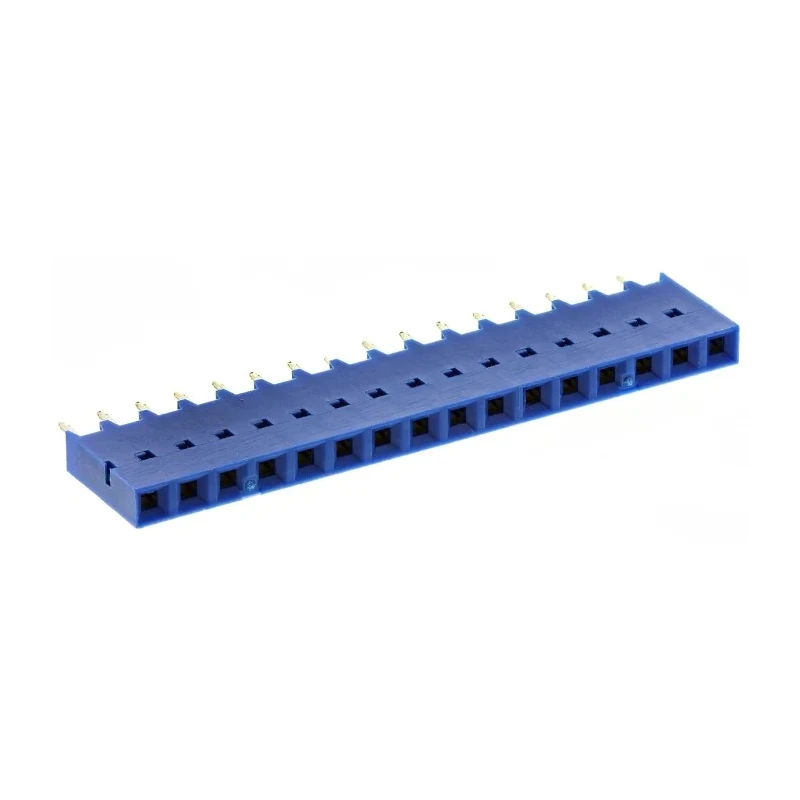

Amphenol Communications Solutions Dubox Series Straight Through Hole PCB Socket, 16-Contact, 1 Row, 2.54 mm 75915-416LF
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 1kV |
| Brand | Amphenol Communications Solutions |
| Orientation | Straight |
| Operating Temperature | -65 °C → +125 °C |
| Current | 12A |
| Model | 75915-416LF |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Thermoplastic |
| Contact Material | Bronze |
| Series | Dubox |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Insulation resistance | 105 MΩ min |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Resistance | 15 mΩ max. (initial resistance) |
| Standards/Approvals | RoHS |
| Contact Plating | Matt Tin |
| Number of Contacts | 16 |
| Connector System | Board-to-Board |
Key Features
- The socket features a glass filled thermoplastic housing for durability.
- It operates with a current rating of 12A and voltage rating of 1kV.
- Contacts are made from bronze with matt tin plating for corrosion resistance.
- Designed for through-hole mounting with a straight orientation.
- Operating temperature ranges from -65°C to 125°C, suitable for harsh environments.
- Supports low contact resistance of 15 mΩ max and insulation resistance of 105 MΩ min.
- Complies with RoHS standards for environmental safety.
Product Description
Amphenol Communications Solutions 75915-416LF Dubox Series Straight Through Hole PCB Socket is a high-performance 16-contact, single-row PCB socket designed for board-to-board connector applications. It provides reliable electrical connections with a 2.54 mm pitch and supports current up to 12A and voltage up to 1kV, ensuring safe and stable operation in industrial and electronic assemblies.
The connector features a robust glass filled thermoplastic housing rated to UL94 V-0 standards, providing excellent mechanical strength and flame resistance. Its contacts are manufactured from bronze and plated with matt tin, offering corrosion resistance and stable contact performance. The through-hole mounting and straight orientation enable secure soldered connections to printed circuit boards.
Operating temperature ranges from -65°C to 125°C, making it suitable for demanding environments in industrial, telecommunications, and electronic manufacturing sectors. The Dubox series includes double-bladed pre-tensioned contacts that deliver low insertion force with reliable contact pressure. The contact resistance is limited to a maximum of 15 mΩ (initial resistance) and the insulation resistance to a minimum of 105 MΩ, ensuring efficient signal integrity and reduced losses.
This product is RoHS compliant and manufactured in France, meeting stringent environmental and quality standards. The socket is designed for board-to-board interconnection systems with a 2.54 mm pitch. Contacts have 0.76 μm gold plating on the contact area and matt tin plating on PCB tails.
It supports a maximum of 3A dc per individual contact and 2A dc on all contacts combined. The glass fibre reinforced polyester housing enhances durability and fire safety.
Ideal for industrial, telecommunications, electronic equipment manufacturing, and laboratory instrumentation applications. Amphenol Communications Solutions products provide reliable performance in challenging electrical and mechanical environments. Browse more PCB Sockets and connectors at EnvMart for your design and assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket has a current rating of 12A and a voltage rating of 1kV, ensuring safe and stable operation in various applications.
The operating temperature range for this model is from -65°C to +125°C, making it suitable for demanding environments.
The housing is made from glass filled thermoplastic, while the contacts are made from bronze with matt tin plating for corrosion resistance.
This model is designed for through-hole mounting, allowing for secure soldered connections to printed circuit boards.
The contacts in this socket have a pitch of 2.54 mm, which is standard for many PCB applications.
The maximum contact resistance for this model is 15 mΩ, ensuring efficient signal integrity and reduced losses.
Yes, this socket complies with RoHS standards for environmental safety, making it suitable for eco-friendly applications.
The Dubox Series socket features 16 contacts, allowing for multiple connections in a compact form factor.
This model supports a board-to-board connector system, which is commonly used in electronic assemblies.
The insulation resistance for this socket is a minimum of 105 MΩ, ensuring effective electrical isolation.
This model is manufactured in France, adhering to stringent quality and environmental standards.
This socket uses solder termination, which is standard for securing connections on PCBs.
