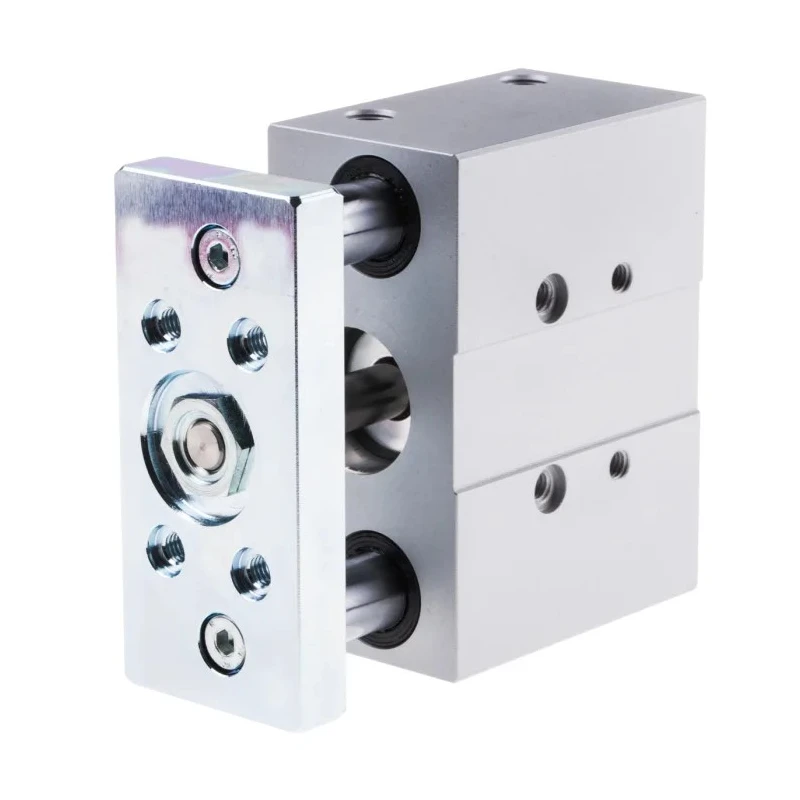

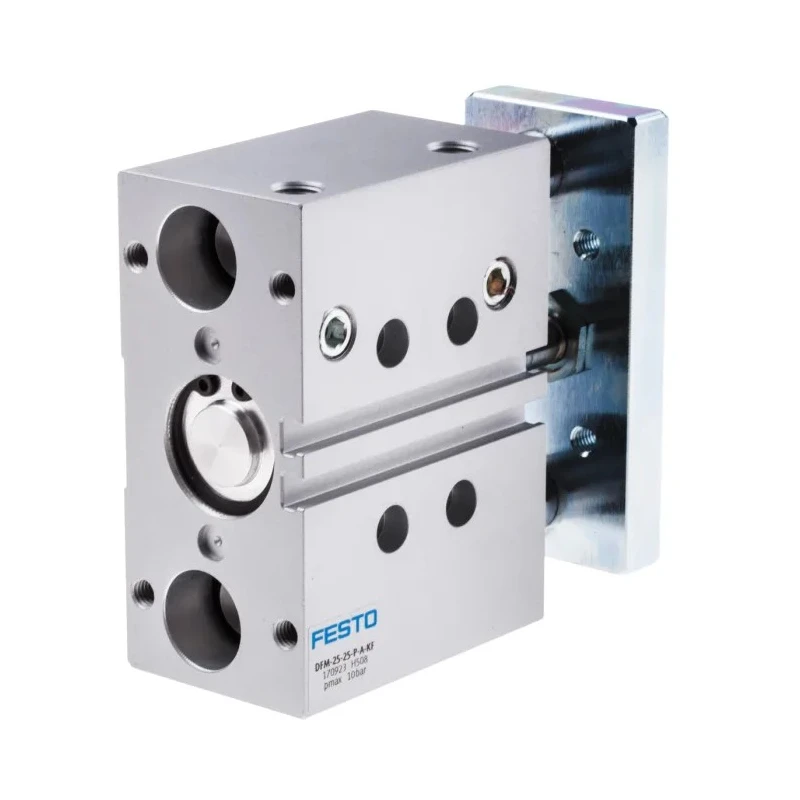

Festo Pneumatic Guided Cylinder 25 mm Bore Double Acting Through Hole Mount 10 bar Pressure Elastomer DFM-25-25-P-A-KF
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Maximum Operating Pressure | 10 bar |
| Height | 44mm |
| Length | 98mm |
| Model | DFM-25-25-P-A-KF |
| Gross Weight | 1.2kg |
| Width | 95mm |
| Mount Type | Through Hole |
| Series | DFM |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Stroke Length | 25mm |
| Bore Diameter | 25mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 1179-1, ISO 228-1, RoHS |
| Cushioning Type | Elastomer |
| Guide Type | Plain Bearing, Ball Bearing |
Key Features
- The cylinder features a 25 mm bore diameter suitable for high load pneumatic operations.
- Double acting mechanism provides controlled movement in both directions.
- Through hole mount type allows flexible installation options.
- Maximum operating pressure of 10 bar ensures robust performance.
- Elastomer cushioning reduces noise and extends service life.
- The device incorporates plain and ball bearing guides for enhanced durability.
- Compact dimensions (98 mm length, 95 mm width, 44 mm height) optimize space usage.
- Operates within temperature range from -5°C to 60°C for versatile environmental conditions.
Product Description
Festo DFM-25-25-P-A-KF Pneumatic Guided Cylinder is a precision-engineered double acting guided actuator with a 25 mm bore and stroke length of 25 mm. This cylinder integrates a drive and guide unit within a single robust aluminum housing, designed for industrial pneumatic applications requiring high load capacity and resistance to torque and lateral forces.
The unit features recirculating ball bearings which facilitate smooth motion and accommodate torque loads effectively. Its compact rigid construction provides maintenance-free operation and reliable performance over extended use.
Cushioning plates built from elastomer materials reduce operational noise and enhance the service life of the cylinder. Flexible air supply ports on the top and side enable versatile mounting orientations, while integrated slots on the body support proximity sensor installation to monitor positioning.
Typical applications include clamping components for further processing, dynamic lifting and transporting of loads, and safe stopping of items weighing up to 150 kg. The cylinder's compact dimensions (98 mm length, 95 mm width, 44 mm height) and relatively lightweight (1.2 kg) cater to various industrial environments including manufacturing, material handling, and automation systems.
The cylinder combines a drive and guide unit in a single housing for compactness and efficiency. Use of recirculating ball bearings ensures smooth handling of torque loads. Flexible mounting options via supply ports on both the top and side.
Robust aluminum construction provides high resistance to external forces and torque. Maintenance-free design reduces downtime and operational costs. Elastomer cushioning plates minimize noise and enhance durability. Compact size supports installation in constrained spaces without compromising performance.
Ideal for industrial automation tasks such as clamping, lifting, and stopping. Compliant with ISO standards and RoHS directives for quality and environmental safety.
Category: Pneumatic Guided Cylinders under Hydraulic & Pneumatic Tools at EnvMart. Explore a wide range of hydraulic and pneumatic solutions for industrial automation, manufacturing, and material handling.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 10 bar.
This unit has dimensions of 98 mm in length, 95 mm in width, and 44 mm in height.
It features a bore diameter of 25 mm and a stroke length of 25 mm.
The cylinder supports a through hole mount type, allowing flexible installation options.
The gross weight of this model is 1.2 kg.
It operates within a temperature range of -5°C to 60°C.
This cylinder utilizes elastomer cushioning, which reduces noise and extends service life.
It incorporates both plain bearing and ball bearing guides for enhanced durability.
This model complies with ISO 1179-1, ISO 228-1, and RoHS directives.
Typical applications include clamping components, dynamic lifting, transporting loads, and safe stopping of items weighing up to 150 kg.
This unit operates as a double acting cylinder, providing controlled movement in both directions.
The cylinder features a maintenance-free design, which reduces downtime and operational costs.
