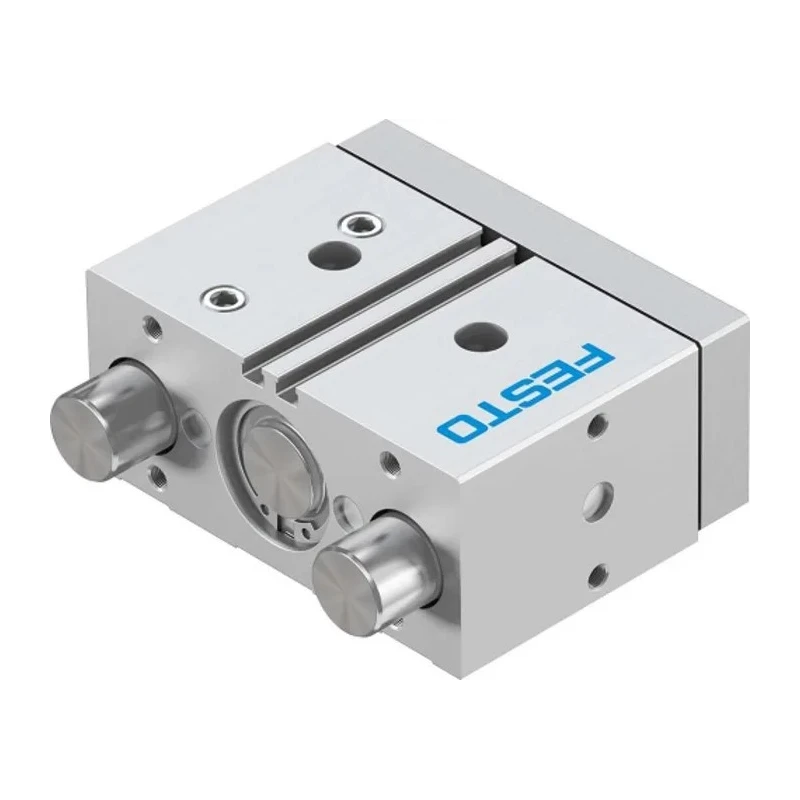

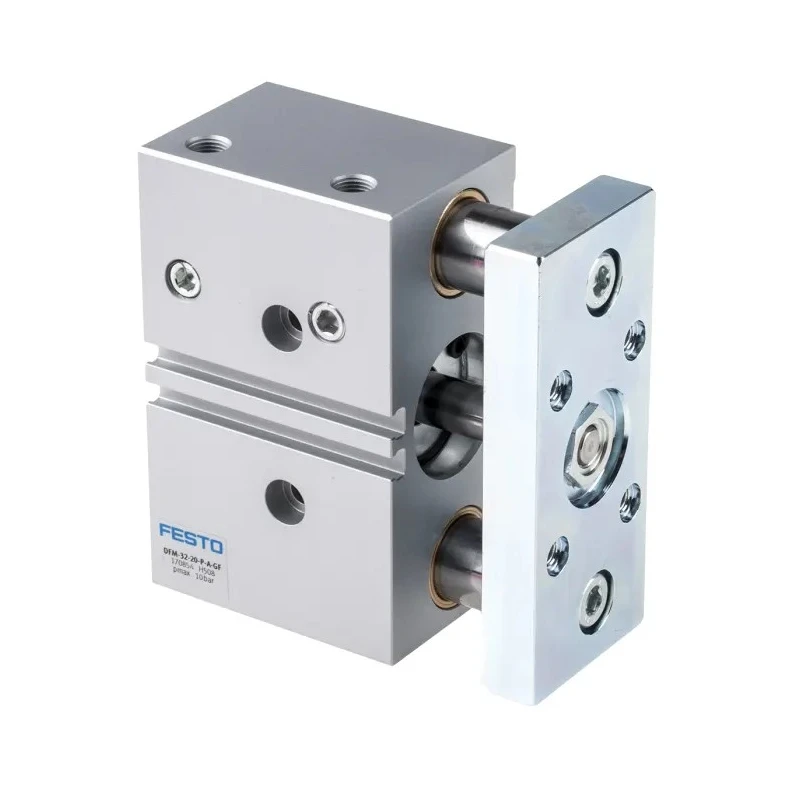

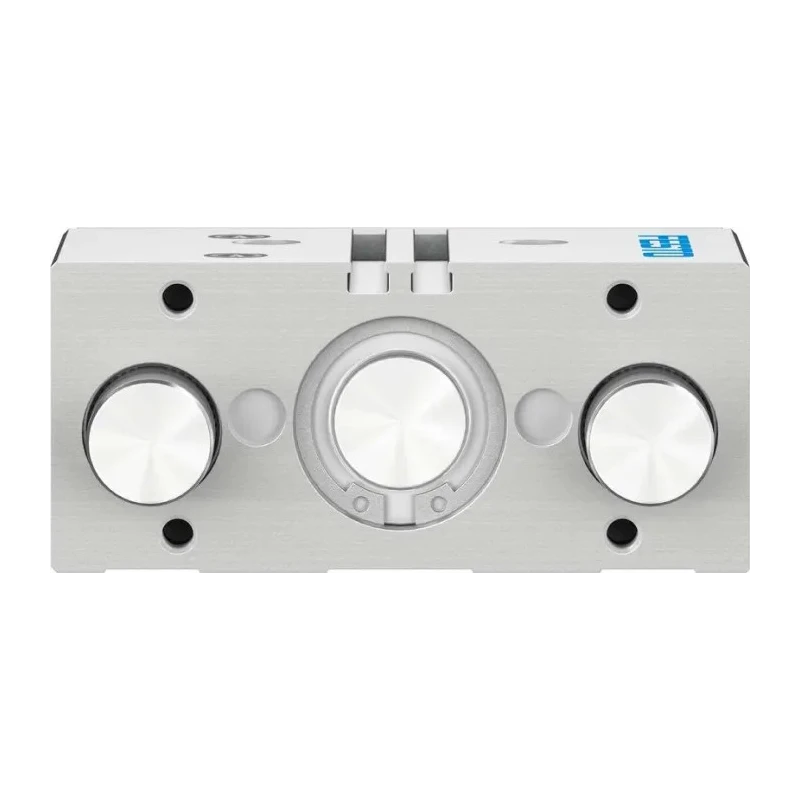

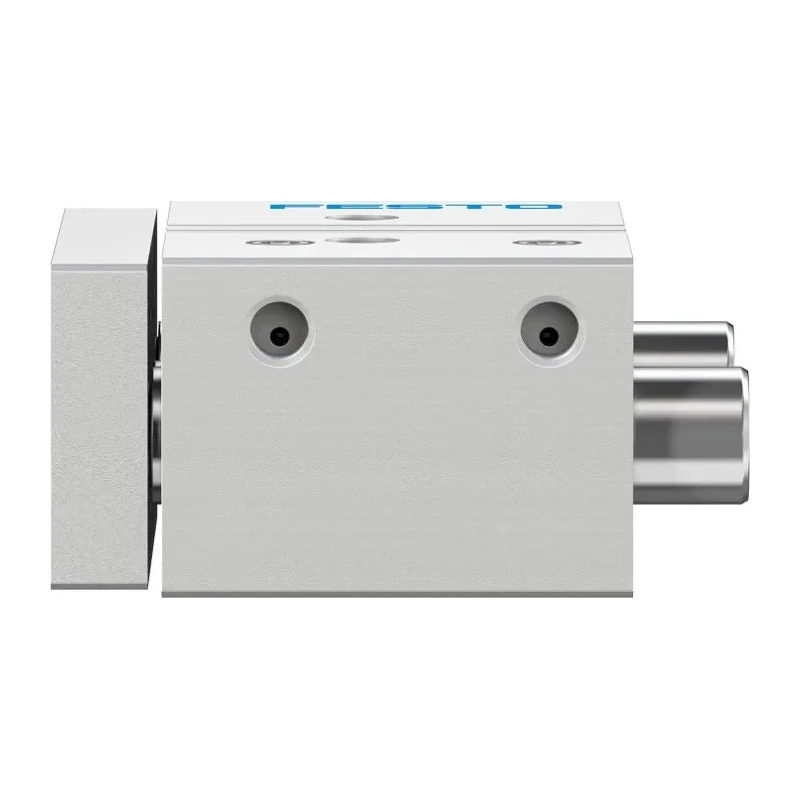

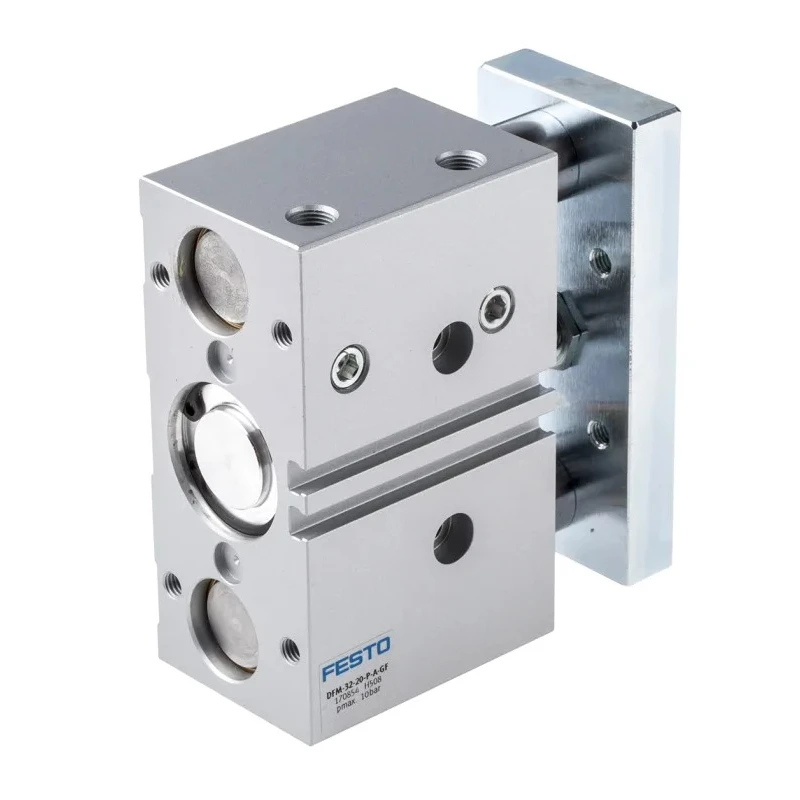

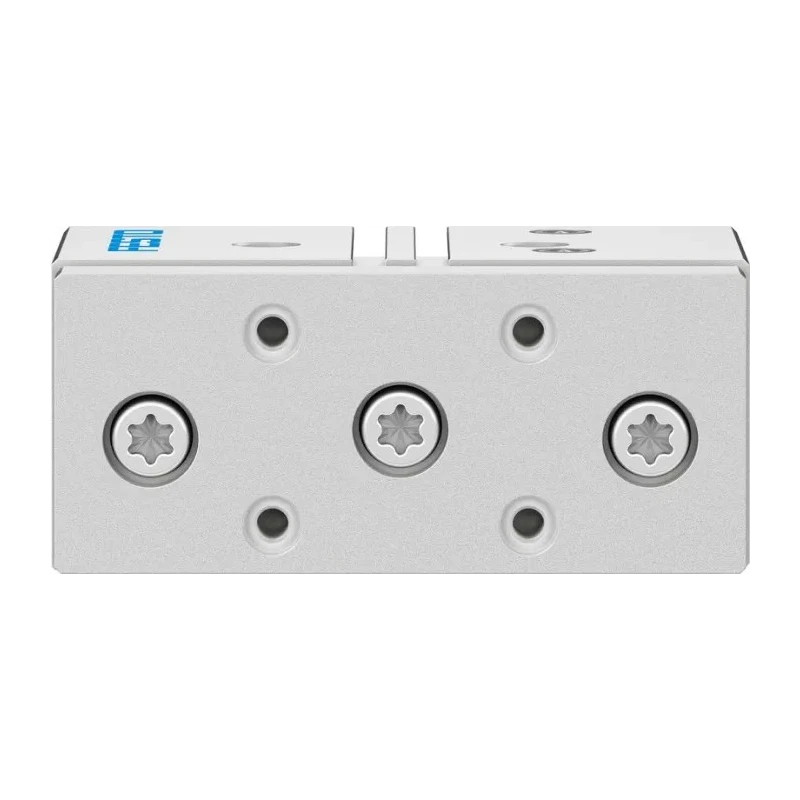

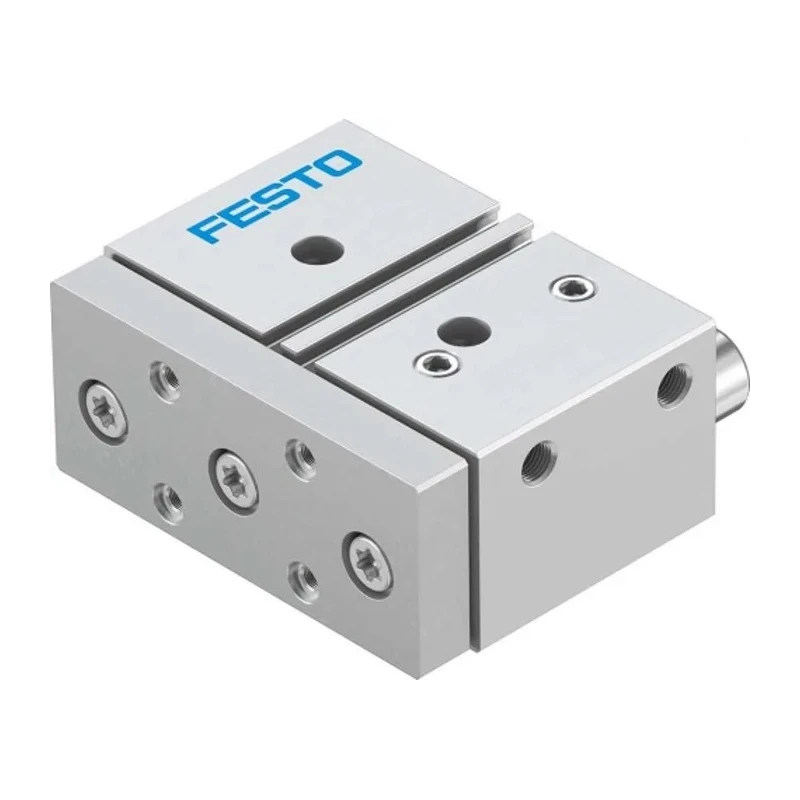

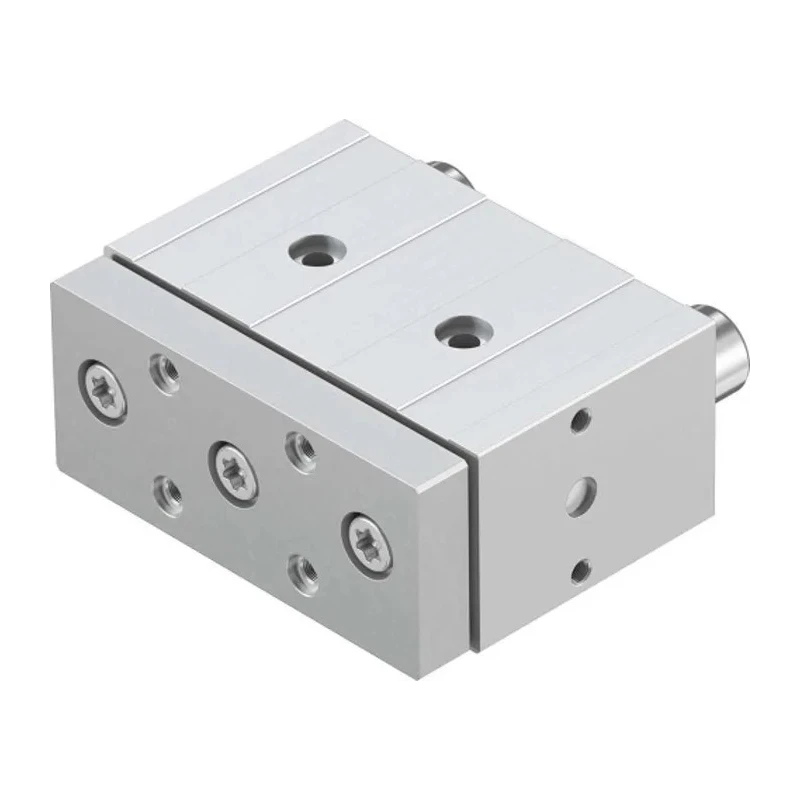

Festo Pneumatic Guided Cylinder 32mm Bore 20mm Stroke Double Acting Through Hole Mount DFM-32-20-P-A-GF

Festo DFM-32-20-P-A-GF pneumatic guided cylinder combines high precision and rugged construction for demanding industrial automation tasks. This guided cylinder has a 32mm bore and 20mm stroke, featuring a double-acting pneumatic operation that drives the piston in both directions. It is engineered for applications requiring precise positioning, lifting, or stopping in manufacturing, packaging, and conveyor systems.

The cylinder is built with a robust nitrile rubber (NBR) seal to guard against dirt ingress and extend the operational lifespan. High alloy stainless steel and tempered steel components ensure corrosion resistance for long-lasting performance. The yoke operating mode and through hole mount type facilitate straightforward installation and integration.

Operating at pressures up to 10 bar and temperatures from -20°C to 80°C, this unit is suitable for a wide range of environments. Its maximum piston speed of 0.8 m/s ensures fast and responsive motion handling. The single rod type is supported by ball bearing and plain bearing guides, enhancing stability and reducing lateral forces for accurate positioning.

Applications of this Pneumatic Guided Cylinder include conveyor system automation, packaging machinery, and pharmaceutical manufacturing, where durable and reliable linear actuation is crucial. The body is made from tempered steel, wrought aluminium alloy, and polyurethane components, providing a balance of strength and lightweight design.

Durable NBR seals resist contaminants and reduce maintenance downtime. Corrosion resistant high alloy steel piston for enhanced durability. Double acting operation for precise bidirectional control. Through hole mount type eases mechanical integration.

Ball bearing and plain bearing guides for enhanced precision. Wide operating temperature range from -20°C to 80°C. Maximum operating pressure of 10 bar for heavy-duty applications. Compact dimensions (101mm length, 110mm width, 49mm height) save installation space.

The product is manufactured in Germany and complies with international standards ISO 1179-1, ISO 228-1, ISO 8573-1:2010 (7:4:4), and RoHS environmental directives. It is also marked as a Better World product thanks to its repairable design and sustainability considerations.
