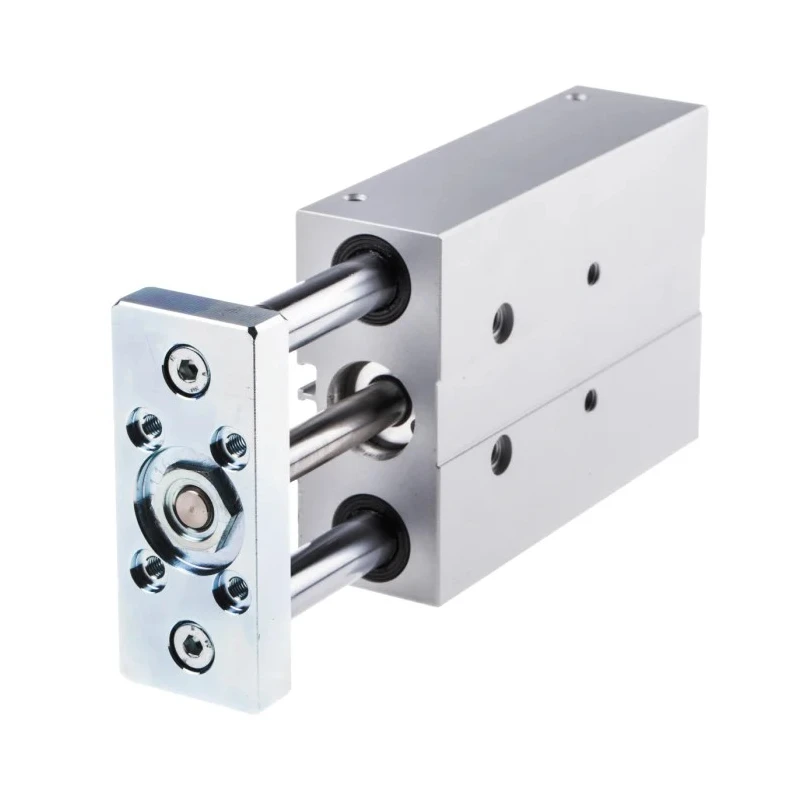

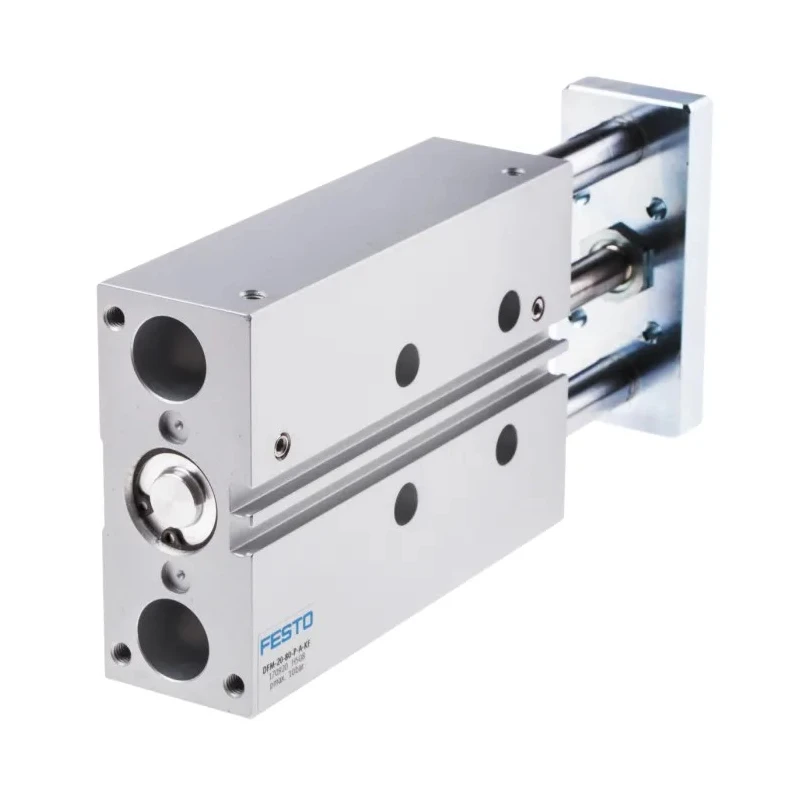

Festo Pneumatic Guided Cylinder 20mm Bore 80mm Stroke Double Acting Through Hole Mount DFM-20-80-P-A-KF

Festo DFM-20-80-P-A-KF pneumatic guided cylinder is a precision engineered double acting actuator featuring a 20mm bore diameter and 80mm stroke length. It integrates both drive and guide units in a single housing, ensuring highly reliable operation in demanding pneumatic applications.

The cylinder’s body combines polyurethane, tempered steel, wrought aluminium alloy, nitrile rubber, and high alloy stainless steel to provide robust durability and resistance to wear. The innovative design incorporates recirculating ball bearings and plain bearings for guiding the piston and handling torque loads and lateral external forces effectively.

With a maximum operating pressure of 10 bar and piston speed capped at 0.8 mm/s, it delivers consistent performance. The elastomer cushioning system minimizes noise and extends component life under continuous operation. Dual air supply ports positioned on the top and side offer flexible installation options to accommodate varying system layouts.

Operating temperature ranges from -5°C to 60°C, making it suitable for various industrial environments. The cylinder's compact dimensions (161mm length, 83mm width, 36mm height) and a weight of 1.3 kg ensure compact and lightweight integration without sacrificing strength.

This guided cylinder is suitable for industrial applications such as clamping components securely, lifting and transporting loads dynamically, and reliably stopping items up to 150 kg. The sturdy constructs and precision engineering meet ISO standards ISO 1179-1 and ISO 228-1, as well as RoHS compliance.

Compact, maintenance free construction with combined drive and guide unit. Recirculating ball bearings and plain bearings provide smooth, torque resistant motion. Flexible cushioning plates reduce noise and enhance service life.

Multiple air supply ports for versatile mounting arrangements. Supports loads up to 150 kg with high operational reliability. Operates efficiently within temperature range of -5°C to +60°C. Designed to stringent ISO and RoHS standards for industrial pneumatics.

Festo Pneumatic Guided Cylinders are the preferred choice in industrial, manufacturing, material handling, and automation environments due to their ruggedness and precision. Explore more pneumatic components and actuators in EnvMart's comprehensive industrial tools and equipment catalog.
