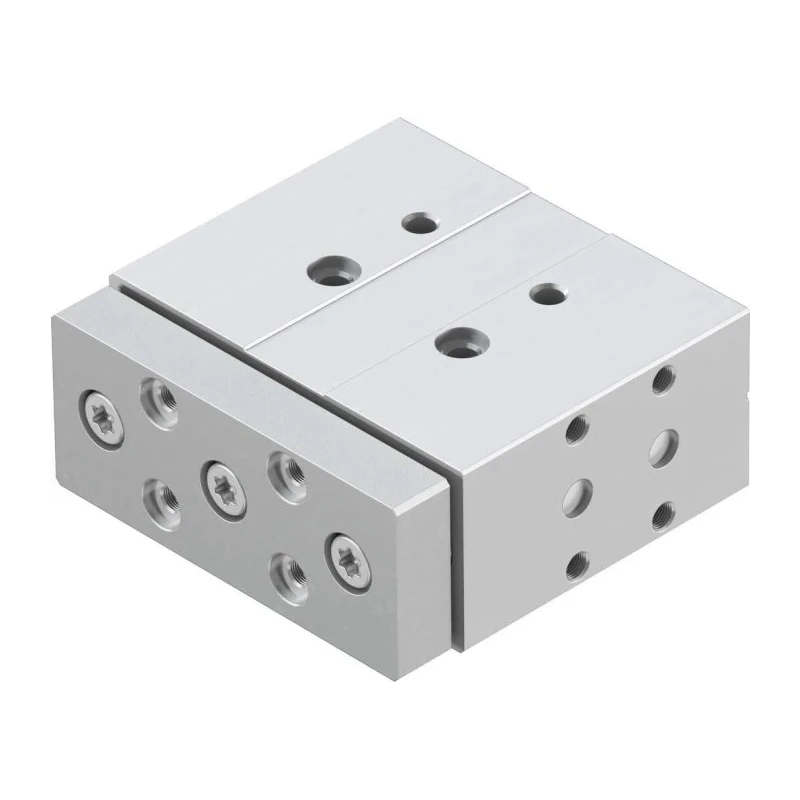

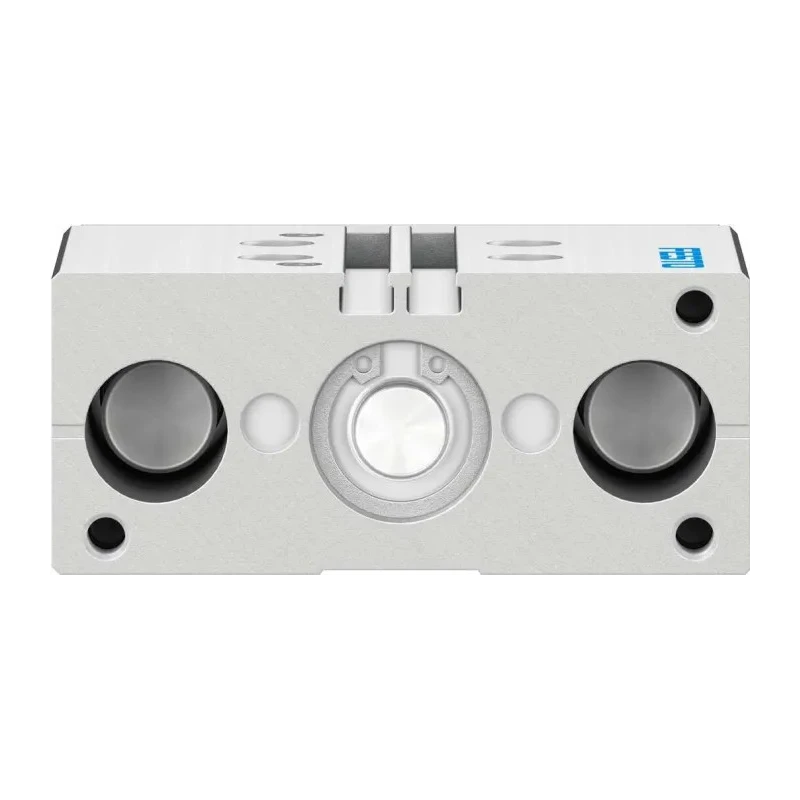

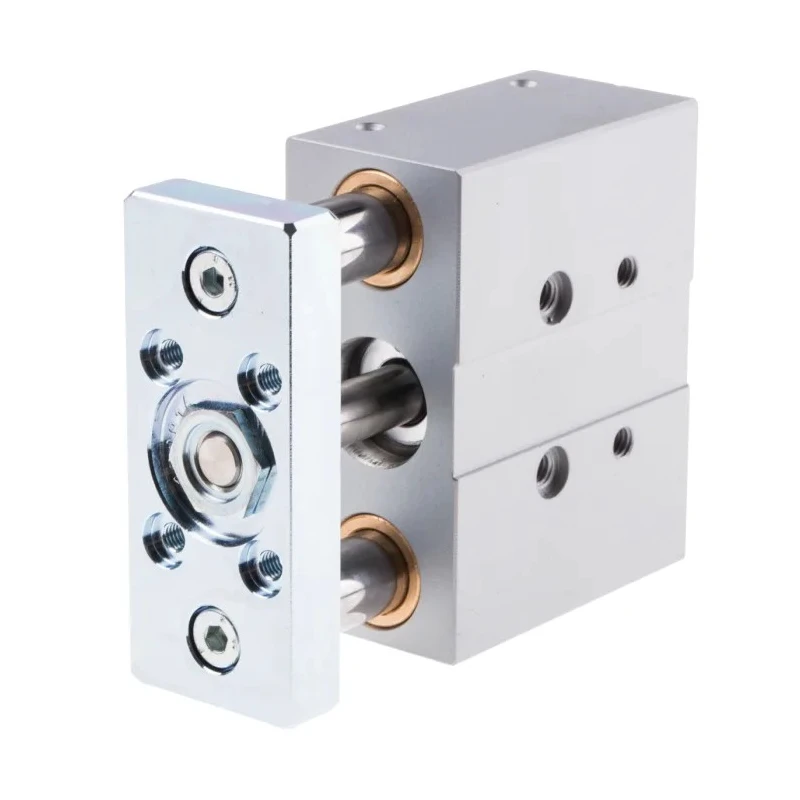

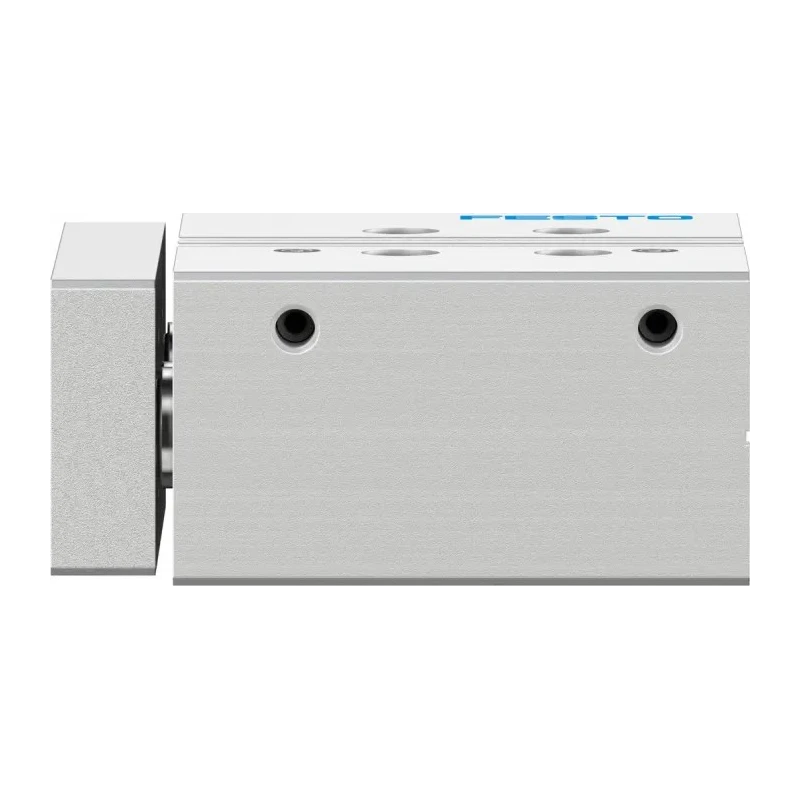

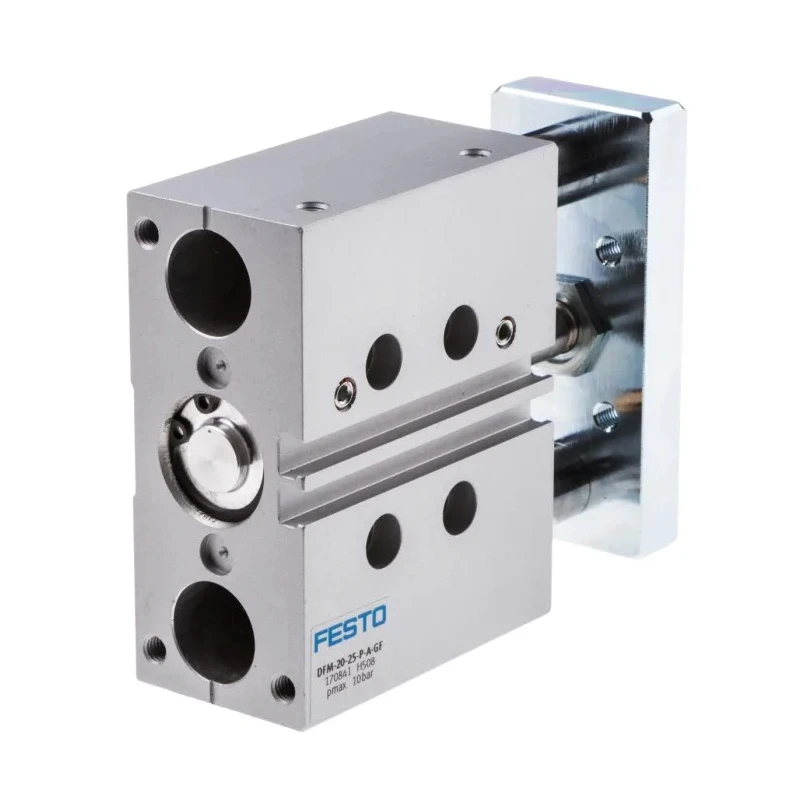

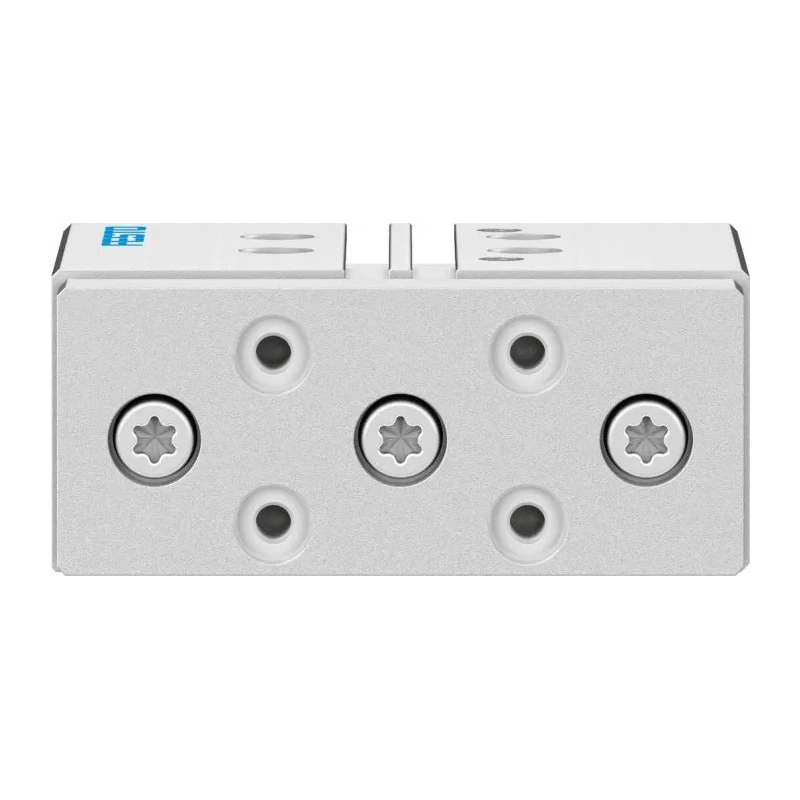

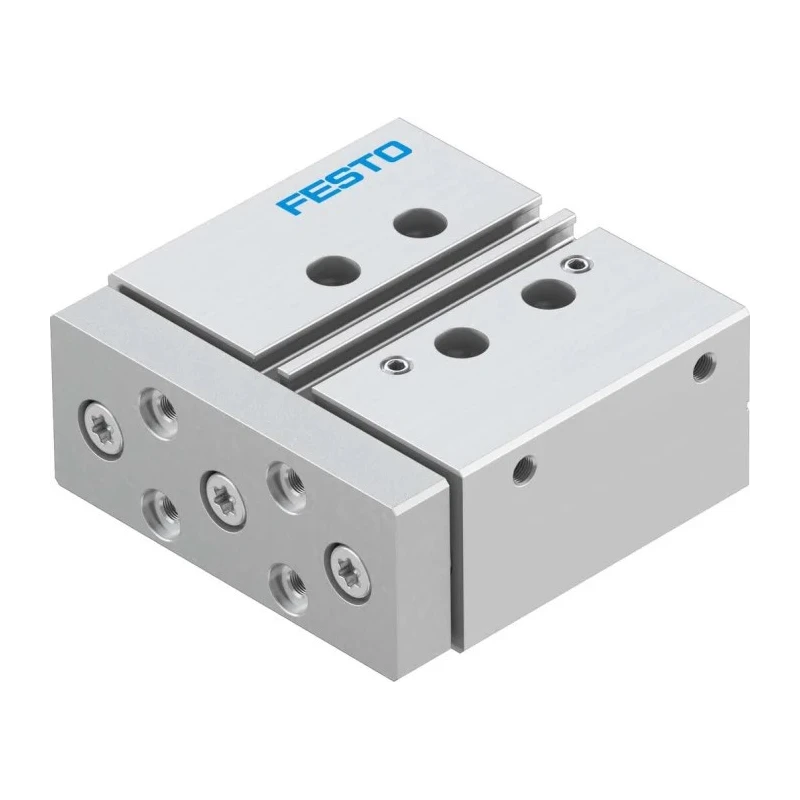

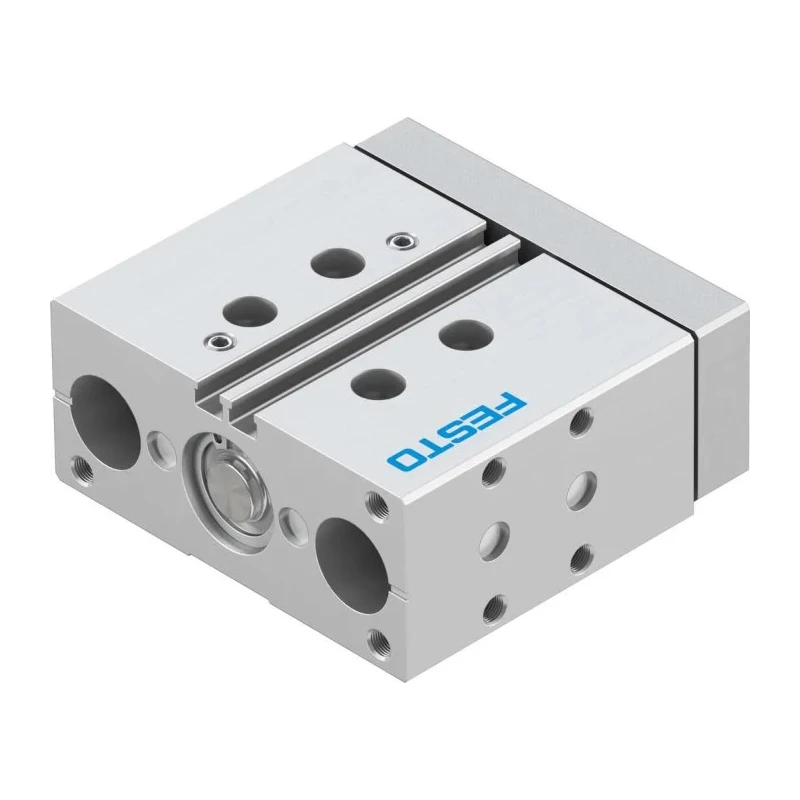

Festo Pneumatic Guided Cylinder 20mm Bore Double Acting Through Hole Mount 10 bar Maximum Operating Pressure DFM-20-25-P-A-GF

Festo DFM-20-25-P-A-GF pneumatic guided cylinder is designed for industrial and manufacturing applications requiring controlled linear motion with lateral guidance. Featuring a 20mm bore diameter and 25mm stroke length, this double acting cylinder allows extension and retraction using compressed air, eliminating the need for spring return mechanisms.

The body is constructed from anodised wrought aluminium alloy, providing lightweight strength and corrosion resistance suitable for demanding environments. The cylinder is mounted using a through hole design and utilizes an M5 piston rod thread for secure installation. Elastomer damping cushions on both ends reduce noise and absorb impact, enhancing operational longevity and smoothness.

The stainless steel piston rod features a single rod design combined with ball bearing guides that ensure rigidity and prevent load fall during lateral movements. The unit is engineered to operate reliably across a broad temperature range from -20°C to +80°C, accommodating harsh industrial conditions.

With a maximum operating pressure of 10 bar and maximum piston speed of 0.8 m/s, this guided cylinder is suitable for applications in oil and gas, packaging, conveyor systems, and other industrial automation processes. Certified to RoHS, ISO 228-1, and ISO 1179-1 standards, it ensures compliance with environmental and performance regulations.

Double acting pneumatic guided cylinder with 20mm bore for precise motion control. Anodised lightweight aluminium body provides durability and corrosion resistance. Through hole mounting and M5 piston rod thread enable flexible installation.

Operating temperature range from -20°C to +80°C accommodates harsh environments. Elastomer cushioning reduces noise and absorbs piston rod impacts. Ball bearing guide enhances load stability and prevents lateral movement.

Single stainless steel piston rod resists corrosion and damage. Maximum operating pressure 10 bar supports medium pressure pneumatic systems. Compact size with dimensions 36mm height, 83mm width, 80mm length. RoHS, ISO 228-1, and ISO 1179-1 certified for environmental and safety standards compliance.

This Festo Pneumatic Guided Cylinder is ideal for use in industrial, construction, manufacturing, packaging, and conveyor automation systems. Its robust design and precise operation make it suitable for lifting, clamping, positioning, and material handling tasks.
