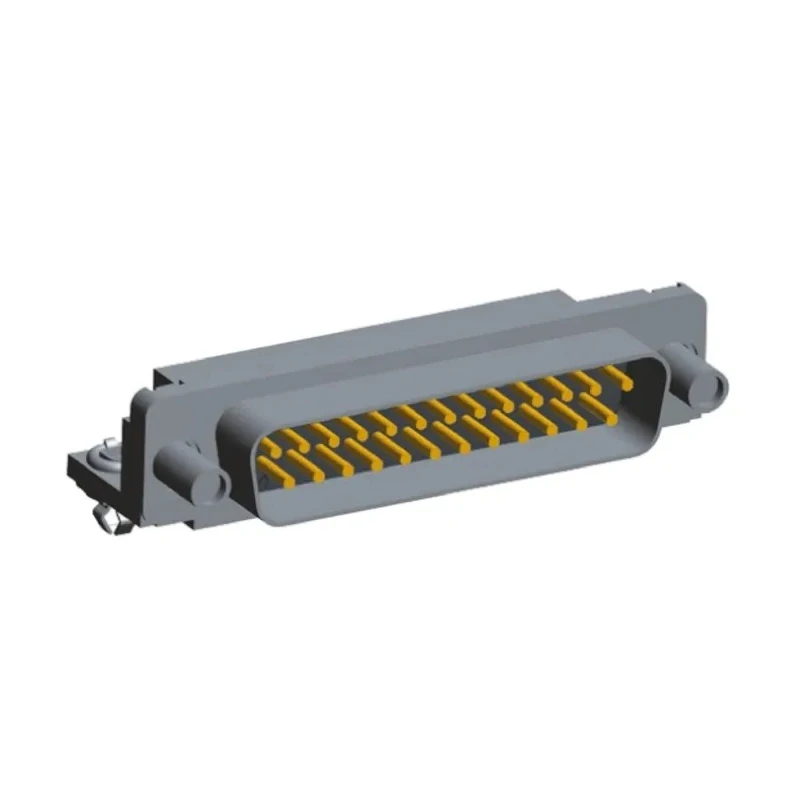

TE Connectivity AMPLIMITE HD-20 25 Way Right Angle 2.76 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC 5747842-6
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | AMPLIMITE HD-20 |
| Mounting Hardware | 4 to 40 UNC Screw Lock |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.76mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 25 |
| Contact Gender | Male |
| Connector Gender | Male |
| D-Sub Shell Size | D |
Key Features
- This D-Sub connector features 25 male contacts for secure data and signal transmission.
- Right angle orientation enables efficient PCB layout and space saving.
- The connector uses thermoplastic housing and brass contacts plated gold over nickel for durability.
- It operates reliably in temperatures from -55°C to 105°C, suitable for diverse environments.
- Includes 4 to 40 UNC screw lock mounting hardware for secure installation.
- Meets RoHS standards ensuring compliance with environmental regulations.
- Designed for through-hole PCB mount facilitating strong mechanical and electrical connections.
- Ideal for industrial, electronic components, and power connector applications.
Product Description
TE Connectivity 5747842-6 AMPLIMITE HD-20 25 Way Right Angle 2.76 mm Pitch Through Hole D-Sub Connector is engineered for precision PCB mounting and reliable data connections in industrial and electronic applications.
The connector features 25 male contacts with a pitch of 2.76 mm, integrated in a thermoplastic housing rated to 94V-0 for flame resistance and robust mechanical protection. Its right angle orientation and through-hole mount type allow for effective space management on PCBs and secure solder termination.
The LED plated brass contacts with gold over nickel plating ensure excellent electrical conductivity and corrosion resistance, suitable for harsh operating environments with temperature ranges from -55°C to 105°C.
The inclusion of 4 to 40 UNC screw lock mounting hardware enhances mechanical stability, preventing accidental disconnections in demanding industrial setups. Designed to comply with RoHS environmental standards, this connector supports sustainable manufacturing practices.
This connector has 25 male contacts providing secure data transmission. Right angle orientation allows a compact PCB footprint. Thermoplastic housing provides excellent durability and flame resistance. Gold over nickel plated brass contacts offer corrosion resistance and reliability.
Operates safely in temperatures from -55°C to 105°C. Includes 4 to 40 UNC screw lock hardware for secure mounting. Suitable for industrial, manufacturing, and electronic equipment applications.
Perfect for electronics manufacturing, industrial instrumentation, and power connector systems, the TE Connectivity AMPLIMITE HD-20 connector is a trusted component for secure and long-lasting electrical interconnections.
Explore more quality connectors in the Electronics & Electricals section on EnvMart for your industrial and electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contacts in this D-Sub connector have a pitch of 2.76 mm.
This model can operate safely at a maximum temperature of 105°C.
It features 25 male contacts for secure data transmission.
It supports through-hole mounting, which facilitates strong mechanical and electrical connections.
The housing is made of thermoplastic, while the contacts are brass with gold over nickel plating.
This connector has a right angle orientation, allowing for efficient PCB layout and space saving.
It includes 4 to 40 UNC screw lock mounting hardware for secure installation.
Yes, it meets RoHS standards, ensuring compliance with environmental regulations.
The minimum operating temperature for this connector is -55°C.
It uses solder termination for secure electrical connections.
It is suitable for industrial, manufacturing, and electronic equipment applications.
The shell size of this connector is D, which is standard for D-Sub connectors.
