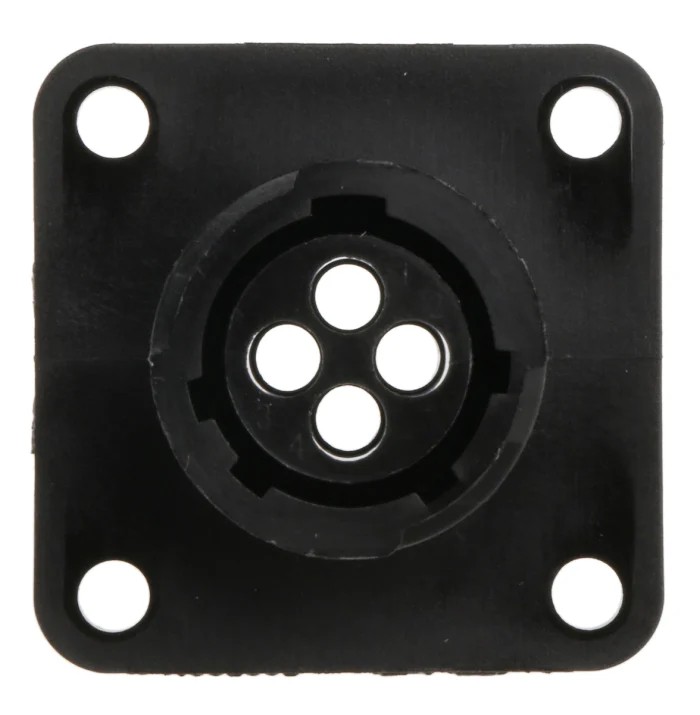

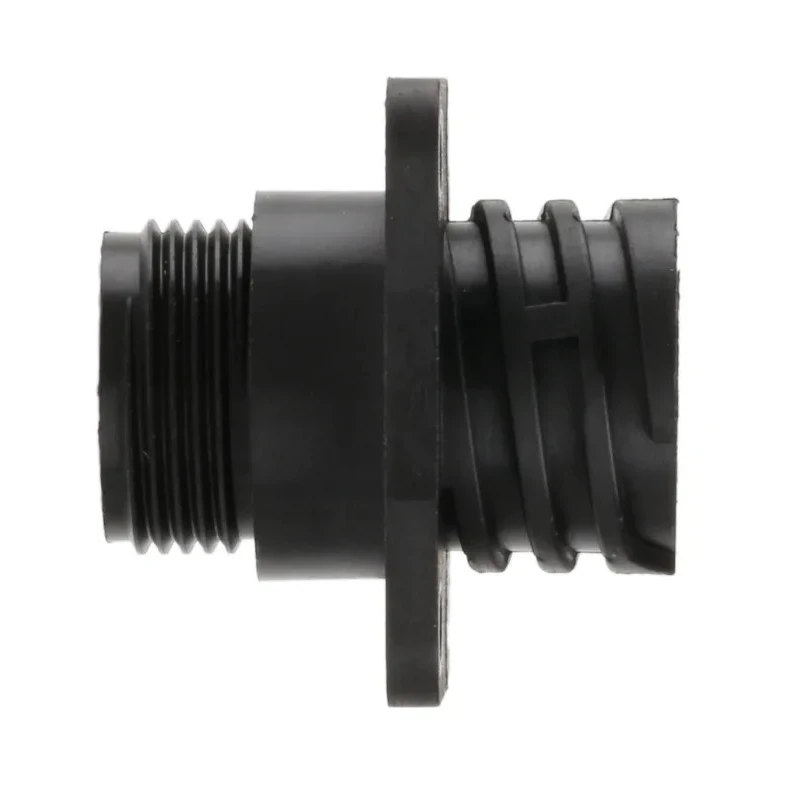

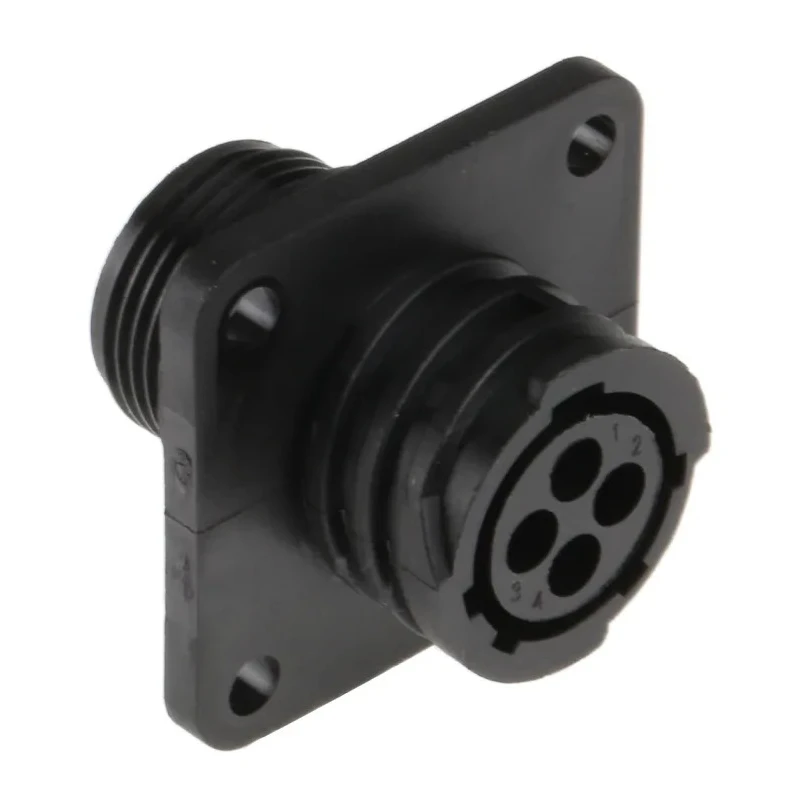

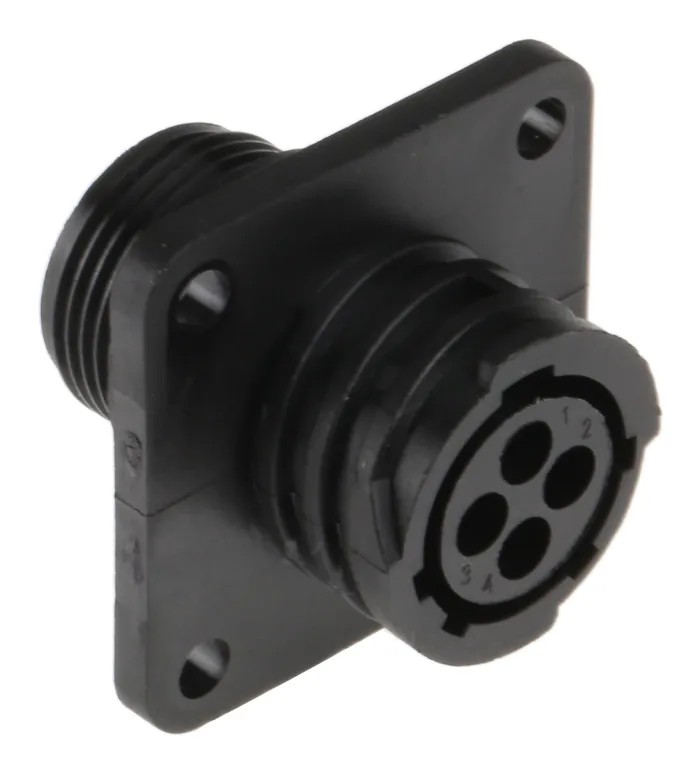

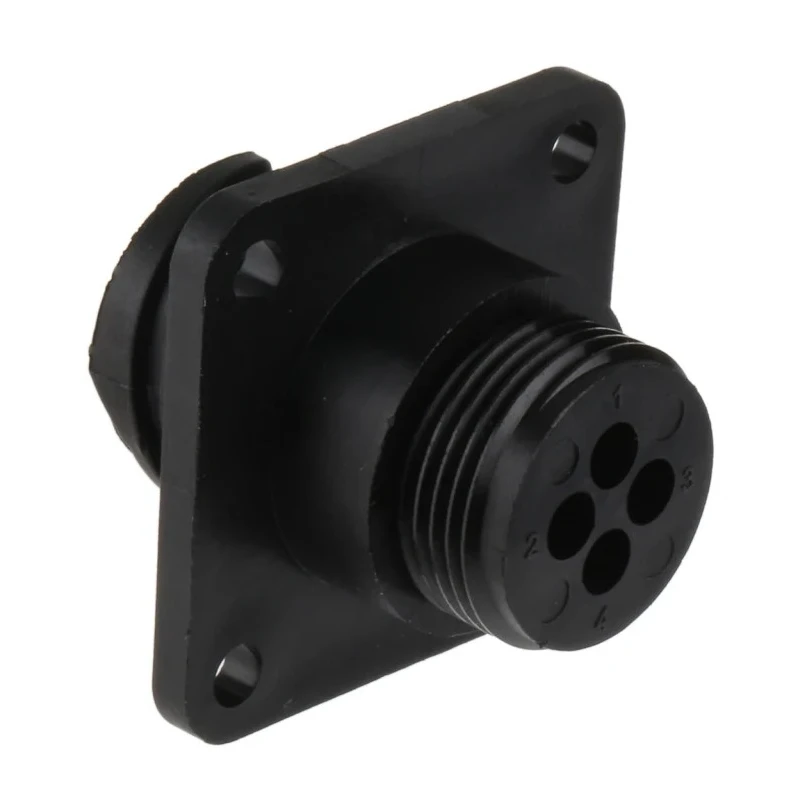

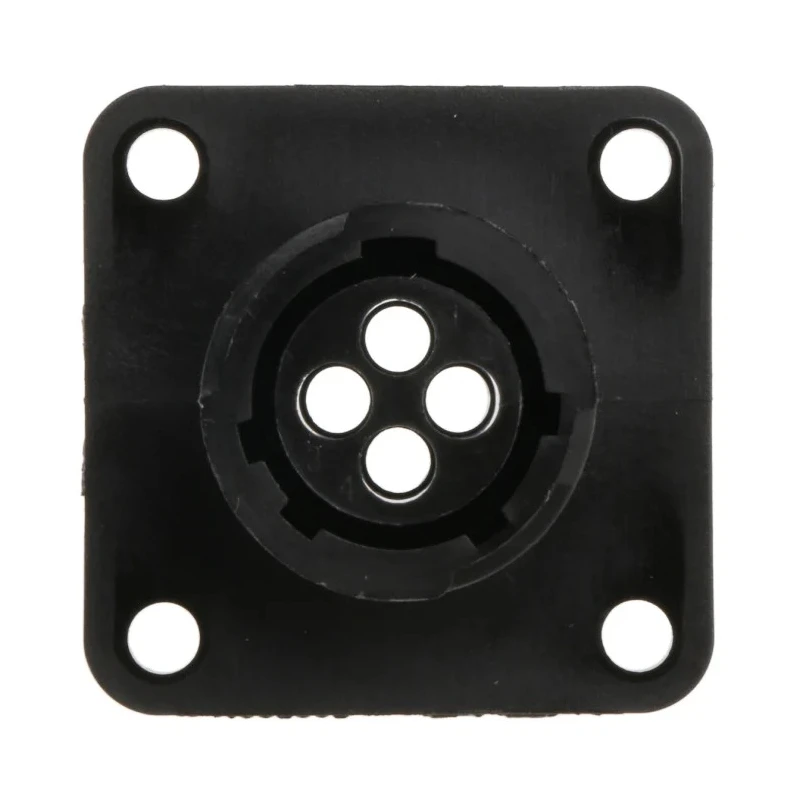

TE Connectivity Circular Connector 4 Contacts Panel Mount Socket Female CPC Series 206430-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Model | 206430-1 |
| Mount Type | Panel Mount |
| Housing Material | Thermoplastic |
| Series | CPC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Shell Size | 11 |
| Mating Type | Keyed |
| Connector Size | Standard |
| Plug/Socket | Socket |
| Coding | A |
| Series 1 | Standard density. Specifically designed for signal and low power current applications. Series 1 connectors are available in 4-37 pole with signals up to 13A |
| Connector, circular, socket shell, panel mount, 4 wayBrand | NEUTRAL |
Key Features
- Features a panel mount design for secure installation.
- Includes 4 contacts supporting low power current signals.
- Socket type connector with female contact gender.
- Thermoplastic housing material rated UL94V-0 for heat resistance.
- Operates at voltages up to 250V with keyed mating type for secure connection.
- Functions reliably in temperatures ranging from -55°C to 105°C.
- Quick connect/disconnect feature reduces assembly time.
- Suitable for industrial machinery, process control, and transportation applications.
Product Description
TE Connectivity 206430-1 Circular Connector 4 Contacts Panel Mount Socket Female CPC Series is engineered for demanding industrial and commercial environments. This circular connector features 4 contacts with a panel mount socket design and female contact gender, making it ideal for signal and low power current applications.
The connector housing is constructed from UL94V-0 rated thermoplastic material, ensuring resistance to heat and mechanical shocks. It operates reliably within a temperature range of -55°C to 105°C and is rated for voltages up to 250V. The keyed mating type and polarized design ensure proper and secure mating to prevent accidental disengagement.
With its quick connect and disconnect capabilities, this connector reduces assembly time and supports rapid field repairs by allowing damaged crimp contacts to be removed and replaced easily. The Series 1 CPC connectors support up to 13A signals and are compatible with size 16 MultiMate pin and socket contacts.
This connector is widely used in industrial machinery, instrumentation, agricultural equipment, HVAC systems, process control, lighting, automotive buses, trucks, and recreational vehicles, proving its versatility and robustness.
Panel mount design for secure and reliable installation. Durable thermoplastic housing with UL94V-0 flame resistance rating. Supports 4 contacts for signal and low power applications up to 13A. Polarized and keyed connection to prevent mating errors.
Resistant to vibration and shock, ideal for harsh environments. Crimp termination supports easy field repair and maintenance. Operating temperature range from -55°C to 105°C. Voltage rating up to 250V. Compatible with Series 1 CPC connector range for various industrial uses.
The TE Connectivity CPC series connectors provide a robust and efficient solution for industrial connection needs, combining durability with ease of use. Explore more Industrial Circular Connectors with EnvMart for diverse industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for voltages up to 250V, making it suitable for various low power current applications.
This connector operates reliably within a temperature range of -55°C to 105°C, allowing it to function in harsh environments.
This model features 4 contacts, designed for signal and low power current applications.
It uses a crimp termination type, which supports easy field repair and maintenance.
The housing is constructed from thermoplastic material rated UL94V-0, ensuring heat resistance and durability.
Yes, it features a panel mount design for secure installation in various applications.
The contact gender of this connector is female, suitable for its intended applications.
The keyed mating type ensures proper and secure mating, preventing accidental disengagement during use.
It is widely used in industrial machinery, process control, agricultural equipment, HVAC systems, and automotive buses, among others.
The shell size of this model is 11, which is standard for its category.
This connector utilizes coding type A, which is part of its design for secure connections.
It belongs to the CPC Series, specifically designed for signal and low power current applications.
