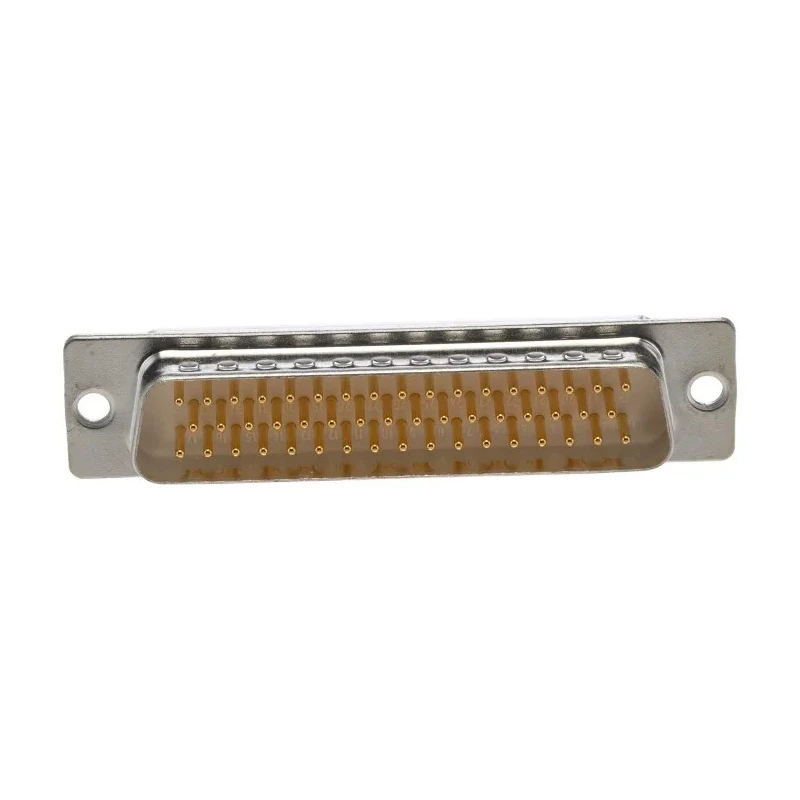

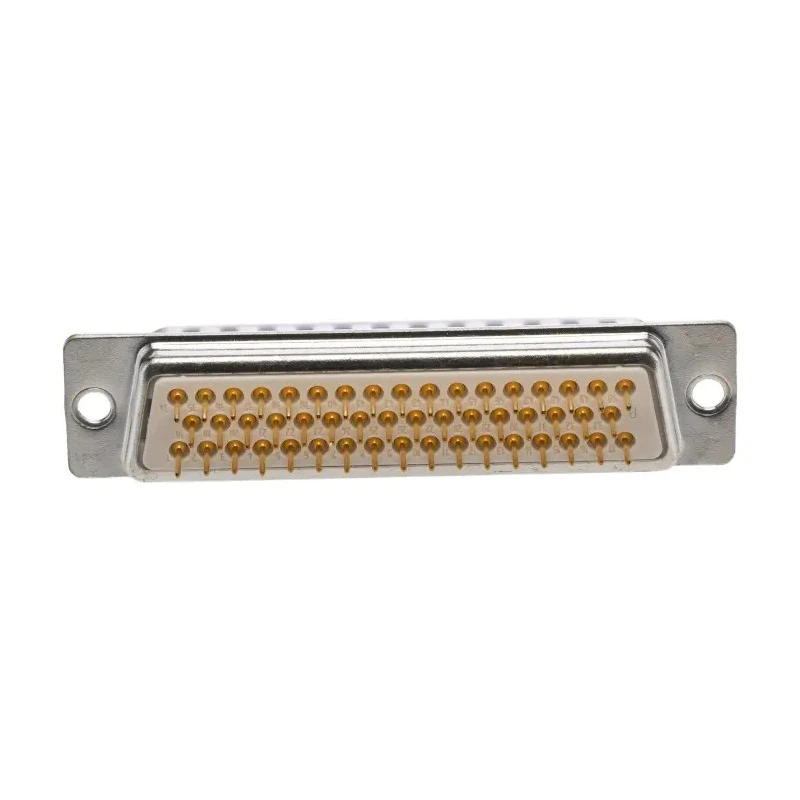

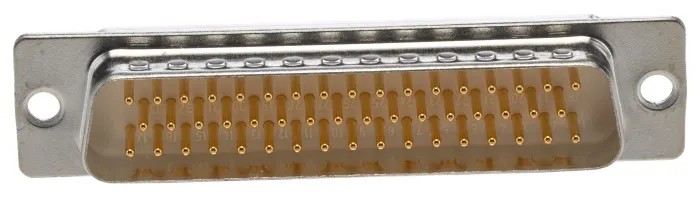

HARTING D-Sub 50 Way Straight Panel Mount D-Sub Connector Male 1kV 7.5A 09670505654
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV |
| Brand | HARTING |
| Orientation | Straight |
| Current | 7.5A |
| Mount Type | Panel Mount |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Series | D-Sub |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold |
| Number of Contacts | 50 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | Standard |
| D-Sub Shell Size | D |
| Provertha TMC 50 Way Through Hole D-sub Connector Plug, 2.84mm PitchBrand | Provertha |
Key Features
- Supports a voltage rating of 1kV ensuring safe electrical insulation.
- Rated for a maximum current of 7.5A suitable for power applications.
- Constructed with a durable steel housing for enhanced mechanical strength.
- Features gold-plated copper alloy contacts for optimal conductivity and corrosion resistance.
- Designed for panel mounting with straight orientation for easy installation.
- Connector gender is male with solder termination for secure PCB connections.
- Operates reliably from -55°C up to 125°C, suitable for harsh environments.
- Meets Standards NFC 93425, DIN 41652, and MIL-C-24308 for performance level 3.
Product Description
HARTING 09670505654 D-Sub 50 Way Straight Panel Mount D-Sub Connector Male is engineered for high-reliability electronic circuit connections. Featuring a panel mount type with straight orientation, this connector supports up to 50 contacts facilitating high-density wiring assemblies. Its rated voltage of 1kV and current capacity of 7.5A make it suitable for various industrial, electronic, and power distribution applications.
The housing is crafted from steel providing robust environmental protection and mechanical durability. Contacts are precision machined from copper alloy and plated with gold to ensure excellent electrical conductivity and long-lasting corrosion resistance. The connector terminals are designed for solder termination, ensuring reliable connections on printed circuit boards.
This connector is compatible with standards NFC 93425, DIN 41652, and MIL-C-24308, assuring interoperability and quality. It features machined contacts along with earth blades for reliable grounding, enhancing electrical safety in demanding installations. The operating temperature range of -55°C to 125°C allows use in extreme temperature conditions commonly encountered in aerospace, automotive, and industrial manufacturing environments.
This product is ideal for use in industrial electronics, power connectors assemblies, telecommunications, and control systems. It ensures secure, durable, and efficient electrical connections where high density and high performance are required.
Supports up to 50 contacts with gold-plated copper alloy contacts for excellent conductivity. Steel housing offers high mechanical strength and durability. Voltage rating of 1kV and current capacity of 7.5A design for power electronics.
Solder termination type ensures stable and secure PCB connections. Wide operating temperature range from -55°C to 125°C for harsh industrial environments. Meets international standards including NFC 93425, DIN 41652, and MIL-C-24308.
Includes earth blade features to enhance grounding and safety performance. Explore more in the HARTING connector category on EnvMart for reliable power and electronic connector solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector supports a voltage rating of 1kV, ensuring safe electrical insulation for various applications.
It is rated for a maximum current of 7.5A, making it suitable for power applications.
The housing is made from steel, and the contacts are machined from copper alloy with gold plating for optimal conductivity and corrosion resistance.
This model operates reliably within a temperature range of -55°C to 125°C, suitable for harsh environments.
It supports up to 50 contacts, facilitating high-density wiring assemblies.
It features a solder termination type, ensuring secure connections on printed circuit boards.
Yes, it is designed for panel mounting with a straight orientation for easy installation.
It meets international standards including NFC 93425, DIN 41652, and MIL-C-24308, assuring interoperability and quality.
The connector gender is male, designed for secure PCB connections.
Yes, it includes earth blade features to enhance grounding and safety performance.
The shell size of this connector is classified as D, which is standard for D-Sub connectors.
The connector is manufactured in India.
