KEMET R46 Film Capacitor X2 Class, ±10% Tolerance, 330 nF Capacitance, 310 V DC/AC, Through Hole Mount R463I33305001K

Free Delivery in India | Lowest Global Shipping Charges

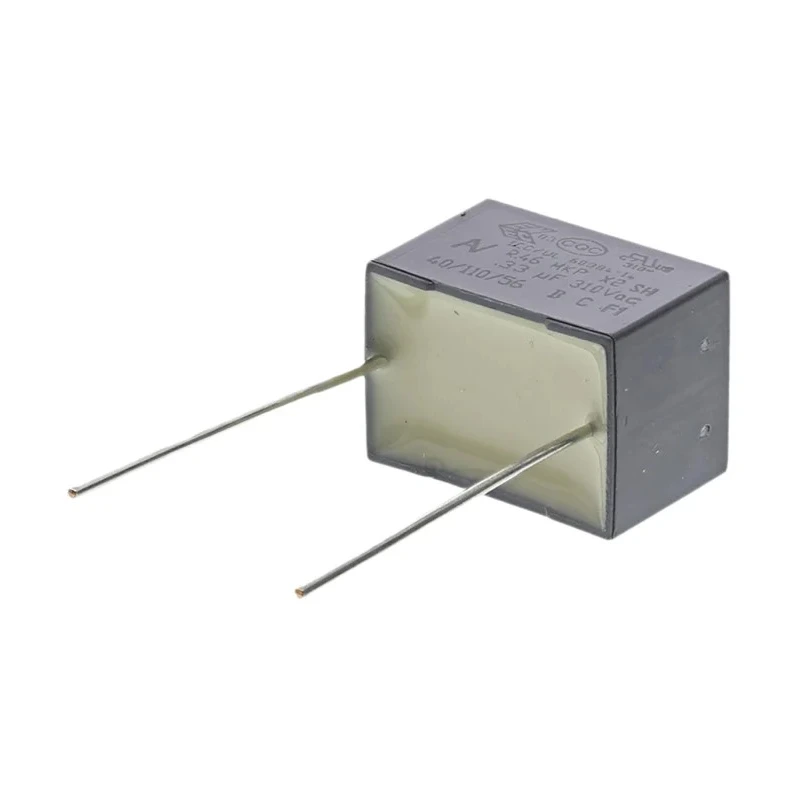

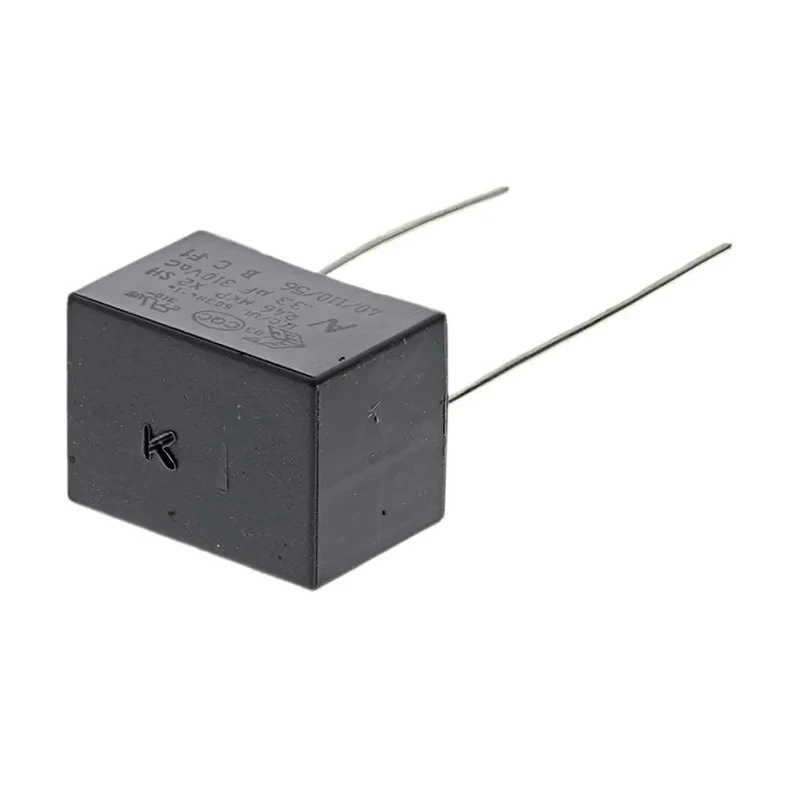

KEMET R46 Film Capacitor X2 Class, ±10% Tolerance, 330 nF Capacitance, 310 V DC/AC, Through Hole Mount R463I33305001K

Name: KEMET R46 Film Capacitor X2 Class, ±10% Tolerance, 330 nF Capacitance, 310 V DC/AC, Through Hole Mount R463I33305001K
Brand: KEMET
SKU: 185737
Price: 0.72 USD
Availability: InStock



Category Film Capacitor Brand KEMET Condition New

Specifications

Country of Origin	India
Capacitance Range	0.01 - 10 μF
Display	screen
Brand	KEMET
Height	12mm
Length	18mm
Model	R463I33305001K
Packaging	Bag
Width	13mm
Mount Type	Through Hole
Series	R46
Maximum Operating Temperature	110°C
Tolerance	±10 %
Capacitance	330nF
Minimum Operating Temperature	-40°C
Terminal type	Radial
Standards/Approvals	RoHS
Pin Count	2
Rated AC Voltage	310V ac
Rated DC Voltage	310V dc
Lead Pitch	15mm
Lead Diameter	0.8mm
Suppression Class	X2
Capacitance tolerance	±20%, ±10%
Lead Spacing	10.0 mm to 37.5 mm

Key Features

Constructed with metallised polypropylene film offering self-healing properties.
Rated for operation in temperature range from -40°C to 110°C.
Designed for electromagnetic interference (EMI) suppression across the line applications.
Features radial terminals with 15mm lead pitch and 0.8mm lead diameter.
Complies with RoHS standards and has approvals including ENEC, UL, cUL, and CQC.
Climatic category 40/110/56 as per IEC 60068-1, suitable for worldwide use.
Convenient packaging in bags with 2-pin count suitable for through hole mounting.

Product Description

KEMET R463I33305001K Film Capacitor is a metallised polypropylene film capacitor with self-healing properties, designed specifically for EMI suppression in across-the-line applications requiring X2 safety classification. It features a capacitance of 330 nF with a tolerance of ±10%, and is rated for 310 V DC and 310 V AC operation.

This through hole mounted capacitor offers a compact design with dimensions approximately 18mm in length, 13mm in width, and 12mm in height, along with a 15mm lead pitch and radial terminal configuration. The operating temperature range is from -40°C up to 110°C, making it suitable for various industrial and commercial electronic use cases.

It complies with strict RoHS environmental regulations and holds certifications such as ENEC, UL, cUL, and CQC, ensuring reliability and safety compliance. The climatic category 40/110/56 per IEC 60068-1 confirms its suitability for challenging temperature and humidity conditions worldwide.

Applications include suppression of electromagnetic interference in electrical and electronic equipment where capacitor failure would not expose electric shock. It is not intended for series connection with main power supplies but is ideal across-the-line EMI suppression.

Metallised polypropylene film construction with self-healing capability. Rated 310 V for both AC and DC voltages at 50/60 Hz frequency. Pin count of 2 with radial terminal type ensuring robust mounting. Capacitance range available from 0.01 to 10 μF, this one is 330 nF with ±10% tolerance.

Temperature endurance between -40°C and +110°C for reliable performance. Packaging suited for ease of use in assembly, delivered in bags. Safety standard compliant - X2 suppression class for EMI control.

This model is an excellent choice for electronics manufacturing, industrial instrumentation, and power supply filtering applications. Environmentally compliant and tested under 2200 V DC/1500 V AC screening, KEMET R463I33305001K ensures dependable performance in a broad spectrum of sectors including industrial controls, communications, and electronic assemblies.
