HARTING Heavy Duty Power Connector Insert 16A 500V Han E Series Female 16 Contacts 09330162701

Free Delivery in India | Lowest Global Shipping Charges

HARTING Heavy Duty Power Connector Insert 16A 500V Han E Series Female 16 Contacts 09330162701

Name: HARTING Heavy Duty Power Connector Insert 16A 500V Han E Series Female 16 Contacts 09330162701
Brand: HARTING
SKU: 185705
Price: 30.91 USD
Availability: InStock



Category Heavy Duty Power Connector Insert Brand HARTING Condition New

Specifications

Country of Origin	Germany
Voltage	500V
Brand	HARTING
Orientation	Straight
Mount Type	Cable
Contact Material	Copper Alloy
Current Rating	16A
Series	Han E
Thread Size	M3 x 10
Sub Type	Connector Insert
Number of Rows	2
For Use With	Heavy Duty Power Connector
Pole Format	16P+E
Contact Plating	Silver
Number of Contacts	16
Connector Gender	Female
Minimum Wire Size mm²	0.75mm²
Maximum Wire Size mm²	2.5mm²

Key Features

Constructed from copper alloy with silver-plated contacts for excellent conductivity.
Features a straight body orientation to facilitate installation in tight spaces.
Designed to support wire sizes from 0.75 mm² to 2.5 mm² ensuring flexible connectivity.
Includes a robust screw termination for secure and reliable wire fixation.

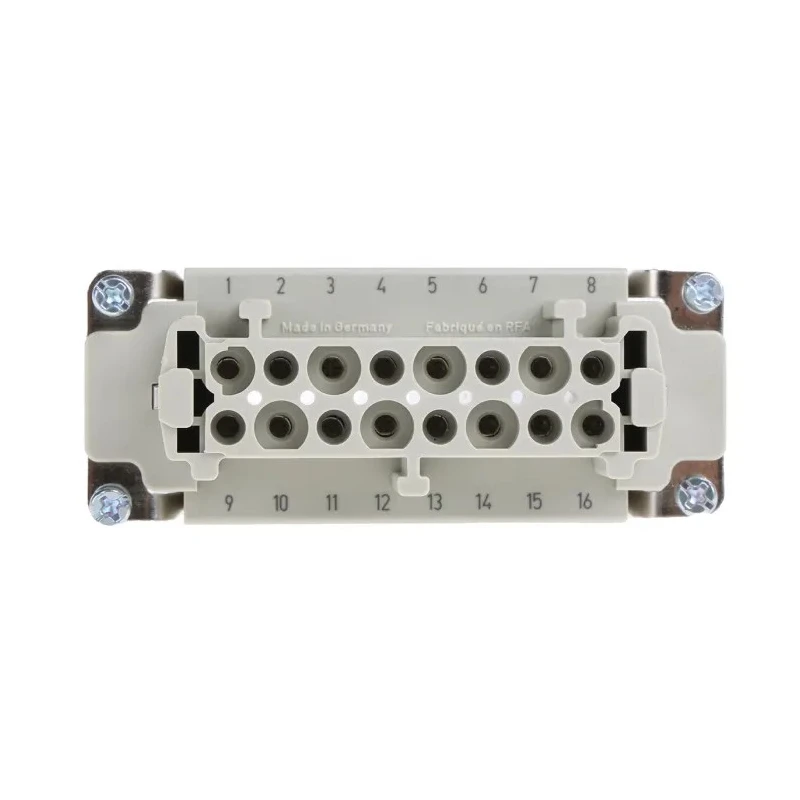

Consists of 16 contacts arranged in two rows maximizing connectivity while saving space.
Supports high current applications up to 16 amps and voltage up to 500 volts.
Ideal for power distribution in industrial machinery and automation systems.
Suitable for use in electrical panels and mechanical assemblies requiring weather-resistant connections.

Product Description

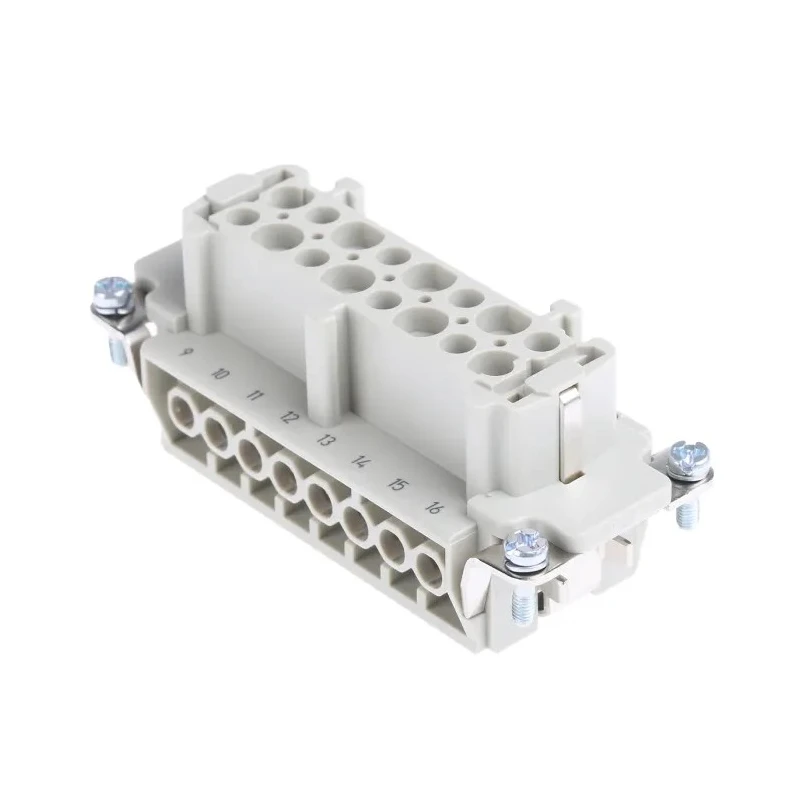

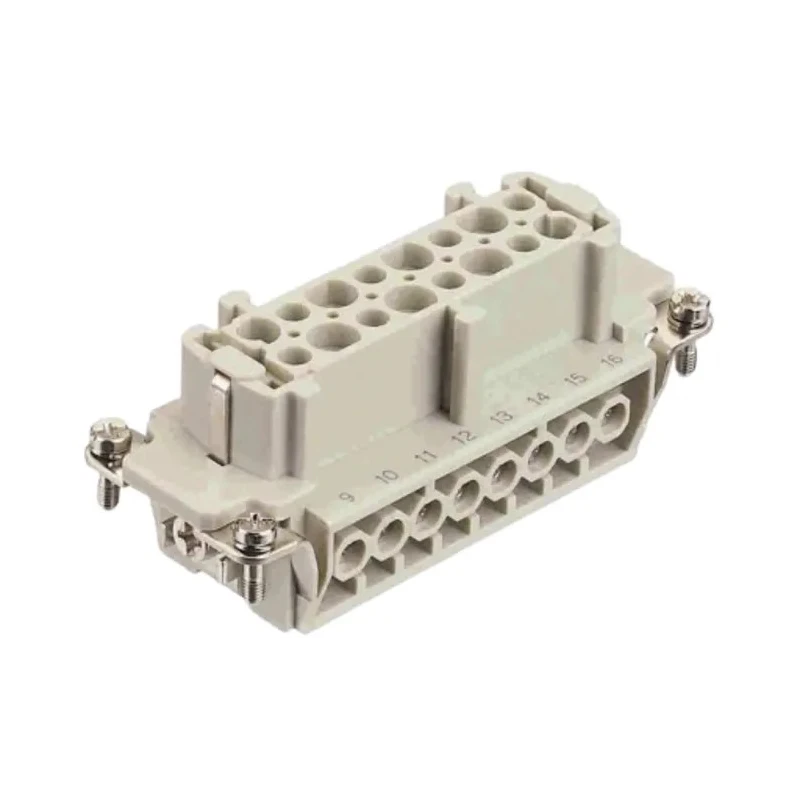

HARTING 09330162701 Heavy Duty Power Connector Insert is a precision-engineered female connector insert from the Han E series, designed to provide reliable power distribution in demanding industrial and commercial applications. Rated at 16A current and 500V voltage, this connector supports robust electrical connections critical for automation systems, machinery, and outdoor installations.

Manufactured using copper alloy with silver plating, the contacts offer superior conductivity and reduced electrical resistance. The straight orientation of the connector facilitates easy installation even in confined spaces, making it suitable for a wide range of industrial cabinet and panel configurations.

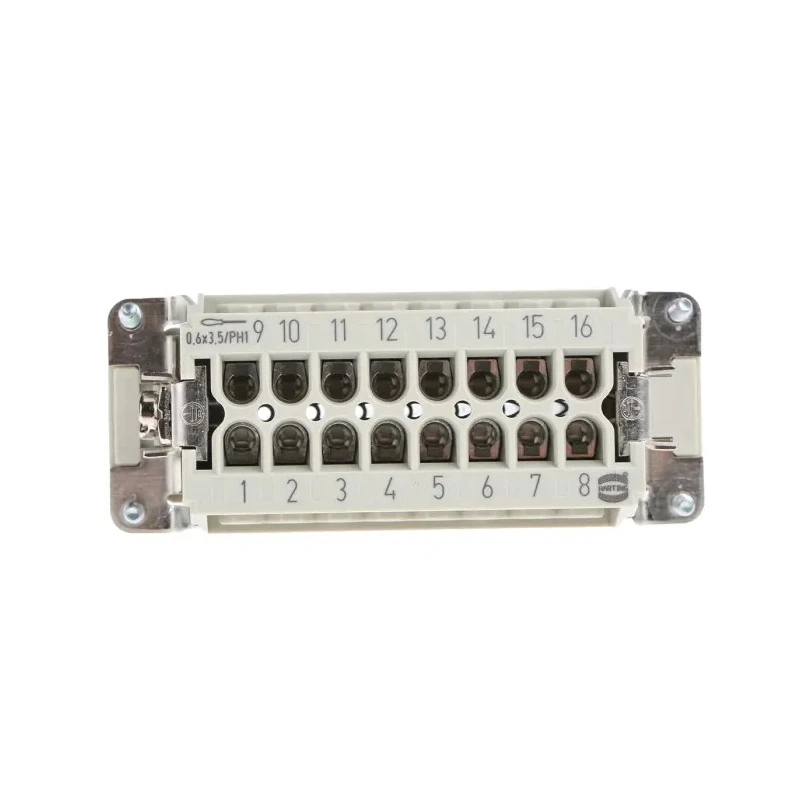

This connector insert features 16 contacts arranged in two rows, each capable of accommodating wire sizes ranging from 0.75 mm² to a maximum of 2.5 mm². The reliable screw termination method enhances connection stability, especially in environments subject to vibrations and mechanical stresses, thereby ensuring long-lasting secure electrical contact.

Designed explicitly for heavy-duty use, the Han E series ensures efficient power transmission and durability across applications including electrical panels, industrial machinery power links, and mechanical assemblies with space constraints. This connector is engineered to maintain performance in outdoor conditions, offering enhanced resistance where environmental factors are a concern.

Constructed with copper alloy for enhanced electrical conductivity. Silver-plated contacts minimize resistance and improve connection quality. Screw termination provides secure, durable wire fastening. Straight body orientation simplifies installation in space-limited enclosures.

16 contacts arranged in 2 rows optimize compactness and connection density. Supports wire sizes from 0.75 mm² to 2.5 mm² for versatile cable compatibility. Rated for 16A current and 500V voltage ensuring suitability for high power applications.

Ideal for power distribution in industrial automation and mechanical assemblies. Manufactured in Germany to stringent quality standards.

Explore a complete range of HARTING Heavy Duty Power Connector Inserts and modules in the Power Connectors category at EnvMart for your industrial and commercial connectivity requirements.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This connector insert is rated for a current of 16A and a voltage of 500V, making it suitable for high power applications.

It is constructed from copper alloy with silver-plated contacts, which enhance conductivity and reduce electrical resistance.

The connector insert features a straight body orientation, which facilitates installation in tight spaces.

This model has 16 contacts arranged in two rows, optimizing compactness and connection density.

It supports wire sizes ranging from 0.75 mm² to a maximum of 2.5 mm², allowing for versatile cable compatibility.

It utilizes a screw termination method, providing secure and reliable wire fixation, especially in vibration-prone environments.

This connector is ideal for power distribution in industrial machinery, automation systems, electrical panels, and mechanical assemblies requiring weather-resistant connections.

This connector insert is manufactured in Germany to stringent quality standards.

The pole format of this connector is 16P+E, indicating it has 16 contacts plus an earth connection.

The mounting type for this connector is cable, designed for easy integration into various setups.

This connector insert belongs to the Han E series, which is designed for heavy-duty applications.

The contacts are silver-plated, which minimizes resistance and improves connection quality.
