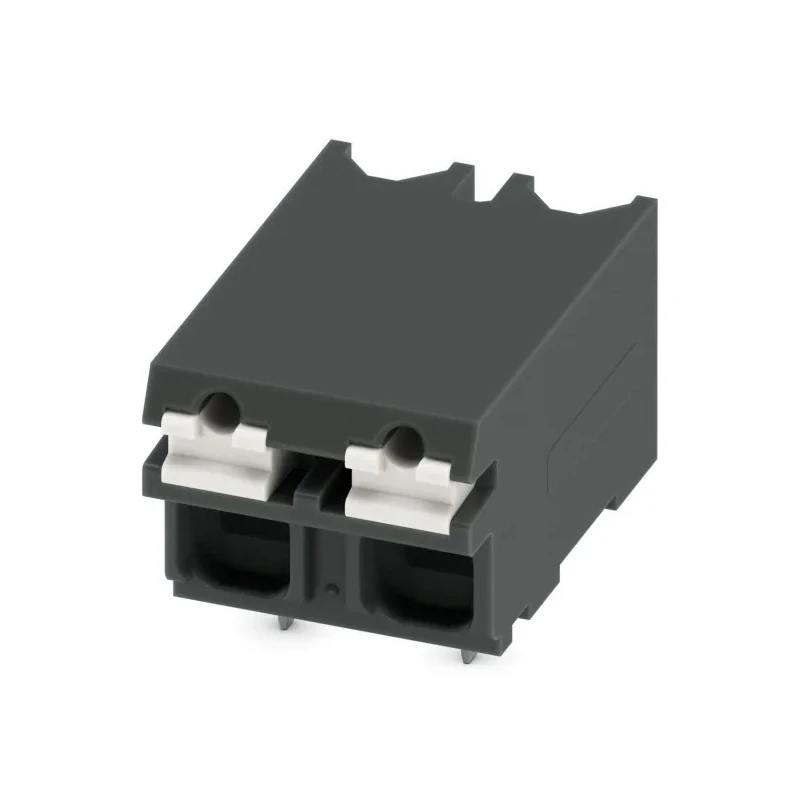

Phoenix Contact PCB Terminal Block 2-Contact 5.08 mm Pitch Surface Mount 13.5A 500V SPT-SMD 1.5/ 2-H-5.08 R24 1824857
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | Phoenix Contact |
| Colour | Black |
| Orientation | Straight |
| Current | 13.5A |
| Length | 9.08mm |
| Model | 1824857 |
| Depth | 13.6mm |
| Width | 7.7mm |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Series | SPT-SMD 1.5/ 2-H-5.08 R24 |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Number of Contacts | 2 |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 16AWG |
| Wire Connection Method | Spring |
Key Features
- Handles currents up to 13.5 A and a voltage rating of 500 V.
- Constructed from robust Liquid Crystal Polymer housing material.
- Suitable for wire sizes from 0.2 mm² to 1.5 mm² (24 AWG to 16 AWG).
- Employs push-in spring connection technology for reliable and tool-free connection.
- Single row, straight orientation with a compact size of 9.08 mm length and 7.7 mm width.
- Available in horizontal and vertical versions with anchoring and soldering pins for PCB stability.
- Packaged in tape-on-reel format for automated assembly processes.
- Color is black for identification and aesthetics.
Product Description
Phoenix Contact 1824857 PCB Terminal Block is designed for reliable electrical connections on printed circuit boards, suitable for industrial and commercial electronic applications. This terminal block offers a 2-contact configuration with a precise 5.08 mm pitch, facilitating easy integration in various electronic circuits.
The terminal block supports currents up to 13.5 A and voltages of 500 V, making it suitable for moderate power applications. Its housing material is Liquid Crystal Polymer, ensuring durability and excellent insulating properties. The surface mount type allows for straightforward placement on PCBs.
Featuring push-in spring technology, this component allows fast, tool-free wiring, ensuring secure and reliable connections for conductors ranging from 0.2 mm² to 1.5 mm² cross-sectional area (24 to 16 AWG). The straight orientation with a single row layout and dimensions of 9.08 mm length, 7.7 mm width, and 13.6 mm depth make it compact yet practical.
The product is available in versions with horizontal and vertical mounting options. Horizontal versions include two anchoring pins for precise PCB alignment, while vertical versions have twin soldering pins for firm attachment. The tape-on-reel packaging adheres to IEC 60283-3 standards, enabling automated reflow soldering processes that increase manufacturing efficiency.
Ideal for use in manufacturing, electronics assembly, industrial controls, automation systems, and other electronic component applications. Handles currents up to 13.5 A and voltage of 500 V. Push-in spring connection technology allows tool-free wiring.
Liquid Crystal Polymer housing ensures durability and insulation. Supports wire sizes 0.2 mm² to 1.5 mm² (24 AWG to 16 AWG). Compact design with 2 contacts and 5.08 mm pitch. Tape-on-reel packaging suitable for automated assembly.
Horizontal and vertical mounting options available. Explore more PCB Terminal Block solutions at EnvMart for your electronics assembly and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block handles currents up to 13.5 A and has a voltage rating of 500 V.
It supports wire sizes ranging from 0.2 mm² to 1.5 mm², which corresponds to 24 AWG to 16 AWG.
The terminal block features a pitch of 5.08 mm and has a 2-contact configuration.
The housing is constructed from Liquid Crystal Polymer, providing durability and excellent insulating properties.
It employs push-in spring connection technology, allowing for tool-free wiring.
The dimensions are 9.08 mm in length, 7.7 mm in width, and 13.6 mm in depth.
It is available in both horizontal and vertical mounting options, with anchoring and soldering pins for stability.
It is packaged in tape-on-reel format, suitable for automated assembly processes and compliant with IEC 60283-3 standards.
The terminal block has a straight orientation with a single row layout.
The country of origin for this terminal block is India.
This model belongs to the SPT-SMD 1.5/ 2-H-5.08 R24 series.
It is ideal for use in manufacturing, electronics assembly, industrial controls, and automation systems.
