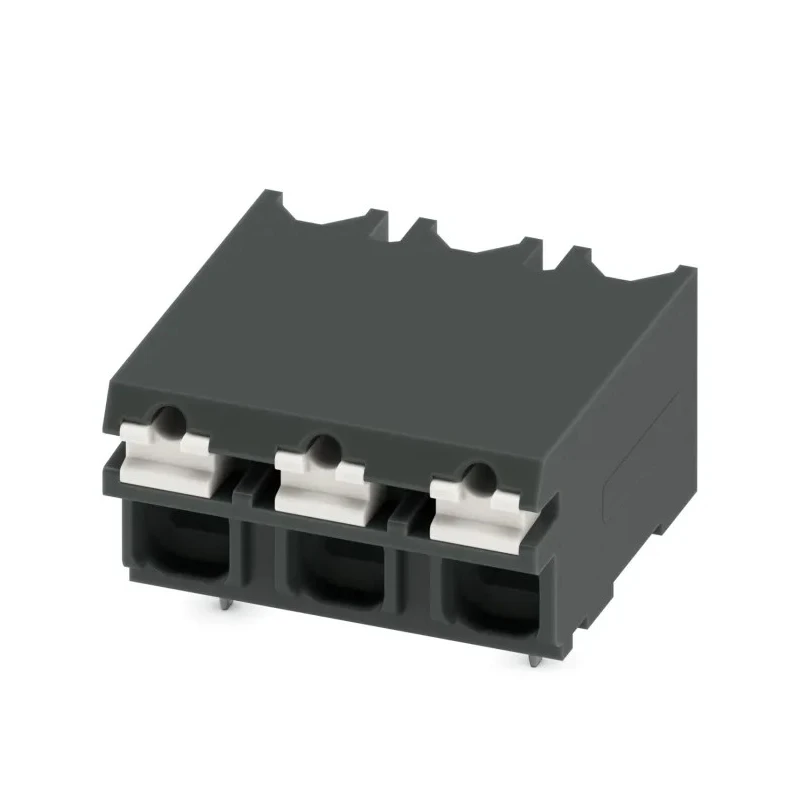

Phoenix Contact PCB Terminal Block 3-Contact, 5 mm Pitch, Surface Mount, 13.5A, 500V, 1 Row SPT-SMD 1.5/3-H-5.0 R32 1824750
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 500V |
| Brand | Phoenix Contact |
| Colour | Black |
| Orientation | Straight |
| Current | 13.5A |
| Length | 14mm |
| Model | 1824750 |
| Depth | 13.6mm |
| Width | 7.7mm |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Series | SPT-SMD 1.5/ 3-H-5.0 R32 |
| Number of Rows | 1 |
| Pitch | 5mm |
| Number of Contacts | 3 |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 16AWG |
| Wire Connection Method | Spring |
Key Features
- Three-contact PCB terminal block with 5 mm pitch for compact design.
- Supports current up to 13.5 A and voltage up to 500 V.
- Surface mounting type suitable for automated PCB assembly.
- Constructed with a liquid crystal polymer housing for high durability.
- Utilizes push-in spring connection technology for tool-free wiring.
- Guaranteed secure wire connection with spring actuation lever.
- Compatible with wire sizes from 0.2 mm² to 1.5 mm² (24 to 16 AWG).
- Horizontal alignment with anchoring pins for precise PCB positioning.
Product Description
Phoenix Contact 1824750 PCB Terminal Block is a high-quality connector designed for electronic circuit boards with a 5 mm pitch spacing and a 3-contact configuration. This surface mount terminal block supports currents up to 13.5 A and voltages of 500 V, making it ideal for diverse power and signal distribution applications in industrial electronics.
Manufactured in Germany, the terminal block housing is made from liquid crystal polymer, providing excellent mechanical strength and thermal stability. Its straight orientation and black color facilitate integration into various PCB designs.
The product utilizes a push-in spring connection system combined with a spring cage and direct push-in technology. This enables a fast, tool-free connection and disconnection of solid or stranded conductors within the range of 0.2 mm² to 1.5 mm² (AWG 24 to AWG 16). The spring actuation lever ensures a secure and reliable wire connection.
SPT-SMD 1.5/3-H-5.0 R32 series terminal blocks come in tape-on-reel packaging which supports automated placement and soldering during PCB assembly processes, adhering to IEC 60283-3 standards. The horizontal versions include two anchoring pins for accurate alignment on the PCB, while vertical versions have twin soldering pins for strong mechanical attachment.
Three-contact, 5 mm pitch terminal block compatible with SMT PCB assembly. Rated current of 13.5 A and voltage of 500 V for robust electrical performance. Liquid crystal polymer housing ensures high mechanical and thermal resistance.
Push-in spring connection enables fast, secure, and tool-free wiring. Tape on reel packaging suitable for automated assembly lines. Anchoring pins provide precise PCB alignment and positioning.
This terminal block series is extensively used in industrial electronics, power distribution, control cabinets, automation systems, and other applications requiring reliable PCB connectors. Its compact design and efficient connection method improve manufacturing efficiency and electrical safety.
Explore more in EnvMart’s Electronics Components category for advanced PCB connectors and terminal solutions from Phoenix Contact.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block supports a maximum current rating of 13.5 A.
It has a voltage rating of 500 V, making it suitable for various power and signal distribution applications.
The pitch size of this model is 5 mm, allowing for compact PCB designs.
This terminal block is compatible with wire sizes ranging from 0.2 mm² to 1.5 mm² (24 to 16 AWG).
The housing is constructed from liquid crystal polymer, providing high mechanical strength and thermal stability.
It utilizes a push-in spring connection method, allowing for fast, tool-free wiring.
This model features a straight orientation, which facilitates integration into various PCB designs.
The dimensions are 14 mm in length, 13.6 mm in depth, and 7.7 mm in width.
Yes, it is designed for surface mounting and comes in tape-on-reel packaging, making it suitable for automated assembly lines.
This terminal block features three contacts, allowing for multiple connections in a compact design.
It belongs to the SPT-SMD 1.5/3-H-5.0 R32 series, which is designed for specific PCB applications.
This product is manufactured in Germany, ensuring adherence to high manufacturing standards.
