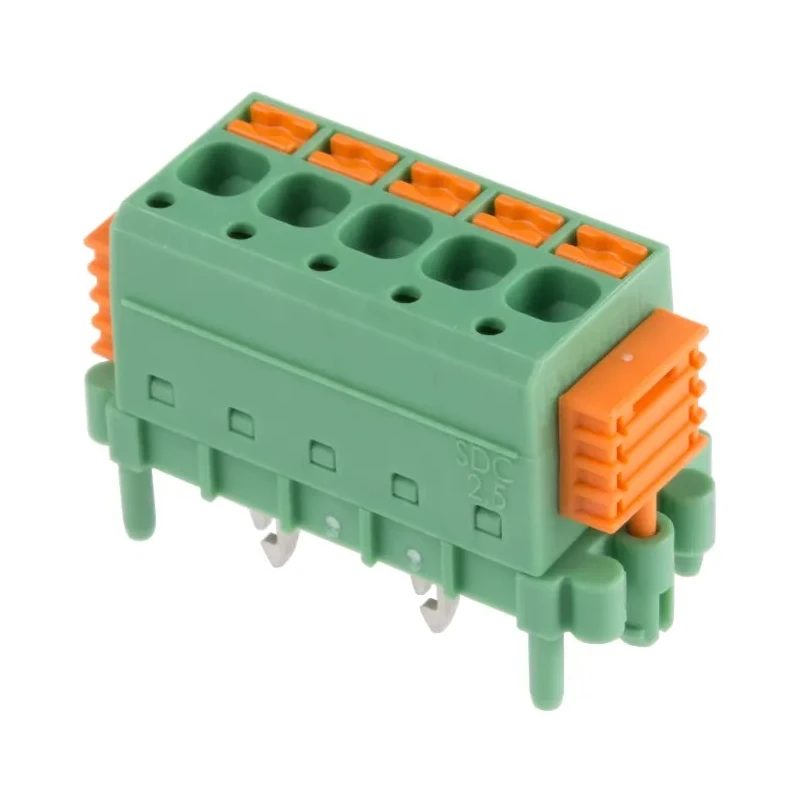

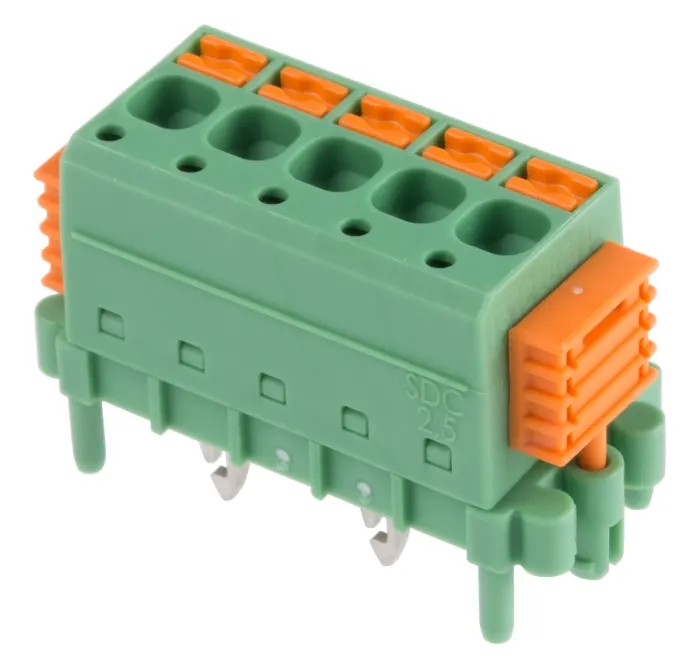

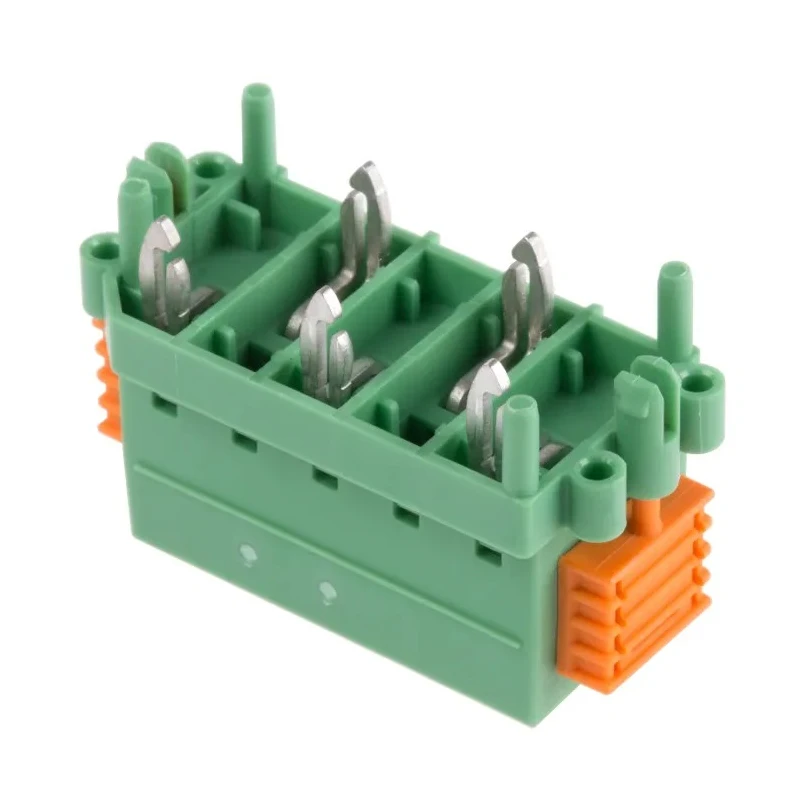

Phoenix Contact SDC 2.5/ 5-PV-5.0-ZB Series Straight PCB Terminal Block, 5 Contact 5 mm Pitch 320V 12A 1 Row 1864066

Phoenix Contact 1864066 SDC 2.5/ 5-PV-5.0-ZB Series Straight PCB Terminal Block combines engineering precision and efficient design to provide a dependable PCB connection solution operating at 320 volts and 12 amperes. This single-row terminal block features 5 contacts spaced with a 5 mm pitch, making it an ideal component for compact PCB layouts.

The connector utilizes innovative SKEDD push-in spring contact technology, which allows direct wire connection without soldering or press fitting. This feature significantly saves manufacturing time and cost by removing the need for special tooling or machinery. The polyamide housing material provides excellent mechanical stability and environmental resistance, supporting reliable performance even in vibration-prone environments.

The built-in locking mechanism firmly secures the terminal block to the PCB, ensuring a vibration-resistant connection that meets industrial standards such as cULus, UL Recognised, and EU RoHS compliance. Designed to handle nominal wire cross-sections of 2.5 mm², it supports diverse applications across automotive, industrial electronics, consumer electronics, machine construction, control cabinets, power tools, white goods, solar power, and medical systems.

This product enhances process efficiency by eliminating thermal stress on PCBs from soldering, thereby extending PCB lifespan. Furthermore, the design supports green technology initiatives by facilitating easy removal for recycling.

SKEDD push-in spring contacts enable solderless and press-fit-free PCB mounting. Polyamide housing material ensures robust mechanical and chemical resistance. Secure locking mechanism provides vibration-resistant connection on PCB.

Supports nominal wire size of 2.5 mm² and nominal current capacity of 12A. Compliant with cULus Recognised, EU RoHS, and UL Recognised standards. Compatible with industrial sectors including automotive, control cabinets and power tools.

Improves efficiency by removing need for socket bases or mating parts. Environmentally conscious design facilitates easy recycling. Extends PCB lifespan by eliminating thermal processing steps related to soldering.
