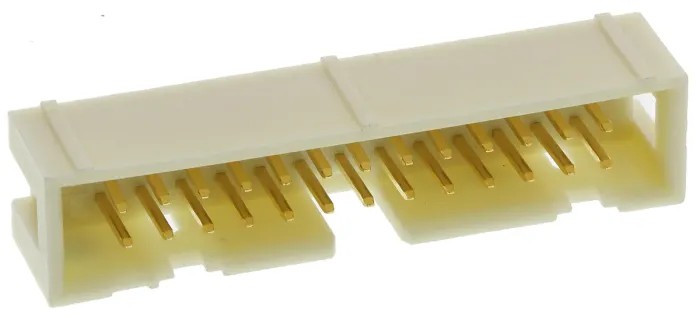

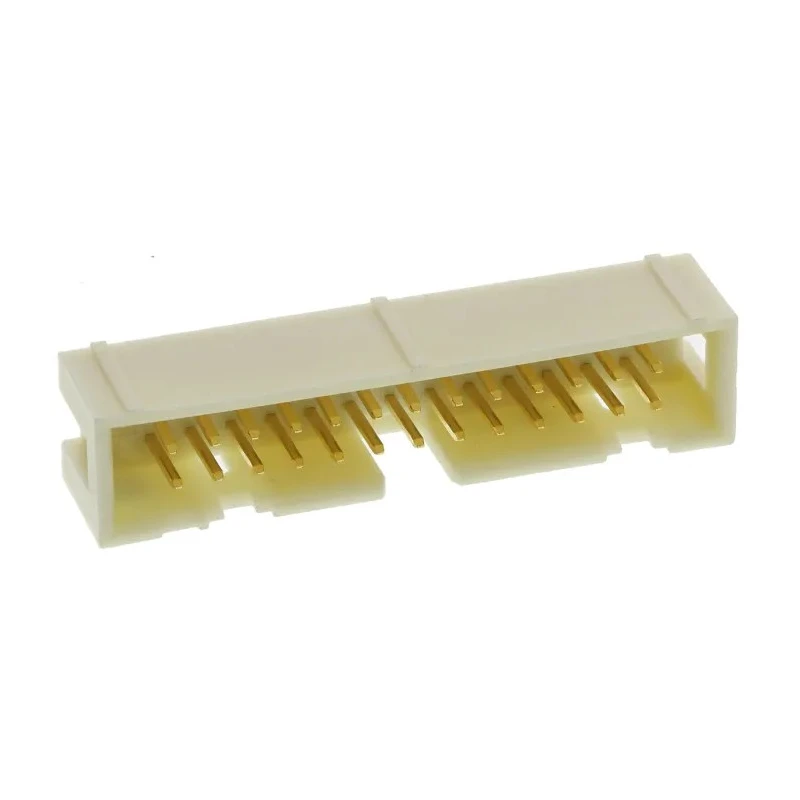

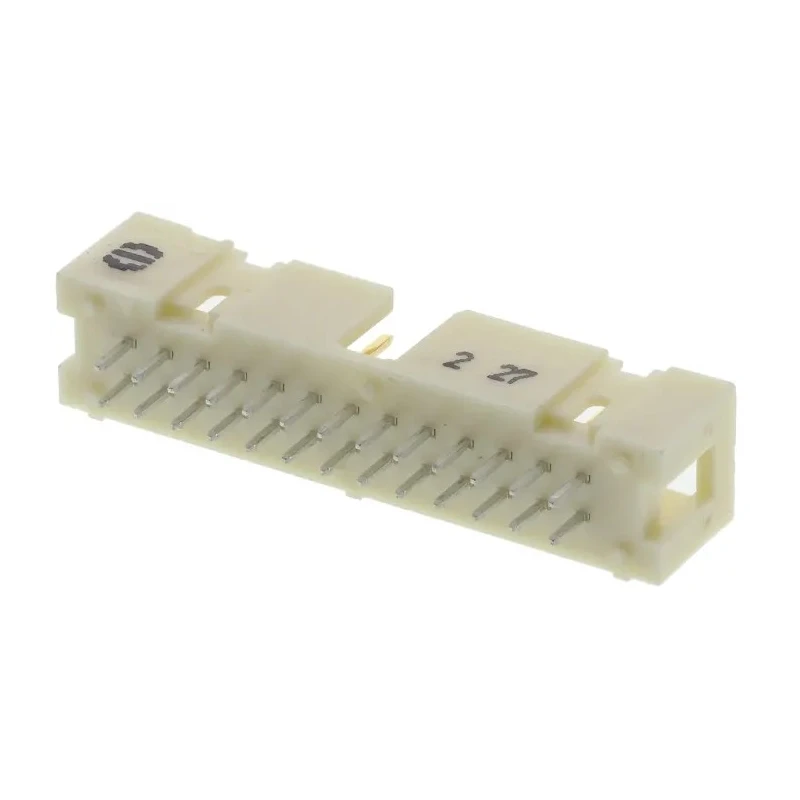

HARTING SEK 19 Series Straight Through Hole PCB Header, 26 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 09195266324
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 1000V |
| Brand | HARTING |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polycyclohexylenedimethylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | SEK 19 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Constructed with polycyclohexylenedimethylene terephthalate housing for high durability.
- Contacts are made of copper alloy with gold plating to ensure excellent conductivity and corrosion resistance.
- Designed for through hole mounting and solder termination type.
- Supports operating voltages up to 1000 V and currents up to 1 A.
- Operating temperature range from -55°C to 125°C suitable for demanding applications.
- Shrouded male header with low profile for secure connector mating.
- Complies with IDC, BT224, DIN41651, and DIN EN 60603-13 standards.
- Ideal for industrial, electronic, and manufacturing use cases requiring robust PCB connections.
Product Description
HARTING 09195266324 PCB Header from the SEK 19 Series is a high-quality, straight through hole male header with 26 contacts arranged in 2 rows at a 2.54 mm pitch. It features a shrouded design to protect contacts and ensure reliable connections in wire-to-board applications.
The housing is made of durable polycyclohexylenedimethylene terephthalate, offering excellent mechanical strength and thermal stability. Contact materials consist of copper alloy with gold plating, facilitating superior electrical conductivity and corrosion resistance.
This header supports an operating voltage of up to 1000 V and current ratings of 1 A. It is designed for through hole PCB mounting with solder termination, guaranteeing strong mechanical and electrical bonds. The operating temperature range is from -55°C to 125°C, enabling use in harsh environments.
The HARTING SEK 19 Series adheres to standards such as IDC, BT224, DIN41651, and DIN EN 60603-13 and holds approvals including UL E102079 and CSA 98267 for safety and quality assurance.
Housing material polycyclohexylenedimethylene terephthalate ensures durability. Copper alloy contacts with gold plating provide reliability and corrosion resistance. Suitable for high voltage and current PCB connector applications.
Designed for through hole mounting with solder termination. Operating temperature range supports demanding industrial environments. Shrouded connectors protect contacts and improve connection safety. Meets multiple international standards and certifications.
This PCB Header is suitable for a wide range of electronic manufacturing, industrial automation, and electrical component assembly applications requiring a high-quality, reliable wire-to-board connector solution. Its compact 2-row, 26-contact configuration with a 2.54 mm pitch makes it a standard choice in many professional PCB designs.
Explore more from HARTING and the SEK 19 Series connectors on EnvMart for advancing your electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating voltage for this PCB header is 1000 V.
This model features 26 contacts arranged in 2 rows.
The contacts are arranged at a pitch of 2.54 mm.
It supports through hole mounting with solder termination type.
The housing is made of polycyclohexylenedimethylene terephthalate, and the contacts are made of copper alloy with gold plating.
The operating temperature range is from -55°C to 125°C.
Yes, it complies with IDC, BT224, DIN41651, and DIN EN 60603-13 standards.
The current rating for this header is 1 A.
It uses a wire-to-board connector system.
The contacts in this model are male.
The country of origin for this PCB header is Switzerland.
This model features a shrouded design that protects contacts and ensures reliable connections.
