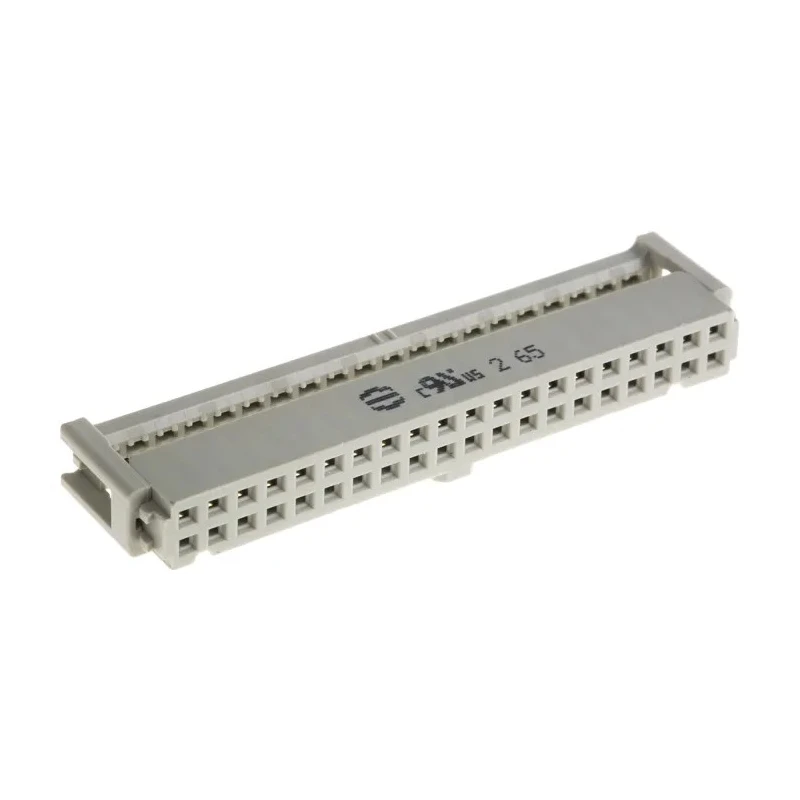

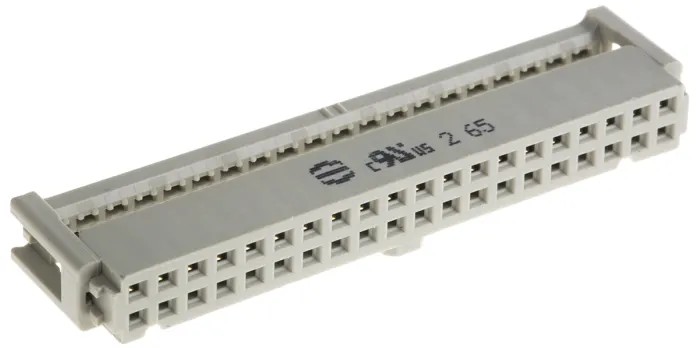

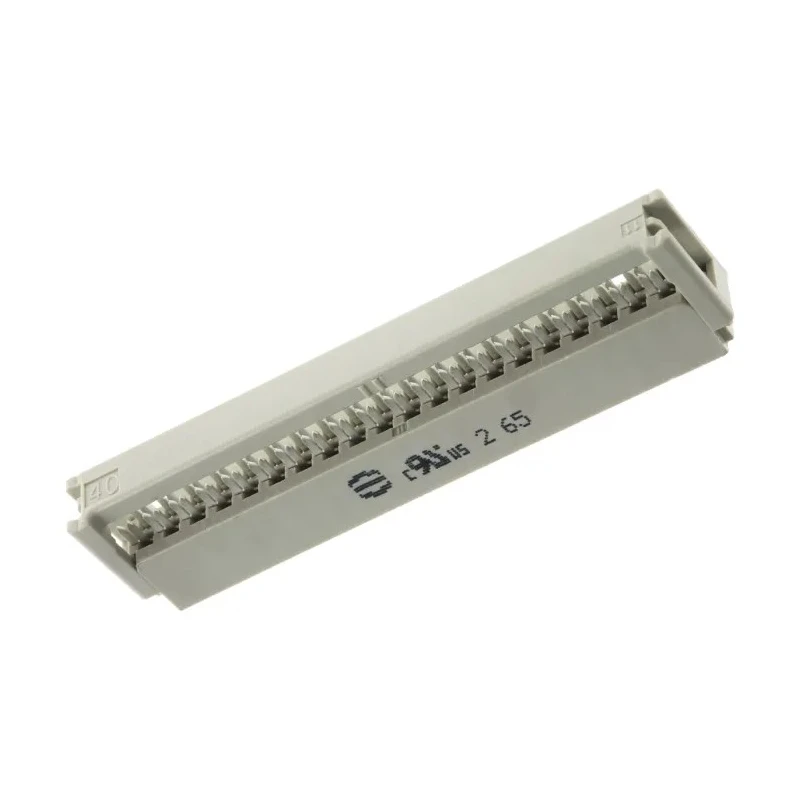

HARTING IDC Connector Female 40 Contacts 2 Row Cable Mount Gold Contact Plating SEK 18 Series 320V AC 2.5A 09185406803
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 320V ac |
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 2.5A |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | SEK 18 |
| Termination Type | IDC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
| HARTING 40-Way IDC Connector Female for Cable, 2 RowBrand | HARTING |
Key Features
- Designed for cable mounting with right-angle orientation.
- Gold plating on contacts ensures corrosion resistance and excellent conductivity.
- Compact pitch of 2.54mm supports high-density wiring.
- Operating voltage capacity up to 320V AC and current rating of 2.5A.
- Terminated by Insulation Displacement Contact (IDC) type for ease of installation.
- Durable housing made of polybutylene terephthalate supports operation from -55°C up to 125°C.
- Contact material copper alloy provides durability and reliable performance.
- Compliant with standards such as DIN41651 and IEC 603-13.
Product Description
HARTING 09185406803 IDC Connector Female for Cable is a high-quality electrical connector designed for precision and reliability in electronic applications. Featuring 40 contacts arranged in 2 rows with a pitch of 2.54mm, this connector supports efficient compact wiring solutions for cable-mounted setups.
The connector contacts are plated with gold to ensure optimal conductivity and to resist corrosion over extended periods. Its copper alloy contacts and a robust polybutylene terephthalate housing enable operation in a wide temperature range from -55°C to 125°C, ensuring durability even in demanding environments.
Operating at a maximum voltage of 320V AC and a current of 2.5A, this connector supports standard industrial electrical demands. The right-angle orientation facilitates space-saving PCB designs and cable routing. Termination is via IDC technology, allowing fast and reliable cable connection without the need for soldering.
The connector complies with international standards including DIN41651, IEC 603-13, and MIL-C 83503, assuring compatibility and safety for industrial and commercial use.
This product is an ideal choice for electronic, industrial, and power applications requiring a dependable female IDC Connector with high contact count and robust construction. It is frequently used in manufacturing, automation, control systems, and communication equipment.
Designed for cable mount applications. Gold-plated copper alloy contacts provide reliability. Polybutylene terephthalate housing offers thermal and mechanical stability. Supports voltages up to 320V AC and currents up to 2.5A.
Termination type is Insulation Displacement Contact for efficient installation. Operating temperature range from -55°C to 125°C accommodates harsh environments. Connector gender is female, arranged in 2 rows with 40 contacts total.
Conforms to recognized standards ensuring quality and safety. Explore additional connector options and related components in the Electronics & Electricals category on EnvMart for comprehensive connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This IDC connector has a maximum voltage rating of 320V AC and a current rating of 2.5A.
The contacts in this model are arranged with a pitch of 2.54mm, allowing for compact wiring solutions.
The housing is made from polybutylene terephthalate, and the contacts are made of copper alloy with gold plating for enhanced conductivity and corrosion resistance.
It operates within a temperature range of -55°C to 125°C, making it suitable for harsh environments.
This connector features 40 contacts arranged in 2 rows, facilitating efficient connections in compact spaces.
This model utilizes Insulation Displacement Contact (IDC) technology for efficient and reliable cable connections without soldering.
Yes, it complies with standards such as DIN41651, IEC 603-13, and MIL-C 83503, ensuring compatibility and safety for industrial applications.
This connector is designed with a right-angle orientation, which aids in space-saving PCB designs and cable routing.
This model is a female connector, designed for cable mounting applications.
The country of origin for this connector is India.
It is suitable for electronic, industrial, and power applications, particularly in manufacturing, automation, control systems, and communication equipment.
This connector is shrouded, which provides additional protection for the contacts and enhances the reliability of connections.
