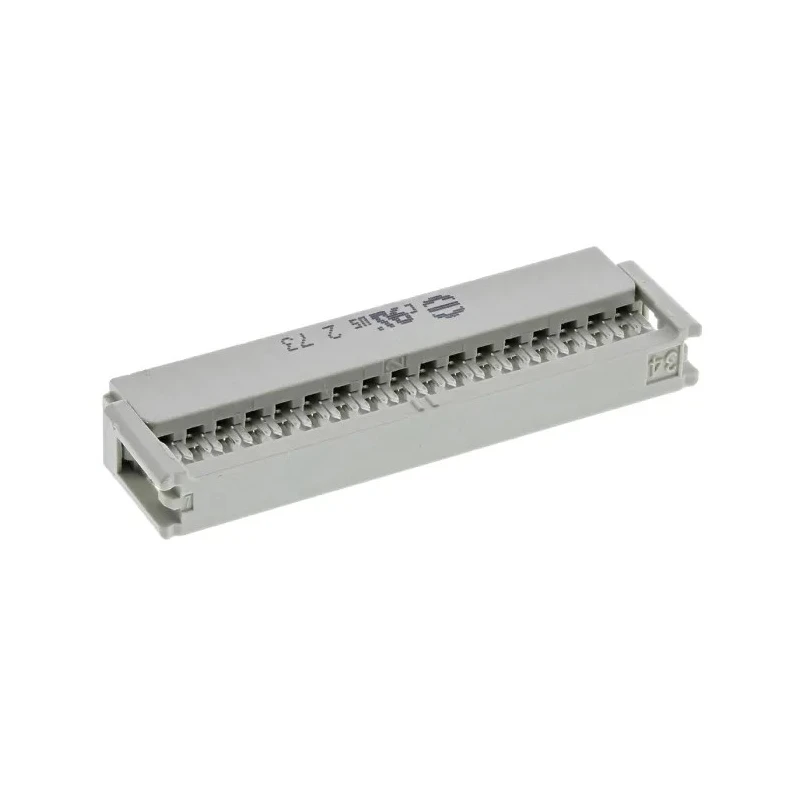

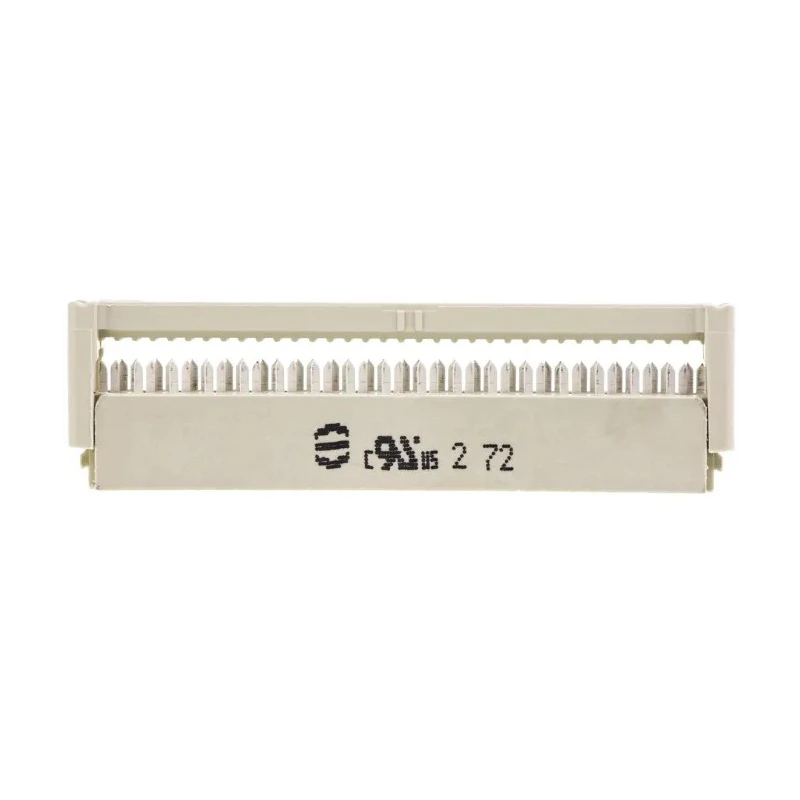

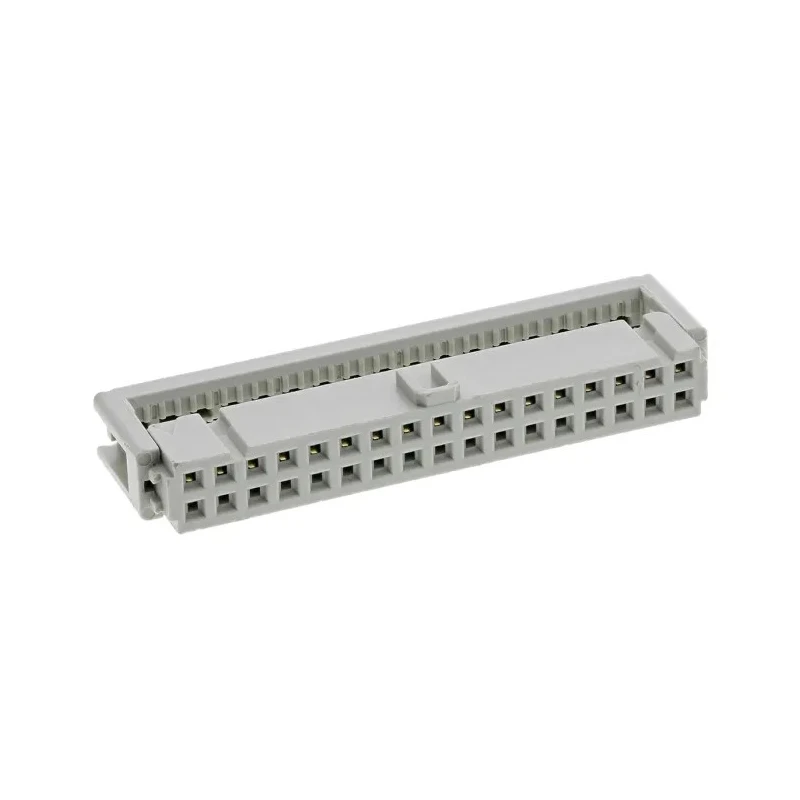

HARTING 34-Way IDC Connector Female for Cable, 2 Row, 2.5A, 320V AC, Gold Plated Contacts, SEK 18 Series 09185346803
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 320V ac |
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 2.5A |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | SEK 18 |
| Termination Type | IDC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 34 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
| RS PRO 34-Way IDC Connector Female for Cable, 2 RowBrand | RS PRO |
| HARTING 34-Way IDC Connector Female for Cable, 2 RowBrand | HARTING |
Key Features
- This IDC connector features 34 contacts arranged in 2 rows for reliable cable termination.
- It supports a current rating of 2.5 amperes and a voltage rating of 320 volts AC.
- Contacts are gold plated to ensure excellent conductivity and corrosion resistance.
- The connector housing is made from durable polybutylene terephthalate material with a right angle orientation for cable mounting.
- Operating temperature range is wide from -55°C to 125°C for industrial and harsh environments.
- Termination type is IDC (Insulation Displacement Contact) suitable for quick and secure connections.
- The connector complies with multiple industry standards including DIN41651 and IEC 603-13.
- Part of the SEK 18 series designed by HARTING for industrial connectivity solutions.
Product Description
HARTING 09185346803 is a high-quality 34-way IDC Connector designed for cable mounting applications, featuring 2 rows of female contacts. It is rated for 2.5A current and 320V AC voltage, making it suitable for robust electronic and industrial equipment requiring reliable signal connections. The contact plating is gold for superior electrical performance and resistance to corrosion, while the housing is constructed from polybutylene terephthalate (PBT) with a right angle orientation facilitating space-efficient installations.
This connector supports a wide operating temperature range from -55°C to 125°C, able to withstand harsh environmental conditions commonly encountered in industrial manufacturing, automation, and control equipment. The IDC termination allows for fast and secure cable connections without soldering, improving assembly efficiency.
The 09185346803 model belongs to the SEK 18 series by HARTING, which conforms to industry standards including DIN41651, IEC 603-13, and MIL-C 83503, ensuring dependable performance in electronics and power connections. Its copper alloy contacts ensure mechanical stability and electrical integrity.
This product is an essential component in electronic assemblies, communication devices, and industrial control systems requiring compact, dense, and durable wiring solutions. 34 contacts in 2 rows suitable for multi-pin cable connections.
Current rating of 2.5 amperes and voltage rating of 320 volts AC. Gold-plated copper alloy contacts provide reliable conductivity and corrosion resistance. Polybutylene terephthalate housing with right angle cable mounting for installation flexibility.
Wide operating temperature from -55°C to 125°C suited for demanding environments. IDC termination for efficient cable connection without soldering. Conforms to DIN41651, IEC 603-13, MIL-C 83503 standards applicable for industrial use.
Explore more electronic connectors and cable accessories at EnvMart to fulfill all your connectivity needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This IDC connector has a current rating of 2.5 amperes and a voltage rating of 320 volts AC.
It operates within a temperature range of -55°C to 125°C, making it suitable for harsh environments.
The connector features 34 contacts arranged in 2 rows, designed for reliable cable termination.
The housing is made from polybutylene terephthalate (PBT), and the contacts are made of copper alloy with gold plating for enhanced conductivity and corrosion resistance.
It uses IDC (Insulation Displacement Contact) termination, which allows for quick and secure connections without soldering.
This model has a right angle orientation, which facilitates space-efficient cable mounting.
It complies with multiple standards including DIN41651, IEC 603-13, and MIL-C 83503, ensuring dependable performance in industrial applications.
The pitch of the contacts is 2.54mm, which is standard for IDC connectors.
The specifications do not explicitly mention suitability for outdoor use; however, it is designed for industrial applications, which may include outdoor environments depending on installation conditions.
This connector is a female type, designed for use with compatible male connectors.
Gold plating on the contacts ensures excellent conductivity and corrosion resistance, enhancing the reliability of electrical connections.
The country of origin for this connector is India.
