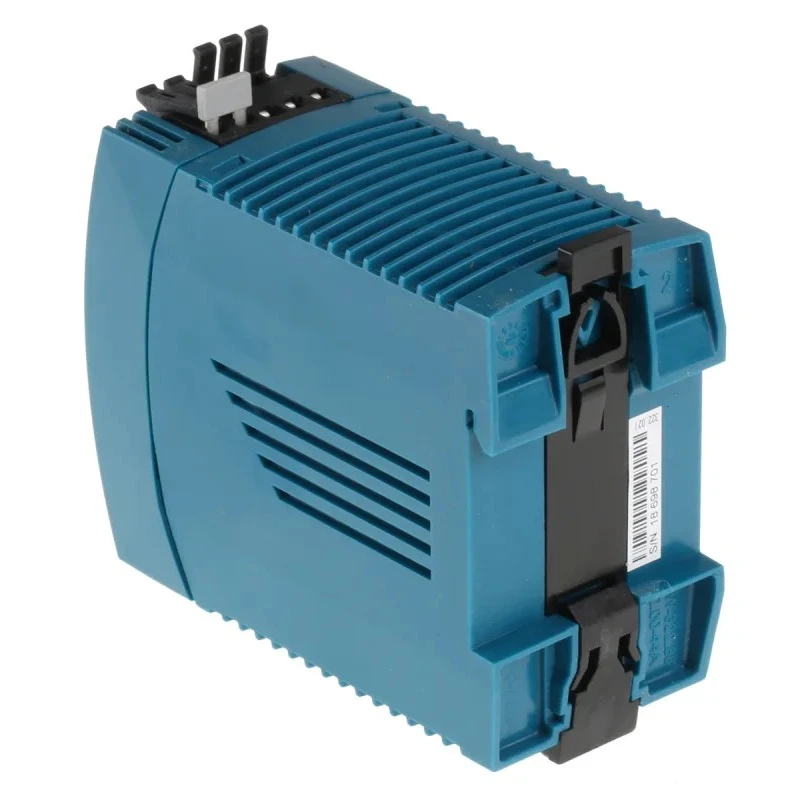

MEAN WELL MiniLine Switched Mode DIN Rail Power Supply 240V AC Input 12V DC Output 3A 30W ML30.102
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Power | 30W |
| Height | 75mm |
| Model | ML30.102 |
| Depth | 91mm |
| Width | 45mm |
| Series | MiniLine |
| Output Current | 3A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -10°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 240V ac |
| Electrical Phase | 1 |
| Standards/Approvals | VDE0100, EN50178, CE |
| Maximum Output Voltage | 12V dc |
| Minimum Input Voltage | 100V ac |
Key Features
- Compact size with dimensions 75mm height, 91mm depth, and 45mm width for easy DIN rail mounting.
- Wide operating temperature range from -10°C to 70°C suitable for industrial environments.
- High efficiency power supply with up to 84% efficiency and low ripple noise of 10mVpp.
- Equipped with Spring clamp terminals and no neutral wire needed for quick installation.
- Protected against overload and short circuit ensuring reliable operation.
- Output voltage adjustable between 10V and 12V DC via front panel potentiometer.
- Meets standards including VDE0100, EN50178, and CE certification.
- Designed for industrial control, automation, and communication equipment applications.
Product Description
MEAN WELL ML30.102 MiniLine switched mode DIN rail power supply offers a reliable and compact solution for power delivery in industrial and electronic control applications. It accepts an input voltage range from 100V AC up to 240V AC, ensuring wide compatibility with standard mains power supplies. The unit provides a stable 12V DC output voltage with a maximum current of 3A, delivering 30W rated power with high efficiency, reducing energy waste and heat generation.
The device is housed in a durable plastic casing with a fine ventilation grid that supports effective cooling. Its compact dimensions of 75mm (height), 91mm (depth), and 45mm (width) make it ideal for mounting on DIN rails in control panels and enclosures without compromising space.
With an operating temperature range from -10°C to 70°C, the power supply is well suited for demanding industrial environments. Spring clamp terminals are provided for quick, secure wiring without the need for a neutral wire installation. The output voltage is adjustable between 10V and 12V DC via a front panel potentiometer, allowing precise voltage setting for specific applications.
Additional protections include overload and short-circuit safeguards, enhancing operational safety and reliability. The power supply complies with recognized standards and certifications such as VDE0100, EN50178, CE, UL/cUL Recognised, and CSA Certified, ensuring quality and compliance with industrial safety requirements.
Typical applications include industrial control systems, automation, communication, and instrumentation equipment where stable and efficient power supply is critical. Compact size with dimensions 75mm height, 91mm depth, and 45mm width for easy DIN rail mounting.
Wide operating temperature range from -10°C to 70°C suitable for industrial environments. High efficiency Power Supply with up to 84% efficiency and low ripple noise of 10mVpp. Equipped with Spring clamp terminals and no neutral wire needed for quick installation.
Protected against overload and short circuit ensuring reliable operation. Output voltage adjustable between 10V and 12V DC via front panel potentiometer. Meets standards including VDE0100, EN50178, and CE certification. Designed for industrial control, automation, and communication equipment applications.
Explore more power supplies and related components for your industrial and electronic projects on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model accepts an input voltage range from 100V AC to 240V AC, making it compatible with standard mains power supplies.
The ML30.102 provides a maximum output current of 3A, delivering a stable 12V DC output.
This unit has compact dimensions of 75mm in height, 91mm in depth, and 45mm in width, suitable for DIN rail mounting.
It operates with an efficiency of up to 84%, which helps reduce energy waste and heat generation.
The power supply can operate within a wide temperature range from -10°C to 70°C, making it suitable for industrial environments.
The output voltage can be adjusted between 10V and 12V DC using a front panel potentiometer for precise voltage setting.
It is equipped with overload and short-circuit protection to enhance operational safety and reliability.
This model meets several standards including VDE0100, EN50178, and CE certification, ensuring quality and compliance with safety requirements.
It is equipped with spring clamp terminals, allowing for quick and secure wiring without the need for a neutral wire.
This power supply is designed for applications in industrial control, automation, and communication equipment where stable power is critical.
The maximum output voltage of the ML30.102 is 12V DC, providing reliable power for various applications.
The weight of this unit is not specified in the provided data. Please check with the manufacturer for detailed specifications.
