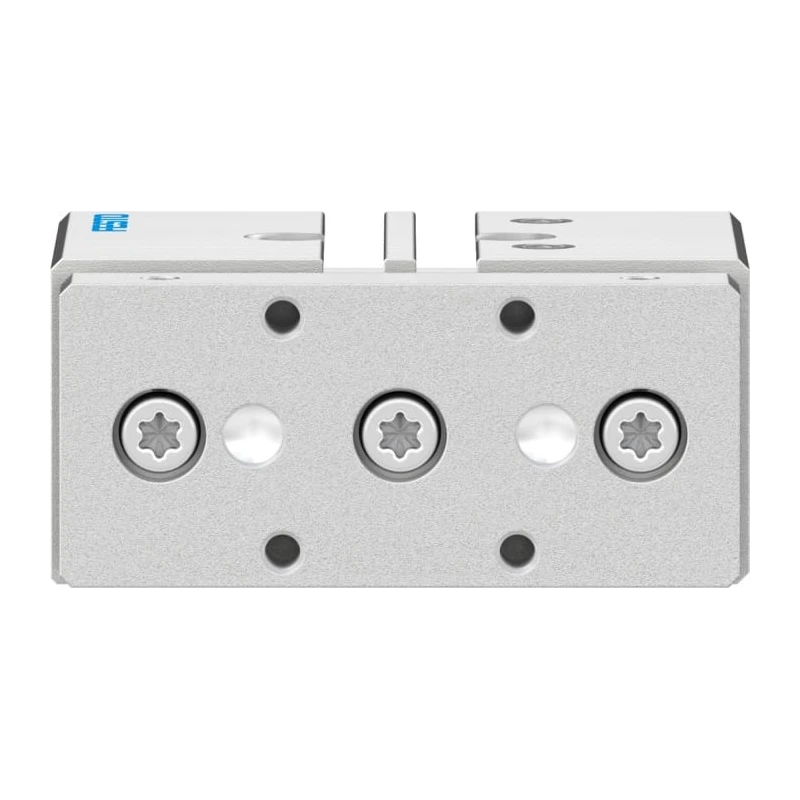

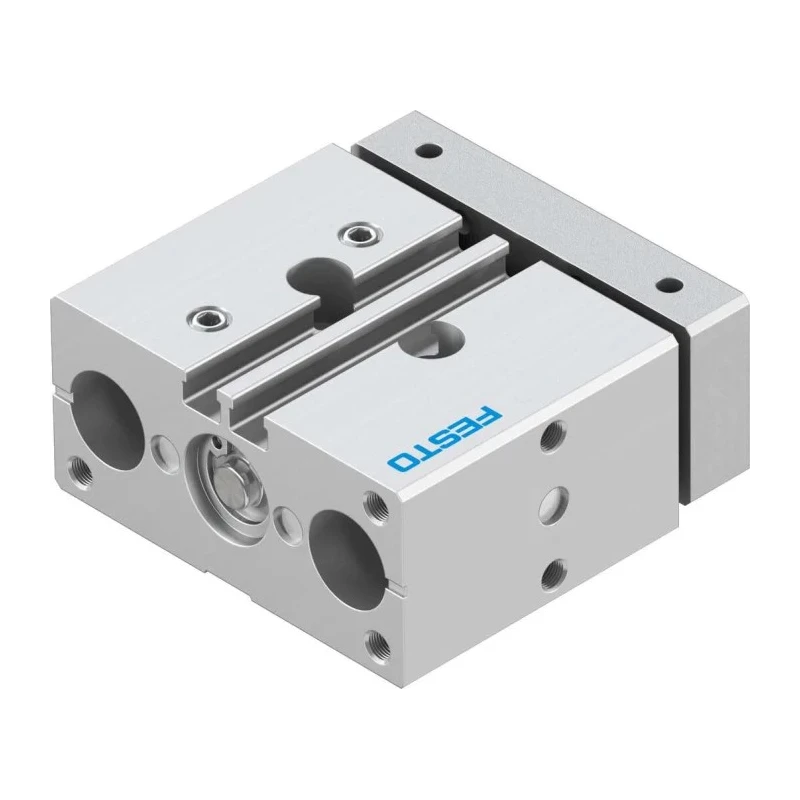

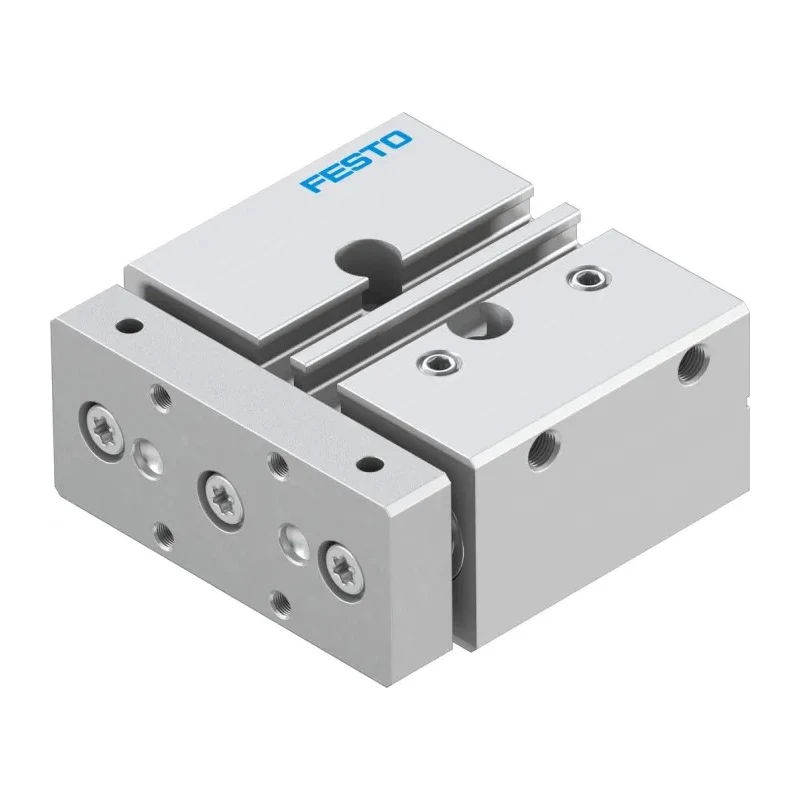

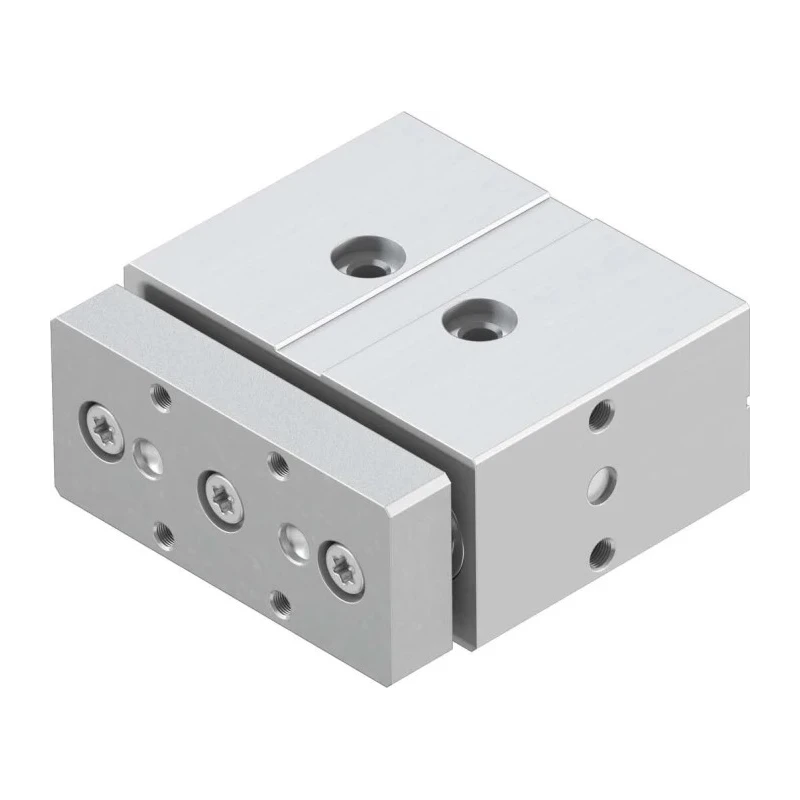

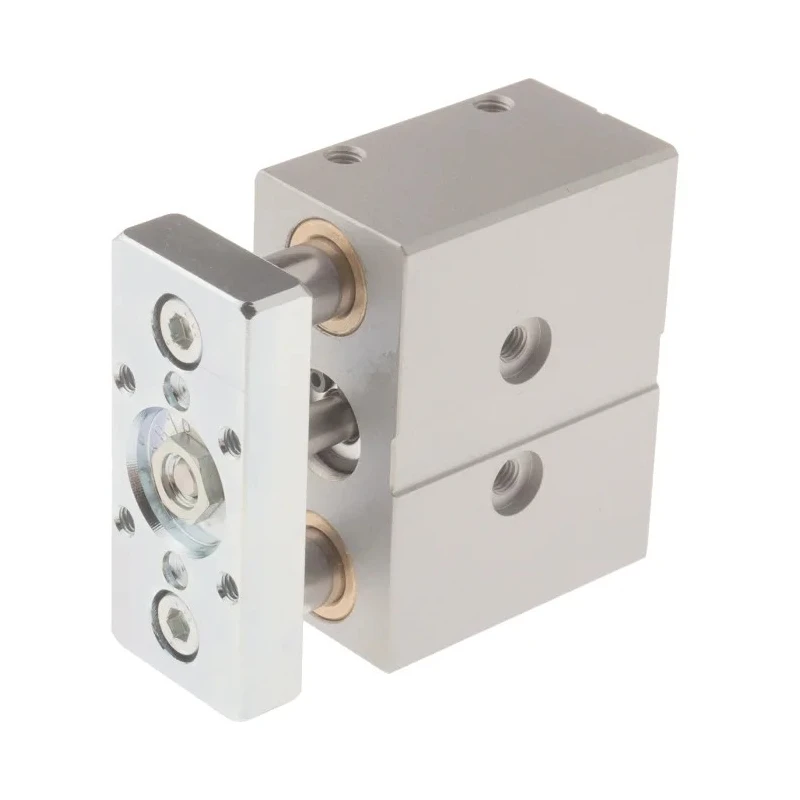

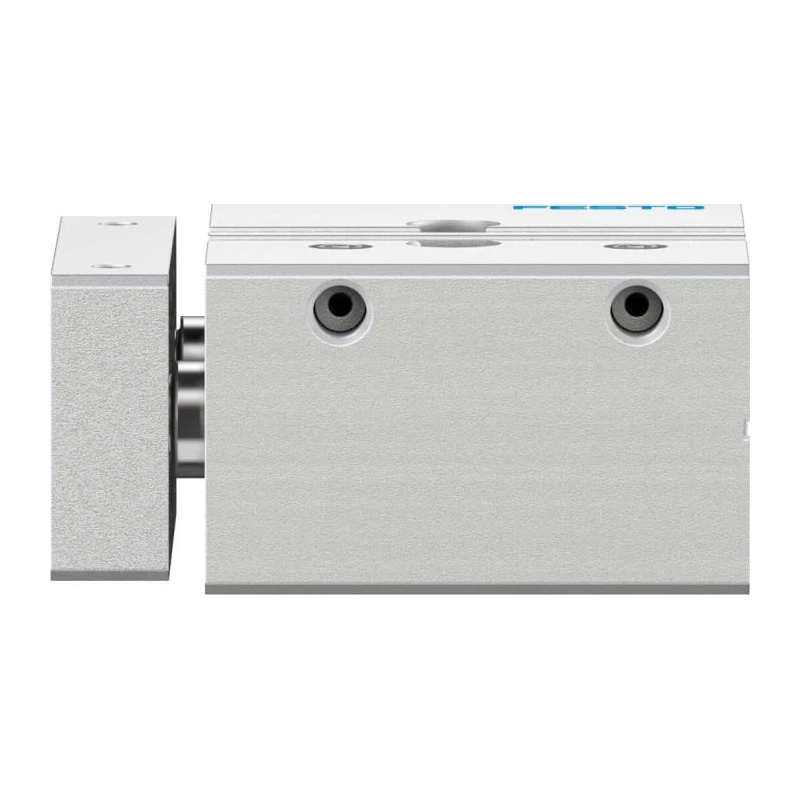

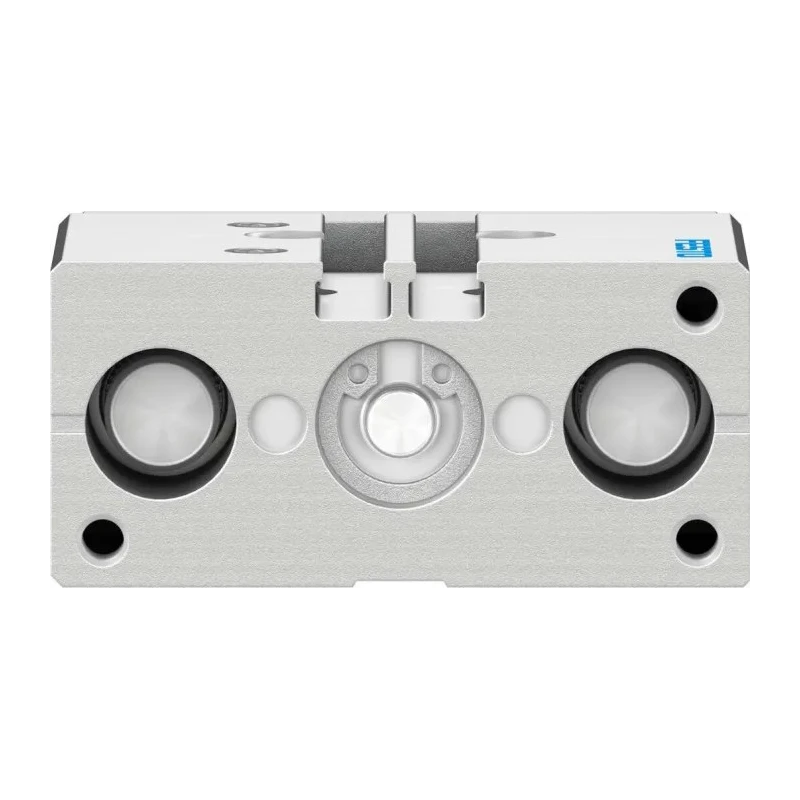

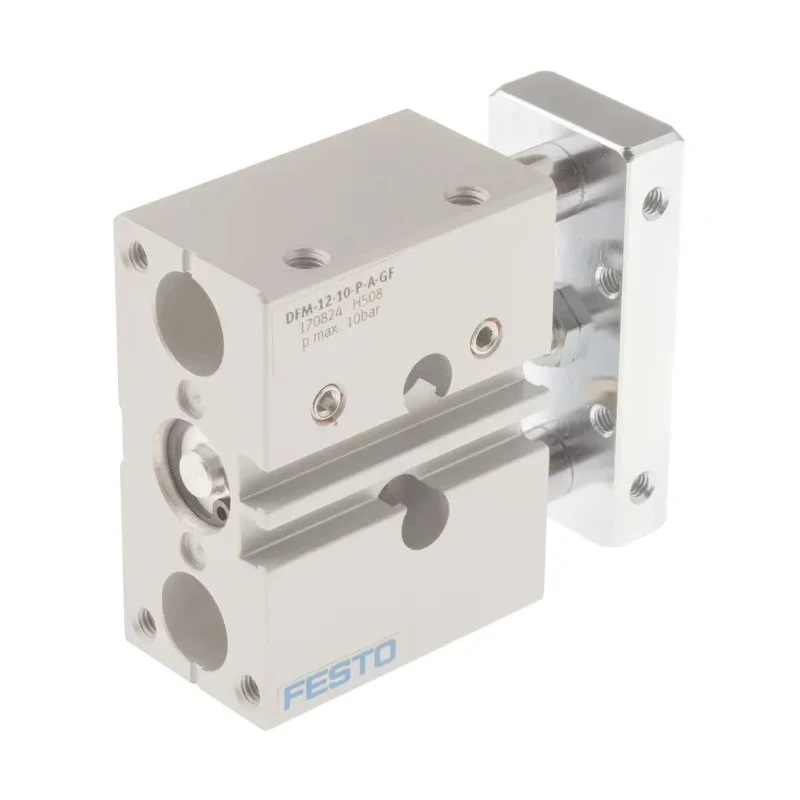

Festo Pneumatic Guided Cylinder 12mm Bore Double Acting Through Hole Mount 10 bar Max Pressure DFM-12-10-P-A-GF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Festo |
| Body Material | Wrought Aluminium Alloy |
| Maximum Operating Pressure | 10 bar |
| Height | 28mm |
| Length | 59mm |
| Model | DFM-12-10-P-A-GF |
| Gross Weight | 338g |
| Width | 60mm |
| Mount Type | Through Hole |
| Series | DFM |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Stroke Length | 10mm |
| Bore Diameter | 12mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | Cleanroom Class 6, VDMA24364-B1/B2-L, RoHS, ISO 8573-1:2010 (7:4:4) |
| Cushioning Type | Elastomer |
| Guide Type | Slide Bearing |
| Maximum Piston Speed | 0.8m/s |
| Piston Rod Thread Size | M5 |
| Standards/ApprovalsCleanroom Class 6, VDMA24364-B1/B2-L, RoHS, ISO 8573-1 | 2010 (7:4:4) |
Key Features
- This pneumatic guided cylinder features a single rod type with slide bearing guide for high load rigidity.
- Constructed with a wrought aluminium alloy body providing durability and resistance to torque and lateral forces.
- Maximum piston speed is 0.8 meters per second, suitable for precise and controlled movements.
- Elastomer cushioning plates minimize noise and extend service life during operation.
- It supports multiple mounting options including through hole mount for versatile installation.
- Operating temperature range is -20°C to 80°C, allowing use in varied environments.
- The piston rod thread size is M5 with pneumatic ports featuring standardised M5 threading.
- The cylinder weighs approximately 338 grams, providing a lightweight and compact design.
Product Description
Festo DFM-12-10-P-A-GF pneumatic guided cylinder is a precision-engineered, double acting pneumatic actuator designed for industrial automation and control applications. The cylinder has a 12mm bore diameter and a 10mm stroke length, providing reliable force and compact actuation. It operates under a maximum pressure of 10 bar and achieves piston speeds up to 0.8 m/s.
This model integrates both drive and guide units within a single housing, which protects moving parts and reduces maintenance requirements. The body is made of wrought aluminium alloy for strength and lightness, with a slide bearing guide to withstand heavy loads and lateral forces. Elastic cushioning plates reduce operational noise and increase durability.
Designed to operate in temperatures ranging from -20°C to 80°C, it is suitable for challenging industrial environments including automation production lines, material handling, and clamping processes. The cylinder has multiple mounting options including through hole mount and features a single rod type with M5 threaded piston rod and pneumatic ports for broad compatibility.
Conformance with Cleanroom Class 6, VDMA24364-B1/B2-L, RoHS, and ISO 8573-1:2010 ensures quality, safety, and environmental standards compliance. Its compact dimensions (Length 59mm, Width 60mm, Height 28mm) and lightweight design (338g) facilitate easy integration into existing systems.
This pneumatic guided cylinder operates double acting with M5 pneumatic ports for accurate piston extension and retraction. Wrought aluminium alloy construction combined with slide bearing guide rods ensures high rigidity and long service life.
Elastic cushioning reduces noise and wear during operation. Wide operating temperature range (-20°C to 80°C) supports diverse industrial environments. Designed for applications in automation, industrial processing, and production lines.
Compact size and lightweight facilitate easy mounting and integration. Explore more Pneumatic Guided Cylinders and actuators within the pneumatic and hydraulic tools category at EnvMart for reliable industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this pneumatic guided cylinder is 10 bar.
This model has a stroke length of 10mm.
The bore diameter of this pneumatic actuator is 12mm.
The maximum piston speed is 0.8 meters per second.
The dimensions are 59mm in length, 60mm in width, and 28mm in height.
It supports multiple mounting options, including a through hole mount.
The operating temperature range is from -20°C to 80°C.
It utilizes elastomer cushioning plates to minimize noise and extend service life.
The body is constructed from wrought aluminium alloy, providing strength and lightness.
It complies with Cleanroom Class 6, VDMA24364-B1/B2-L, RoHS, and ISO 8573-1:2010 standards.
This pneumatic cylinder operates as a double acting actuator.
The piston rod thread size is M5, which is standardized for compatibility.
